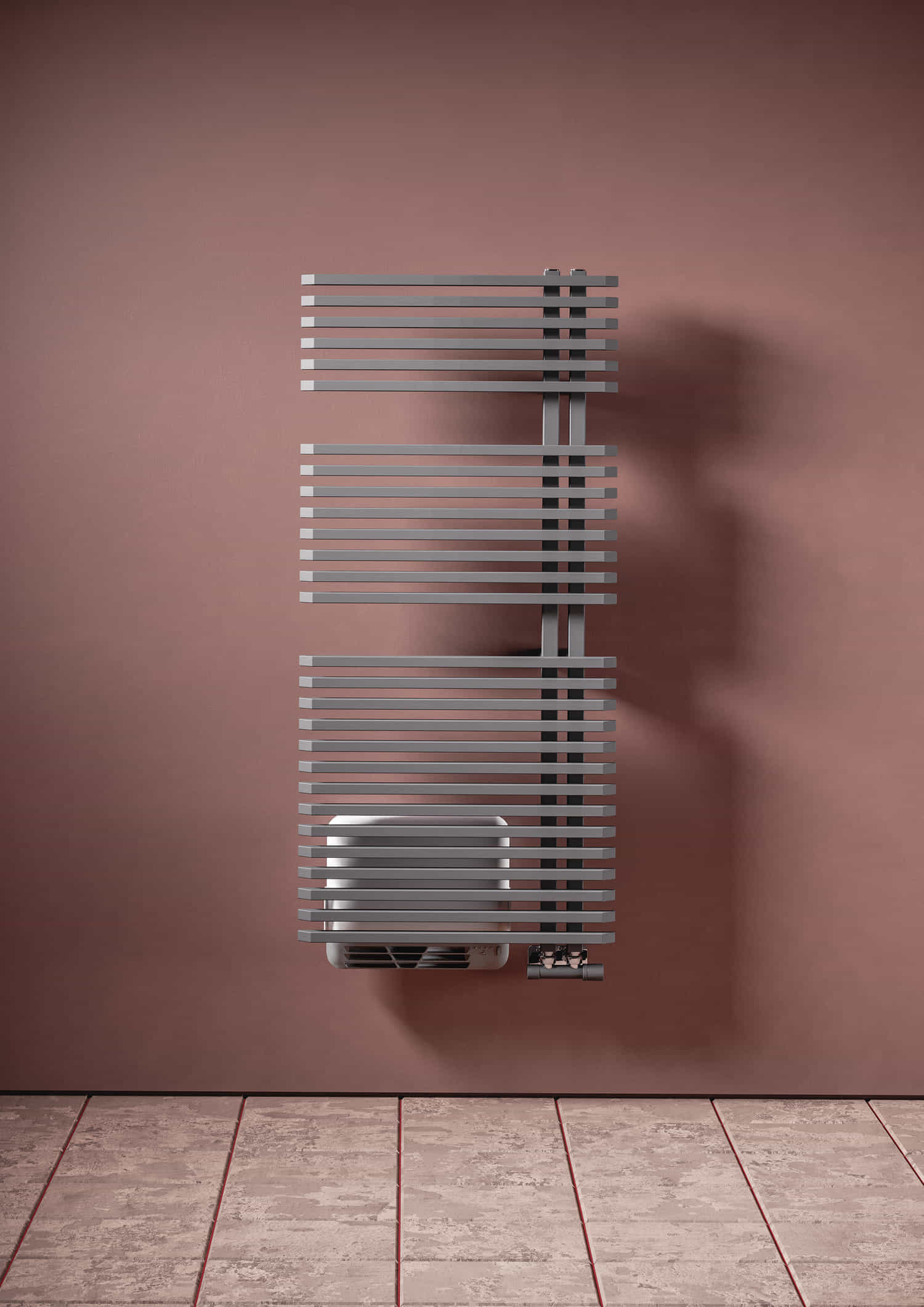

A harmony of forms full of technique and improvisation coming from two different sensibilities, JAZZ AI MIX is an extremely versatile towel warmer. Strictly squared in its sober and essential shape, it well represents the contemporary trend.
Construction features
steel towel radiator
horizontal elements 25x20 mm rectangular steel tubes
steel square collectors 30 x 30 mm section
end manifolds threading 1/2 “Gas right
maximum working pressure of 4 bar
maximum working temperature 95°C
hydraulic radiator equipped with a booster mounted behind the radiator with a power of 1,000 Watts
not suitable for installation with a single-pipe system
Colors and Finishes
Related Accessories
| Model | Deph (mm) | Height (mm) | Width (mm) | Conn. C. (mm) | Weigth (kg) | Capacity (lt) | Δt=50°C (btu/h) | Δt=50°C (kcal/h) | Δt=50°C (Watt) | Δt=40°C (Watt) | Δt=30°C (Watt) | Δt=20°C (Watt) | Exponent | Electric Power with Booster (Watt) | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DX | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 890 18 rails 2 espaces | 124,0 | 927 | 600 | 50 | 12,70 | 5,70 | 1.713,0 | 346,0 | 502,0 | 384,0 | 271,0 | 166,0 | 1,206 | 1000 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 1290 28 rails 2 espaces | 124,0 | 1327 | 600 | 50 | 18,00 | 8,70 | 2.494,0 | 608,0 | 731,0 | 557,0 | 392,0 | 239,0 | 1,219 | 1000 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 1770 38 rails 3 espaces | 124,0 | 1807 | 600 | 50 | 23,60 | 11,80 | 3.279,0 | 864,0 | 961,0 | 727,0 | 507,0 | 305,0 | 1,253 | 1000 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| SX | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 890 18 rails 2 espaces | 124,0 | 927 | 600 | 50 | 12,70 | 5,70 | 1.713,0 | 346,0 | 502,0 | 384,0 | 271,0 | 166,0 | 1,206 | 1000 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 1290 28 rails 2 espaces | 124,0 | 1327 | 600 | 50 | 18,00 | 8,70 | 2.494,0 | 608,0 | 731,0 | 557,0 | 392,0 | 239,0 | 1,219 | 1000 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 1770 38 rails 3 espaces | 124,0 | 1807 | 600 | 50 | 23,60 | 11,80 | 3.279,0 | 864,0 | 961,0 | 727,0 | 507,0 | 305,0 | 1,253 | 1000 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Thanks to the high performance of Irsap JAZZ AIR MIX radiators, the ideal Δt for low temperature projects is Δt at 30°C.
For Δt different from 50°C use the formula Q=Qn (Δt / 50)n
Standard equipment
• 4 wall fixing in the same color as the radiator • 2 1/2” hidden airvents complete with valve cover
