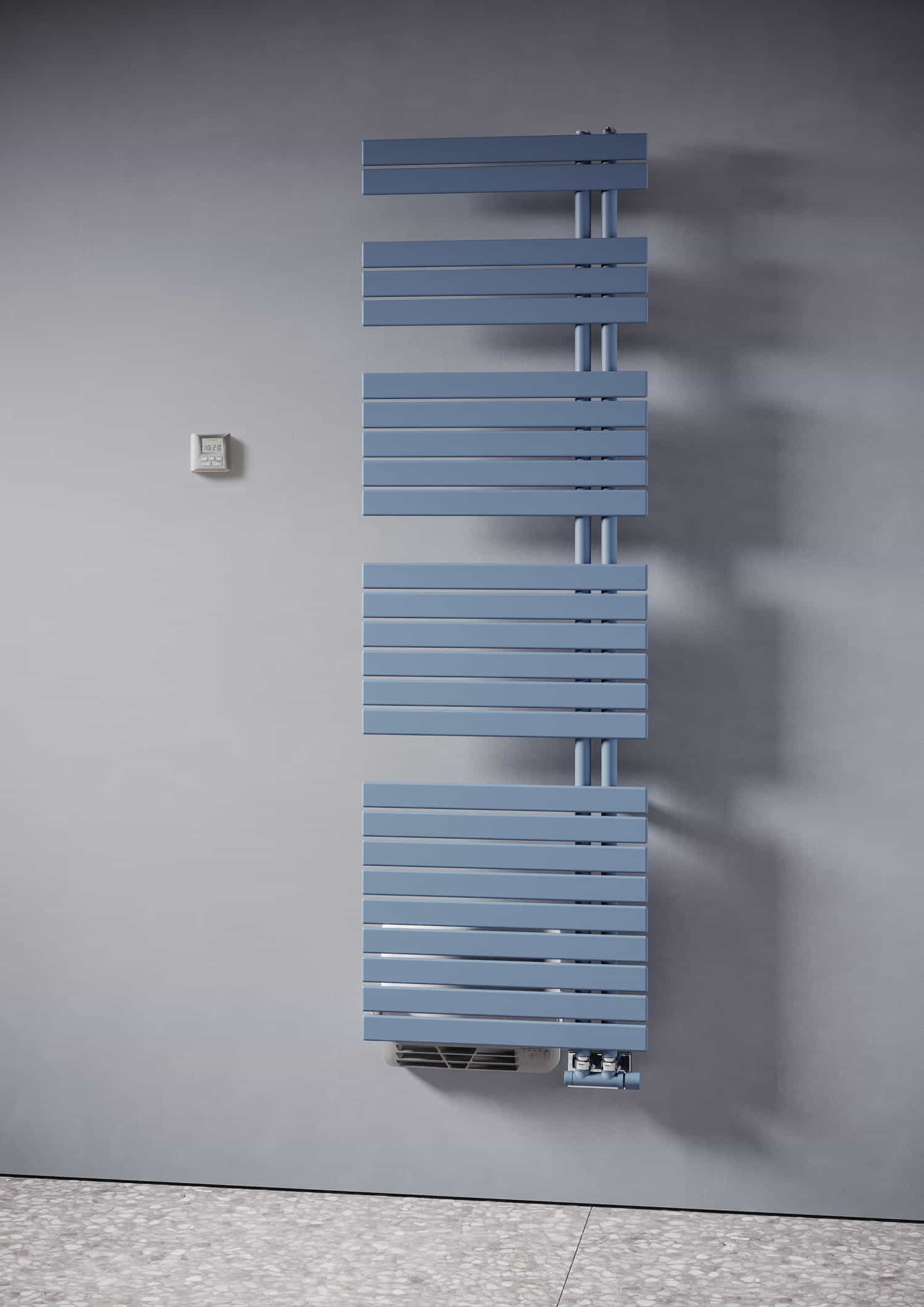

Light, minimal and essential, SOUL reinterprets any environment. Its linear perspectives are the expression of the evolution, fascinating encounter between a round collector and a flat profile, able to influence and characterize the bathroom’s environment enhancing its personality.
Construction features
steel towel warmer radiator with horizontal elements featuring rectangular 50x10 mm section tubes - side round manifolds with a 30 mm diameter
manifold threading 1/2” Gas right
maximum working pressure 4 bar
maximum working temperature 95°C
50 mm connection
hydraulic radiator equipped with a booster mounted behind the radiator with a power of 1,000 watts
not suitable for installation with a single-pipe system
Colors and Finishes
Related Accessories
| Model | Deph (mm) | Height (mm) | Width (mm) | Conn. C. (mm) | Weigth (kg) | Capacity (lt) | Δt=50°C (btu/h) | Δt=50°C (kcal/h) | Δt=50°C (Watt) | Δt=40°C (Watt) | Δt=30°C (Watt) | Δt=20°C (Watt) | Exponent | Electric Power with Booster (Watt) | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DX | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 1054 14 rails 3 espaces | 110,0 | 1094 | 550 | 50 | 12,10 | 3,90 | 1.631,0 | 411,0 | 478,0 | 362,0 | 253,0 | 152,0 | 1,249 | 1000 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 1418 19 rails 4 espaces | 110,0 | 1458 | 550 | 50 | 15,40 | 5,30 | 2.160,0 | 544,0 | 633,0 | 479,0 | 334,0 | 201,0 | 1,253 | 1000 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 1754 25 rails 4 espaces | 110,0 | 1794 | 550 | 50 | 19,30 | 6,80 | 2.801,0 | 706,0 | 821,0 | 621,0 | 433,0 | 261,0 | 1,252 | 1000 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| SX | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 1054 14 rails 3 espaces | 110,0 | 1094 | 550 | 50 | 12,10 | 3,90 | 1.631,0 | 411,0 | 478,0 | 362,0 | 253,0 | 152,0 | 1,249 | 1000 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 1418 19 rails 4 espaces | 110,0 | 1458 | 550 | 50 | 15,40 | 5,30 | 2.160,0 | 544,0 | 633,0 | 479,0 | 334,0 | 201,0 | 1,253 | 1000 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 1754 25 rails 4 espaces | 110,0 | 1794 | 550 | 50 | 19,30 | 6,80 | 2.801,0 | 706,0 | 821,0 | 621,0 | 433,0 | 261,0 | 1,252 | 1000 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Thanks to the high performance of Irsap Soul Air Mix radiators, the ideal Δt for low temperature projects is Δt at 30°C.
For Δt different from 50°C use the formula Q=Qn (Δt / 50)n.
Standard equipment
• 4 wall fixing in the same color as the radiator • 2 1/2” hidden airvents complete with valve cover
