Arpa 23 Vertical

The ability to size the radiator with the highest level of flexibility and style. The ARPA 23 radiator represents a practical solution for every thermal power requirement. ARPA 23 Vertical is available in 14 heights, from 4 to 40 elements and thermal powers from 104 to 3272 Watt.

The images on this page have the sole purpose of depicting the product. Finishes and models may not have a perfect match with the actual product.

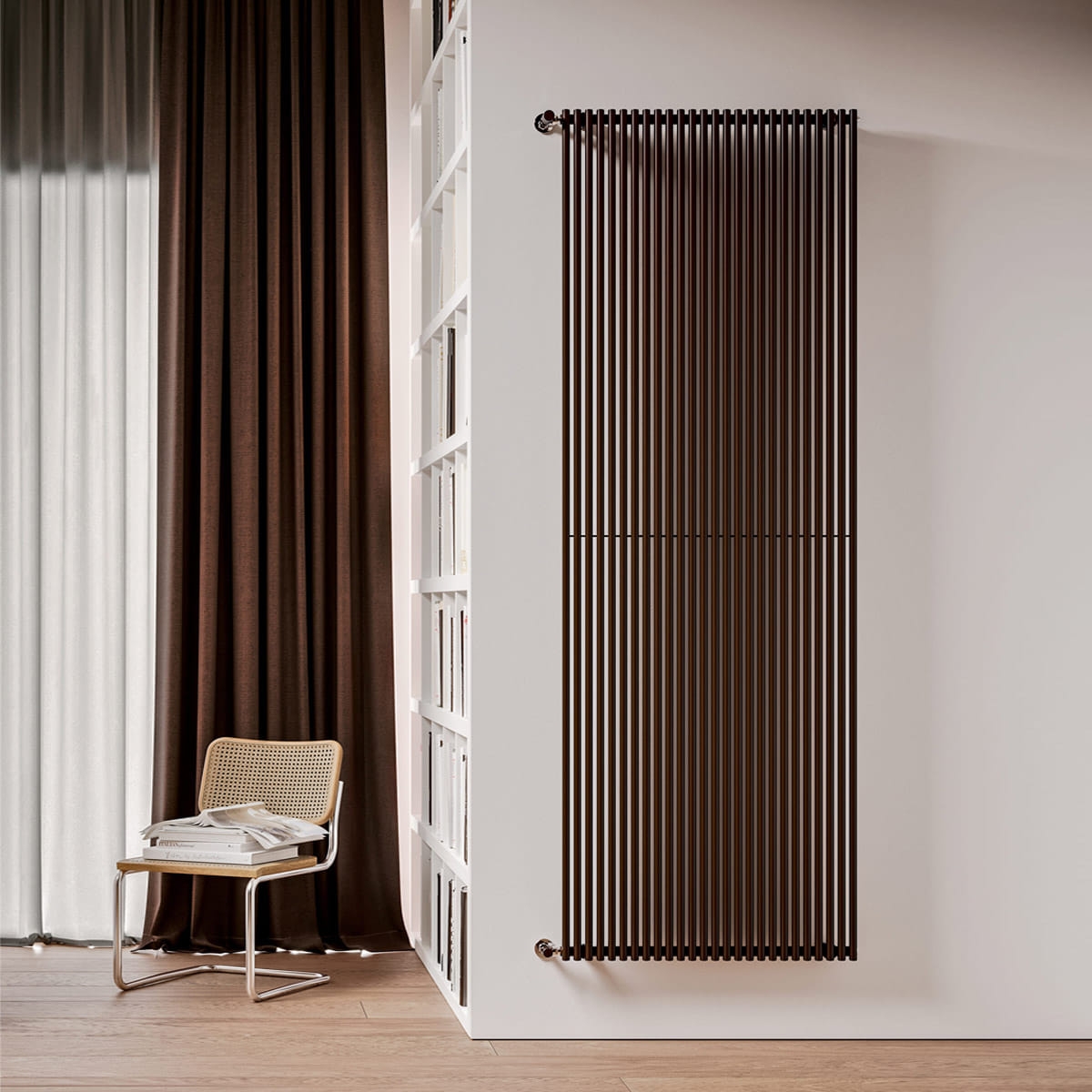

Arpa 23, Vertical, 26 elements, Hight 2020 mm, Lenght 878 mm, Brown - RAL 8017 Arpa 23, Vertical, 26 elements, Hight 2020 mm, Lenght 878 mm, Brown - RAL 8017, (detail)
Loading...
Salvataggio in corso...

Configure your ARPA

Loader Loading...
Finishes and models represented are not to be considered binding and may not have a perfect correspondence with the delivered product.

Configure your ARPA

Arpa 12 Vertical
Arpa 12_2 Vertical
Arpa 18 Vertical
Arpa 18_2 Vertical
Arpa 23 Vertical
Arpa 23_2 Vertical
Choose most used
Cancel selection
Connection top/bottom with angle valve
Connection left/right with angle valve
50mm connection with angle valve
Select valve finish
Select wall
Select floor
Dark travertine
Light travertine
Tiles
Mahogany
Oak
Wooden Planks

-

Thermal power

Discover accessories

APPUFIORE APPUTONDO ASTEUTONDO20
VALKROSQUCU VALKRODIRCU VALKRO50SQUCU VALKRO50DIRCU VALKROSALVCU VALKROSQMIST KITMONESC TESTELIQ3
VALKITCOPTU VALKITCOPT
ATTCHE430
AMENSPAVPA

Construction features

  • round section manifold, 30 mm diameter
  • 23 mm diameter steel round pipes
  • threading at the ends of the manifolds, right G 1/2”
  • maximum working pressure 8 bar
  • maximum working temperature 95°C
Arpa 23 Vertical

Model Depth (mm) Height (mm) Conn. centre (mm) Weight (kg) Capacity (lt) Exponent
520 50,0 520 470 0,46 0,20 89,1 22,5 26,1 19,8 13,8 8,3 1,249
550 50,0 550 500 0,48 0,20 93,5 23,6 27,4 20,7 14,5 8,7 1,251
650 50,0 650 600 0,55 0,24 107,8 27,2 31,6 23,9 16,6 10,0 1,257
670 50,0 670 620 0,56 0,24 110,9 28,0 32,5 24,6 17,1 10,3 1,258
700 50,0 700 650 0,58 0,25 115,0 29,0 33,7 25,4 17,7 10,6 1,259
750 50,0 750 700 0,62 0,27 122,1 30,8 35,8 27,0 18,8 11,3 1,262
850 50,0 850 800 0,69 0,30 136,5 34,4 40,0 30,1 20,9 12,5 1,268
870 50,0 870 820 0,70 0,31 139,2 35,1 40,8 30,7 21,3 12,8 1,269
920 50,0 920 870 0,74 0,33 146,0 36,8 42,8 32,2 22,4 13,4 1,269
1220 50,0 1220 1170 0,95 0,42 187,3 47,2 54,9 41,3 28,7 17,1 1,271
1520 50,0 1520 1470 1,16 0,52 227,6 57,4 66,7 50,2 34,8 20,8 1,273
1820 50,0 1820 1770 1,37 0,62 267,5 67,4 78,4 58,8 40,6 24,1 1,287
2020 50,0 2020 1970 1,50 0,69 293,8 74,1 86,1 64,5 44,4 26,3 1,296
2520 50,0 2520 2470 1,85 0,85 359,3 90,6 105,3 79,1 54,8 32,6 1,280

Thanks to the high performance of Irsap ARPA 23 Vertical radiators, the ideal Δt for low temperature projects is Δt at 30°C.

For Δt different from 50°C use the formula: Q=Qn (Δt / 50)n

Standard equipment
  • wall fixing systems with screws and anchors
  • 1/2” blind plug
  • piper cover kit
  • 1/2” air vent

L
= Length (mm)
E
= N° Elem.
L Length (mm) E N° Elem.   520 550 650 670 700 750 850 870 920 1220 1520 1820 2020 2520
130 4 Watt =   W =  104 110 126 130 135 143 160 163 171 220 267 314 344 421
198 6 Watt =   W =  157 164 190 195 202 215 240 245 257 329 400 470 517 632
266 8 Watt =   W =  209 219 253 260 270 286 320 326 342 439 534 627 689 842
334 10 Watt =   W =  261 274 316 325 337 358 400 408 428 549 667 784 861 1053
402 12 Watt =   W =  313 329 379 390 404 430 480 490 514 659 800 941 1033 1264
470 14 Watt =   W =  365 384 442 455 472 501 560 571 599 769 934 1098 1205 1474
538 16 Watt =   W =  418 438 506 520 539 573 640 653 685 878 1067 1254 1378 1685
606 18 Watt =   W =  470 493 569 585 607 644 720 734 770 988 1201 1411 1550 1895
674 20 Watt =   W =  522 548 632 650 674 716 800 816 856 1098 1334 1568 1722 2106
742 22 Watt =   W =  574 603 695 715 741 788 880 898 942 1208 1467 1725 1894 2317
810 24 Watt =   W =  626 658 758 780 809 859 960 979 1027 1318 1601 1882 2066 2527
878 26 Watt =   W =  679 712 822 845 876 931 1040 1061 1113 1427 1734 2038 2239 2738
946 28 Watt =   W =  731 767 885 910 944 1002 1120 1142 1198 1537 1868 2195 2411 2948
1014 30 Watt =   W =  783 822 948 975 1011 1074 1200 1224 1284 1647 2001 2352 2583 3159
1082 32 Watt =   W =  835 877 1011 1040 1078 1146 1280 1306 1370 1757 2134 2509 2755 -
1150 34 Watt =   W =  887 932 1074 1105 1146 1217 1360 1387 1455 1867 2268 2666 2927 -
1218 36 Watt =   W =  940 986 1138 1170 1213 1289 1440 1469 1541 1976 2401 2822 3100 -
1286 38 Watt =   W =  992 1041 1201 1235 1281 1360 1520 1550 1626 2086 2535 2979 3272 -
1354 40 Watt =   W =  1044 1096 1264 1300 1348 1432 1600 1632 1712 2196 2668 3136 - -
