Dedalo Electric

Continuous geometry that enhances your environment with a refined search for details: DEDALO Electric. The LED light (in the model with light) creeps into the spaces, forming plays of light and shadow. Available in two models, DEDALO P and DEDALO L, with two thermal powers.

The images on this page have the sole purpose of depicting the product. Finishes and models may not have a perfect match with the actual product.

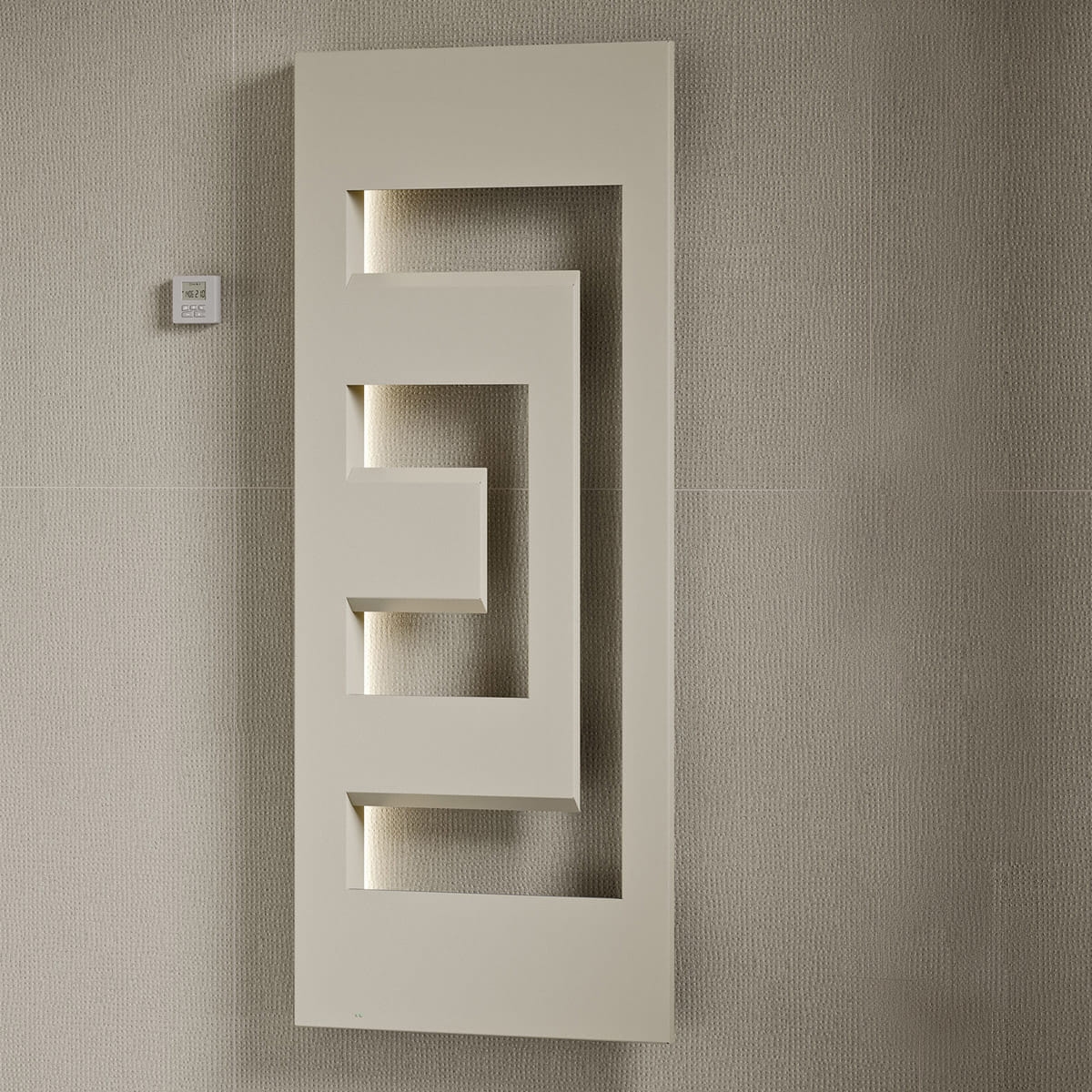

Dedalo Elettrico, Hight 1600 mm, Lenght 660 mm, Sablé Dedalo Elettrico, Hight 1600 mm, Lenght 660 mm, Sablé, (detail)
Loading...
Salvataggio in corso...

Configure your Dedalo Electric

Configure your Dedalo Electric

-

Electric power

Construction features

  • electric radiating panel
  • heater heating system
  • electrical power development: Dedalo P (h 900 mm) 300 Watt, Dedalo L (h 1600 mm) 700 Watt
  • wireless digital electronic control featuring weekly program
  • class insulation II, IP44
  • long electricity cable: 1.200 mm, lower left side cable outlet, SCHUKO plug
Dedalo Electric

Model Depth (mm) Height (mm) Width (mm) Weight (kg) Electric Power (Watt)
Dedalo Electric 90,0 900 498 17,20 300
Dedalo Electric with led 90,0 900 498 17,20 300
Dedalo Electric 90,0 1600 660 22,50 700
Dedalo Electric with led 90,0 1600 660 22,50 700
Standard equipment
  • wall system connection
  • wireless receiver integrated on the plate with 2 leds to signal the function mode
  • programmable wireless digital transmitter
  • LED lighting system optional

Type Description Document Downloads

Technical document

Catalogs

Catalog 2023 Catalog 2023

Catalogs

Color chart Color chart

User manual

FOISTR0643M FOISTR0643M

Installation Manual

FOISTR0567M FOISTR0567M

Installation Manual

FOISTR0540M FOISTR0540M

Installation Manual

FOISTR0478M FOISTR0478M

Manual

FOISTR1021M FOISTR1021M

Manual

FOISTR1394M FOISTR1394M

The Designer

Synthesis Design

Synthesis design was born in Torino in 1988 with Carlo and Giorgio Gaino as its founding partners. The studio has been working for years in the automotive, nautical and product design sector, and has worked with companies like Fiat Auto, Maserati, De Tomaso, Alfa Romeo, Lancia, Nissan, Lamborghini, Bugatti and Matra in car design, designing (among others) the Maserati Barchetta, the De Tomaso Guarà and the Lancia ECV II. In product design, Synthesis has worked with Jacuzzi, Segafredo, Manconi, Video System and La San Marco. Close cooperation with the company has led to the development of unprecedented technological systems that harmonize the insertion of radiators in the room while simplifying installation at the same tine. The approach to design at the heart of the projects developed for Irsap: EVO, DEDALO, TRATTO, SAX and NET is a combination of creativity, experimentation with materials and a careful study of form and perception. Strong personality speaks to the senses with plays of light and shimmering finishes that also stimulate the sensation of touch in décor objects that complete interiors with a theatrical ambience in which the technical article and the technological system become protagonists in interior design.

Synthesis Design

Calculate the power

How to choose the Dedalo Electric radiator for your home? How to know what is the right power to heat each room? Online heat demand allows you to identify the most suitable radiator for your living space
