Ellipsis_B

The ELLIPSIS_B towel warmer is ideal for refined environments. With its versatility, it transforms the space becoming the absolute protagonist of every style of furniture. ELLIPSIS_B is available in 4 heights and 4 widths. With the insertion of the electric resistance (optional) it can work even in periods when the system is off.

The images on this page have the sole purpose of depicting the product. Finishes and models may not have a perfect match with the actual product.

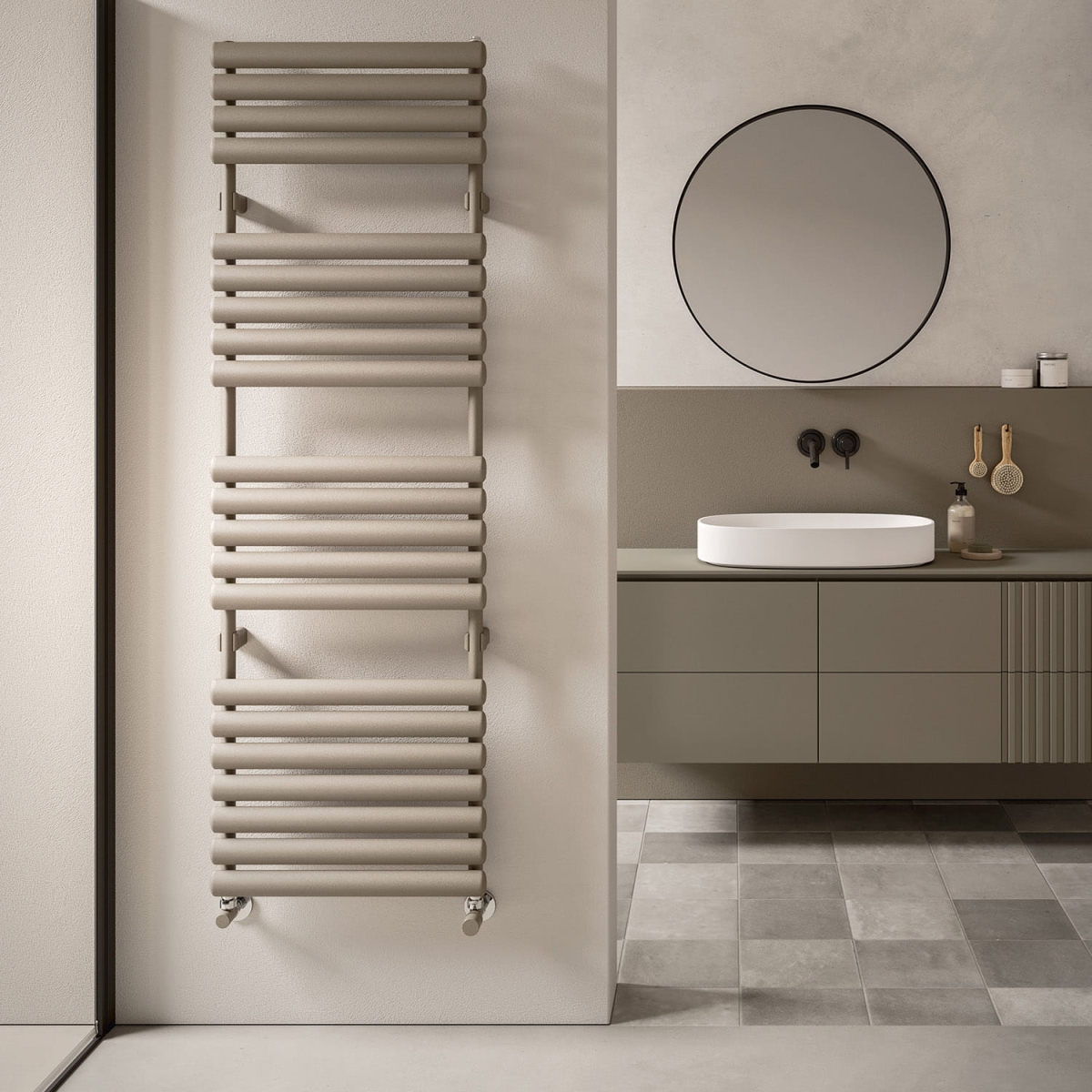

Ellipsis B, Hight 1620 mm, Lenght 600 mm, Sunstone Ellipsis B, Hight 1620 mm, Lenght 600 mm, Sunstone, (detail) Ellipsis B, Hight 1620 mm, Lenght 500 mm, Tobacco Brown Ellipsis B, Graphite Black, (detail)
Loading...
Salvataggio in corso...

Configure your Ellipsis_B

Configure your Ellipsis_B

840 12 rails 1 espaces
1200 16 rails 2 espaces
1620 21 rails 3 espaces
1860 25 rails 3 espaces
Choose most used
Cancel selection
Connection left/right with angle valve
50mm connection with angle valve
Select valve finish

-

Thermal power

Discover accessories

APPUFIORE APPUQUADRO APPUTONDO ASTEUTONDO20 ASTEUQUAD20
VALKROSQUCU VALKRODIRCU VALKRO50SQUCU VALKRO50DIRCU VALKROSALVCU VALKROSQMIST TESTELIQ3
ATTCHE430
VALKITCOPTU VALKITCOPT
ANRES700WDI ANRE0700KSP ANRE0700HSP REELETTRASM ATRACTFMF

Construction features

  • steel tower warmer radiator
  • horizontal elements featuring elliptical tubes 50x25 mm
  • side manifolds with 30 mm round section
  • manifold threading 1/2” Gas right
  • maximum working pressure 4 bar
  • maximum working temperature 95°C
Ellipsis_B

Model Depth (mm) Height (mm) Width (mm) Conn. centre (mm) Weight (kg) Capacity (lt) Exponent Mixed Function (Watts)
840 12 rails 1 espaces 53,0 840 400 350 7,20 4,60 1.106,5 278,9 324,3 246,1 172,4 104,4 1,237 300
840 12 rails 1 espaces 53,0 840 500 450 8,58 5,56 1.343,3 338,6 393,7 299,6 210,7 128,3 1,223 400
840 12 rails 1 espaces 53,0 840 600 550 9,96 6,52 1.580,1 398,3 463,1 353,5 249,6 152,9 1,210 400
840 12 rails 1 espaces 53,0 840 750 700 12,03 7,96 1.935,3 487,8 567,2 435,0 309,0 190,8 1,189 700
1200 16 rails 2 espaces 53,0 1200 400 350 10,10 6,30 1.560,6 393,4 457,4 344,0 238,2 141,9 1,277 400
1200 16 rails 2 espaces 53,0 1200 500 450 11,84 7,56 1.875,1 472,6 549,6 414,8 288,7 173,2 1,260 400
1200 16 rails 2 espaces 53,0 1200 600 550 13,58 8,82 2.189,5 551,9 641,7 486,2 340,0 205,4 1,243 700
1200 16 rails 2 espaces 53,0 1200 750 700 16,19 10,71 2.661,2 670,8 780,0 594,3 418,6 255,5 1,218 700
1620 21 rails 3 espaces 53,0 1620 400 350 13,10 8,30 2.066,6 520,9 605,7 459,6 322,1 195,1 1,237 400
1620 21 rails 3 espaces 53,0 1620 500 450 15,38 9,94 2.487,6 627,0 729,1 553,3 387,7 234,8 1,236 700
1620 21 rails 3 espaces 53,0 1620 600 550 17,66 11,58 2.908,5 733,1 852,4 646,9 453,3 274,6 1,236 700
1620 21 rails 3 espaces 53,0 1620 750 700 21,08 14,04 3.539,8 892,2 1.037,5 787,4 551,8 334,3 1,236 1000
1860 25 rails 3 espaces 53,0 1860 400 350 15,10 9,80 2.406,8 606,6 705,4 531,1 368,3 219,9 1,272 700
1860 25 rails 3 espaces 53,0 1860 500 450 17,92 11,78 2.885,3 727,2 845,6 638,9 445,1 267,4 1,256 700
1860 25 rails 3 espaces 53,0 1860 600 550 20,74 13,76 3.363,7 847,8 985,8 747,4 523,1 316,3 1,241 1000
1860 25 rails 3 espaces 53,0 1860 750 700 24,97 16,73 4.081,3 1.028,7 1.196,2 911,7 642,4 392,1 1,217 1000

Thanks to the high performance of Irsap ELLIPSIS_B radiators, the ideal Δt for low temperature projects is Δt at 30°C.

For Δt different from 50°C use the formula: Q=Qn (Δt / 50)n

Standard equipment
  • 4 adjustable wall fixing brackets in the same color of the radiator
  • 1/2" air vent
