Relax Immagina

The radiating body is a sculpture on the wall; the infinite solutions are accomplices. Integration into the field of vision is achieved by blending in with the finish. The purity of the line is not an end in itself but rather dictated by the shape that becomes body, light, and color before changing into heat. Available in two models, RELAX IMMAGINA S and RELAX IMMAGINA L, with two thermal powers and with luminous LEDs in a chromatic sequence.

The images on this page have the sole purpose of depicting the product. Finishes and models may not have a perfect match with the actual product.

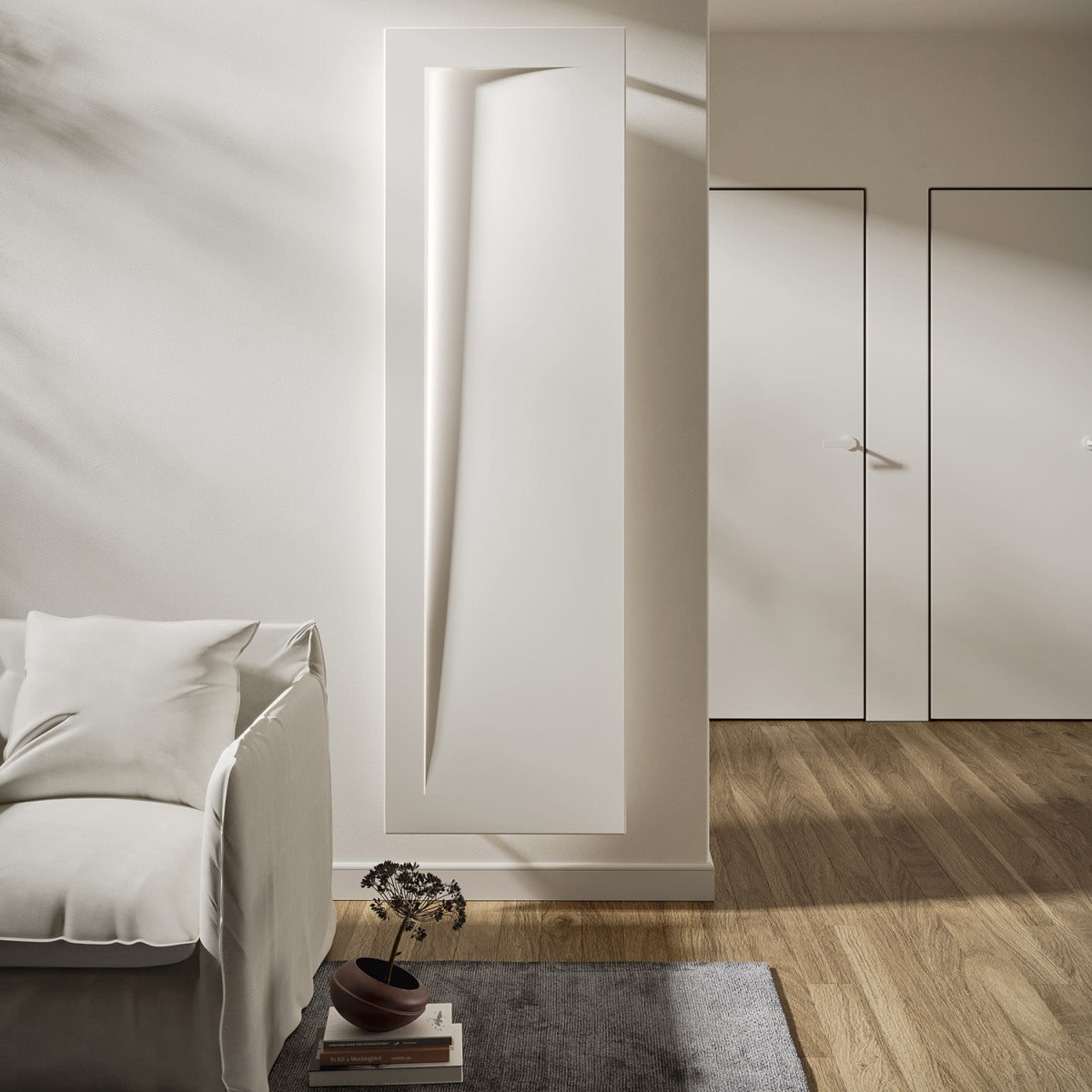

Relax Immagina, Hight 2000 mm, Lenght 600 mm, Matt White Relax Immagina, Hight 2000 mm, Lenght 600 mm, Matt White, (detail) Immagina, Hight 1800 mm, Lenght 500 mm, Wall Finished Immagina, Wall Finished, (detail)
Loading...
Salvataggio in corso...

Configure your Relax Immagina

Configure your Relax Immagina

-

Thermal power

Construction features

  • radiating panel
  • 1/2” Gas right threading
  • maximum working pressure 4 bar
  • maximum working temperature 95°C
Relax Immagina

Model Depth (mm) Height (mm) Width (mm) Conn. centre (mm) Weight (kg) Capacity (lt) Exponent
Immagina S 70,0 1800 500 50 26,30 1,40 2.624,0 661,3 769,0 584,0 409,5 248,3 1,234
Immagina S with led 70,0 1800 500 50 26,30 1,40 2.624,0 661,3 769,0 584,0 409,5 248,3 1,234
Immagina L 70,0 2000 600 50 33,30 1,90 3.443,0 867,7 1.009,0 767,9 540,0 328,8 1,224
Immagina L with led 70,0 2000 600 50 33,30 1,90 3.443,0 867,7 1.009,0 767,9 540,0 328,8 1,224

(*) Thanks to the high performance of Irsap RELAX IMMAGINA radiators, the ideal Δt for low temperature projects is Δt at 30°C.

For Δt different from 50°C use the formula Q=Qn (Δt / 50)n

Standard equipment
  • valve unit complete with couplings for copper (diameters 12, 14 and 15 mm) and multilayer (14 thick 2 and 16 thick 2)
  • 4 wall supports
  • LED lighting system optional
  • air vent

Type Description Document Downloads

Technical document

Catalogs

Catalog 2023 Catalog 2023

Catalogs

Color chart 2023 Color chart 2023

User manual

547M0220 547M0220

Installation Manual

567M0220 567M0220

Installation Manual

1217M0220 1217M0220

Type Description Document Downloads

3D Model

IMMAGINA_L_2000X600 IMMAGINA_L_2000X600

3D Model

IMMAGINA_S_1800X500 IMMAGINA_S_1800X500
