Kart 2

The KART 2 line is synonymous with functionality and solidity. Thanks to its high performance it is a radiator suitable for large bathrooms. The large spaces between the heating pipes allow perfect use as a towel warmer. KART 2 is available in 4 heights and 3 widths, also in the version with 5 0mm attachments. With the insertion of the electric resistance (optional) it can work even in periods when the system is off.

Configure Technical document

The images on this page have the sole purpose of depicting the product. Finishes and models may not have a perfect match with the actual product.

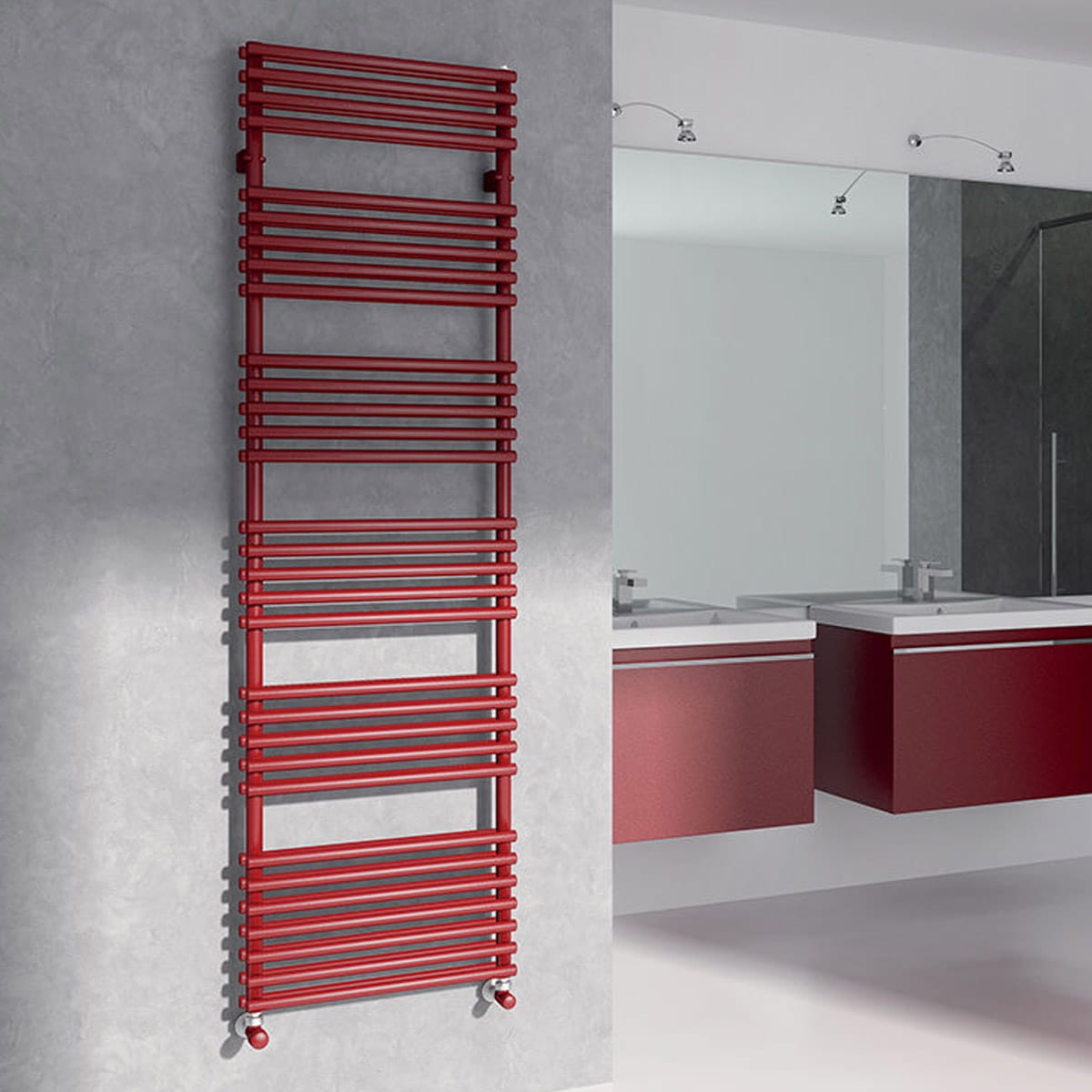

Kart 2, Hight 1757 mm, Lenght 500 mm, Flame Red
Salvataggio in corso...

Configure your Kart 2

Configure your Kart 2

720 26 rails 2 espaces
1110 40 rails 3 espaces
1450 52 rails 4 espaces
1750 62 rails 5 espaces
3 plugs 1/2 and 1 blind plug, standards connections
50 mm bottom connection
Choose most used
Cancel selection
Connection left/right with angle valve
50mm connection with angle valve
Select valve finish
Seleziona serie
Seleziona superficie

-

Thermal power
Showroom Find Showroom

Discover accessories

APPUFIORE APPUQUADRO APPUTONDO ASTEUTONDO20 ASTEUQUAD20
VALKROSQUCU VALKRODIRCU VALKRO50SQUCU VALKRO50DIRCU VALKROSALVCU VALKROSQMIST TESTELIQ3
ATTCHE430
VALKITCOPTU VALKITCOPT
ANRES700WDI ANRE0700KSP ANRE0700HSP REELETTRASM ATRACTFMF

Construction features

  • steel towel warmer radiator
  • horizontal elements featuring round tubes 23 mm diameter
  • side manifolds with a 30 mm round section
  • manifold threading 1/2” Gas right
  • maximum working pressure 8 bar
  • maximum working temperature 95°C
Kart 2
Low temperature

Low temperature
Hydraulic radiator

Hydraulic radiator

Model Depth (mm) Height (mm) Width (mm) Conn. centre (mm) Weight (kg) Capacity (lt) Exponent Mixed Function (Watts)
01
720 26 rails 2 espaces 70,0 725 500 460 10,32 5,11 1.773,4 447,0 519,8 396,4 279,5 170,8 1,214 400
720 26 rails 2 espaces 70,0 725 600 560 12,13 5,96 2.087,3 526,1 611,7 467,4 330,3 202,5 1,207 400
720 26 rails 2 espaces 70,0 725 750 710 14,84 7,23 2.560,5 645,4 750,4 574,8 407,6 251,1 1,195 700
1110 40 rails 3 espaces 70,0 1112 500 460 15,85 7,86 2.655,2 669,2 778,2 590,9 414,4 251,3 1,233 700
1110 40 rails 3 espaces 70,0 1112 600 560 18,63 9,17 3.113,5 784,8 912,5 695,1 489,4 298,5 1,220 700
1110 40 rails 3 espaces 70,0 1112 750 710 22,81 11,13 3.800,9 958,0 1.114,0 852,5 603,8 371,3 1,199 1000
1450 52 rails 4 espaces 70,0 1456 500 460 20,61 10,23 3.467,1 873,9 1.016,2 770,0 538,5 325,4 1,243 1000
1450 52 rails 4 espaces 70,0 1456 600 560 24,23 11,93 4.045,0 1.019,6 1.185,5 902,2 634,5 386,3 1,224 1000
1450 52 rails 4 espaces 70,0 1456 750 710 29,66 14,48 4.911,8 1.238,0 1.439,6 1.102,6 781,8 481,6 1,195 1000
1750 62 rails 5 espaces 70,0 1757 500 460 24,61 12,23 4.209,4 1.061,0 1.233,7 935,9 655,4 396,7 1,238 1000
1750 62 rails 5 espaces 70,0 1757 600 560 28,92 14,25 4.881,9 1.230,5 1.430,8 1.089,7 767,1 467,7 1,220 1000
1750 62 rails 5 espaces 70,0 1757 750 710 35,39 17,29 5.888,2 1.484,1 1.725,7 1.322,2 937,9 578,1 1,194 1000
05
720 26 rails 2 espaces 70,0 725 500 50 10,32 5,11 1.773,4 447,0 519,8 396,4 279,5 170,8 1,214 400
720 26 rails 2 espaces 70,0 725 600 50 12,13 5,96 2.087,3 526,1 611,7 467,4 330,3 202,5 1,207 400
720 26 rails 2 espaces 70,0 725 750 50 14,84 7,23 2.560,5 645,4 750,4 574,8 407,6 251,1 1,195 700
1110 40 rails 3 espaces 70,0 1112 500 50 15,85 7,86 2.655,2 669,2 778,2 590,9 414,4 251,3 1,233 700
1110 40 rails 3 espaces 70,0 1112 600 50 18,63 9,17 3.113,5 784,8 912,5 695,1 489,4 298,5 1,220 700
1110 40 rails 3 espaces 70,0 1112 750 50 22,81 11,13 3.800,9 958,0 1.114,0 852,5 603,8 371,3 1,199 1000
1450 52 rails 4 espaces 70,0 1456 500 50 20,61 10,23 3.467,1 873,9 1.016,2 770,0 538,5 325,4 1,243 1000
1450 52 rails 4 espaces 70,0 1456 600 50 24,23 11,93 4.045,0 1.019,6 1.185,5 902,2 634,5 386,3 1,224 1000
1450 52 rails 4 espaces 70,0 1456 750 50 29,66 14,48 4.911,8 1.238,0 1.439,6 1.102,6 781,8 481,6 1,195 1000
1750 62 rails 5 espaces 70,0 1757 500 50 24,61 12,23 4.209,4 1.061,0 1.233,7 935,9 655,4 396,7 1,238 1000
1750 62 rails 5 espaces 70,0 1757 600 50 28,92 14,25 4.881,9 1.230,5 1.430,8 1.089,7 767,1 467,7 1,220 1000
1750 62 rails 5 espaces 70,0 1757 750 50 35,39 17,29 5.888,2 1.484,1 1.725,7 1.322,2 937,9 578,1 1,194 1000

Thanks to the high performance of Irsap KART 2 radiators, the ideal Δt for low temperature projects is Δt at 30°C.

For Δt different from 50°C use the formula: Q=Qn (Δt / 50)n

Standard equipment
  • 3 infra-pipe wall fixing brackets for the white KART or 4 CHELA brackets for the colored KART
  • 1/2" air vent

Type Description Document Downloads

Technical document

Catalogs

 Catalog 2023 Catalog 2023

Catalogs

 Color chart 2023 Color chart 2023

Installation Manual

 711M1115 711M1115

Installation Manual

 248M0707 248M0707

Calculate the power

How to choose the Kart 2 radiator for your home? How to know what is the right power to heat each room? Online thermal requirement allows you to identify the most suitable radiator for your living space
