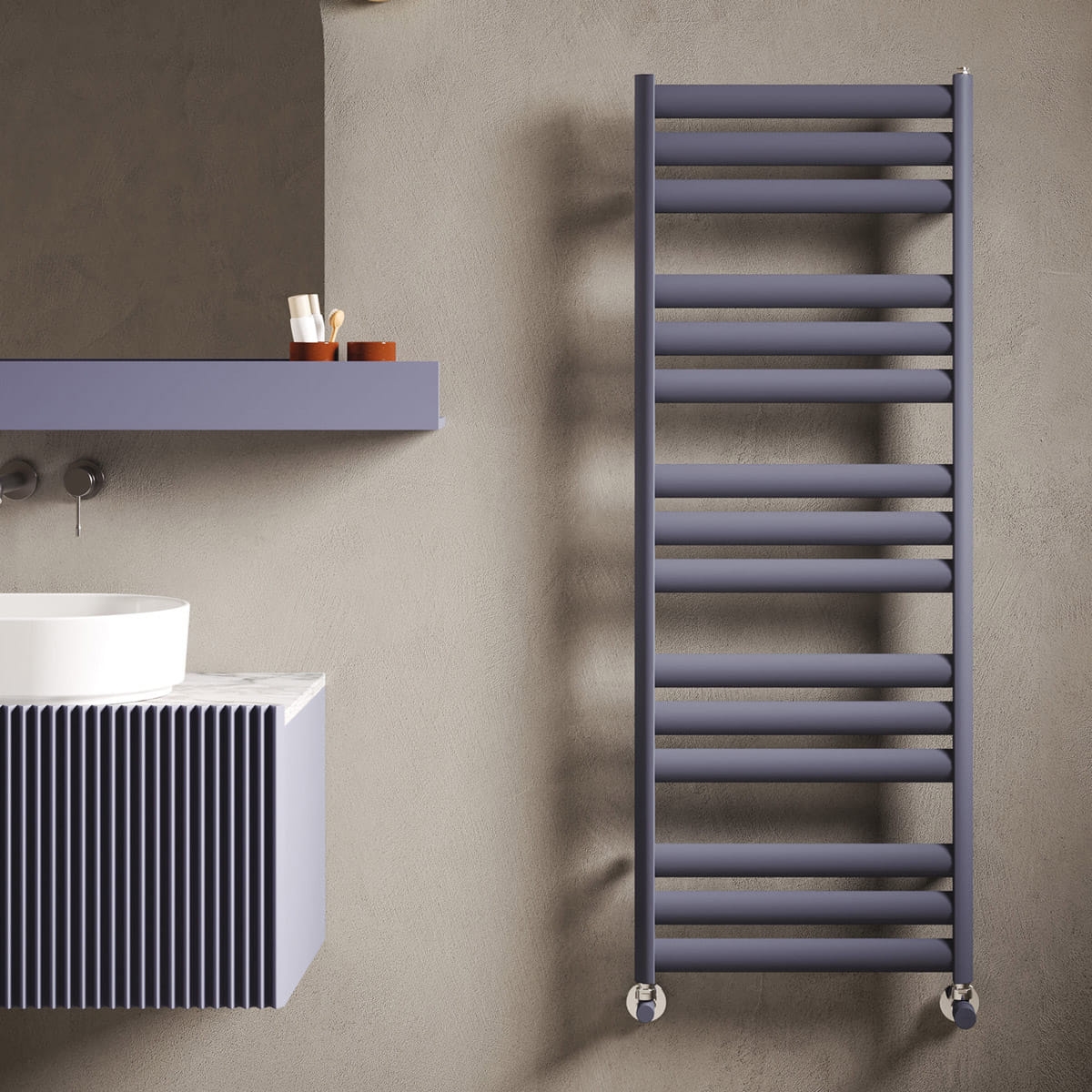

Marea
Original features, full of personality and creativity, give shape to this towel warmer from essential lines, MAREA. MAREA takes its inspiration from the rhythm that permeates the its forms. Elements that intersect, lines that merge for give shape to an elegant, discreet and with a strong personality. Available in 3 heights and 2 widths. With insertion of the electric resistance (optional) can work even when the system is off.
The images on this page have the sole purpose of depicting the product. Finishes and models may not have a perfect match with the actual product.
Configure your Marea
Configure your Marea
-
Thermal power
Discover accessories
Loading...
Construction features
- steel towel warmer radiator
- horizontal elements featuring elliptical tubes 50x25 mm
- side manifolds with triangular cross-section 30x30 mm
- manifold threading 1/2” Gas right
- maximum working pressure 4 bar
- maximum working temperature 95°C
| Model | Depth (mm) | Height (mm) | Width (mm) | Conn. centre (mm) | Weight (kg) | Capacity (lt) |
|
Exponent | Mixed Function (Watts) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 01 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 780 9 rails 2 espaces | 30,0 | 780 | 500 | 470 | 6,01 | 4,29 | 1.177,1 330,6 345,0 263,7 186,5 114,5 | 1,204 | 400 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 780 9 rails 2 espaces | 30,0 | 780 | 600 | 570 | 6,91 | 5,05 | 1.378,4 389,2 404,0 308,7 218,2 133,8 | 1,206 | 400 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 1060 12 rails 3 espaces | 30,0 | 1060 | 500 | 470 | 8,01 | 5,75 | 1.579,8 442,9 463,0 352,2 247,6 150,7 | 1,225 | 400 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 1060 12 rails 3 espaces | 30,0 | 1060 | 600 | 570 | 9,21 | 6,76 | 1.863,0 521,1 546,0 415,5 292,1 177,8 | 1,225 | 700 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 1340 15 rails 4 espaces | 30,0 | 1340 | 500 | 470 | 10,01 | 7,20 | 1.982,4 555,3 581,0 443,3 312,8 191,3 | 1,212 | 700 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 1340 15 rails 4 espaces | 30,0 | 1340 | 600 | 570 | 11,51 | 8,47 | 2.320,2 652,9 680,0 519,5 367,1 225,0 | 1,207 | 1000 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Thanks to the high performance of Irsap MAREA radiators, the ideal Δt for low temperature projects is Δt at 30°C.
For Δt different from 50°C use the formula: Q=Qn (Δt / 50)n
Standard equipment
- 4 wall fixing in the same color as the radiator
- 1/2" air vent
| Type | Description | Document | Downloads |
|---|---|---|---|
|
Technical document |
|||
|
Catalogs |
Catalog 2023 | Catalog 2023 | |
|
Catalogs |
Color chart 2023 | Color chart 2023 |
Calculate the power
How to choose the Marea radiator for your home? How to know what is the right power to heat each room? Online thermal requirement allows you to identify the most suitable radiator for your living space
