Net Air Mix

NET AIR MIX changes the geometry of the profile of horizontal tubes. Its rectangular shape gives this towel warmer a pronounced personality that enhances the bathroom environment.

The images on this page have the sole purpose of depicting the product. Finishes and models may not have a perfect match with the actual product.

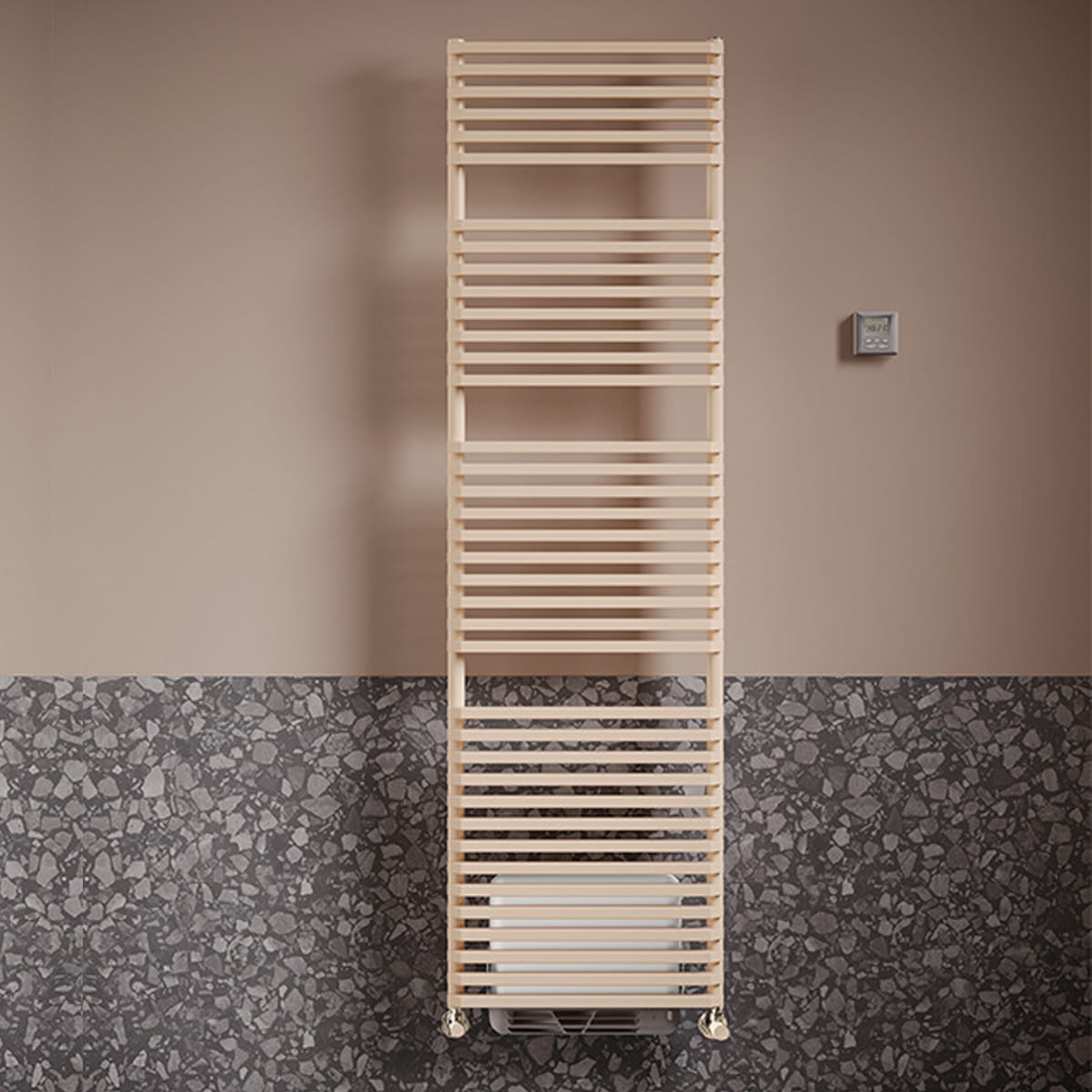

Net Air Mix, Hight 1760 mm, Lenght 500 mm, with air diffuser, Beige Cream Net Air Mix, Hight 1760 mm, Lenght 500 mm, with air diffuser, Beige Cream, (detail)
Loading...
Salvataggio in corso...

Configure your Net Air Mix

Configure your Net Air Mix

Choose most used
Cancel selection
Connection left/right with angle valve
Select valve finish

-

Thermal power

Discover accessories

APPUFIORE APPUQUADRO APPUTONDO ASTEUTONDO20 ASTEUQUAD20
VALKROSQUCU VALKRODIRCU VALKROSALVCU VALKROSQMIST
VALKITCOPTU VALKITCOPT
ANRES700WDI ANRE0700KSP ANRE0700HSP REELETTRASM ATRACTFMF

Construction features

  • steel towel warmer radiator
  • horizontal elements with rectangular tubes 20x25 mm section
  • side round manifolds with a 30 mm diameter
  • manifold threading 1/2” Gas right
  • maximum working pressure 4 bar
  • maximum working temperature 95°C
  • radiator hydraulic equipped with a booster mounted behind the radiator with a power of 1,000 Watts
Net Air Mix

Model Depth (mm) Height (mm) Width (mm) Conn. centre (mm) Weight (kg) Capacity (lt) Exponent Electric Power with Booster (Watt)
800 18 rails 1 espace 124,0 847 500 470 10,17 4,60 1.525,2 384,4 447,0 339,7 238,5 144,9 1,230 1000
1200 26 rails 2 espaces 124,0 1247 500 470 13,65 6,70 2.251,9 567,6 660,0 503,7 355,5 217,5 1,211 1000
1440 32 rails 2 espaces 124,0 1487 500 470 16,16 8,20 2.671,6 673,4 783,0 596,9 420,7 256,9 1,216 1000
1760 38 rails 3 espaces 124,0 1807 500 470 18,81 9,80 3.214,1 810,1 942,0 718,5 506,7 309,7 1,214 1000

Thanks to the high performance of Irsap NET AIR MIX radiators, the ideal Δt for low temperature projects is Δt at 30°C.

For Δt different from 50°C use the formula: Q=Qn (Δt / 50)n

Standard equipment
  • 4 wall fixing in the same color as the radiator
  • 1/2" air vent

Type Description Document Downloads

Technical document

Catalogs

Catalog 2023 Catalog 2023

Catalogs

Color chart Color chart

User manual

750M0403 750M0403

User manual

847M0418 847M0418

The Designer

Synthesis Design

Synthesis design was born in Turin in 1988, founders Carlo and Giorgio Gaino. The studio has been operating for years in the automotive, nautical and product design sector. The close collaboration with the company has allowed the development of new technological systems, which make the insertion of the radiator into the environment harmonious and simplify installation. The design approach that has been the basis of the projects created for Irsap: Dedalo, Tratto, Sax and Net has combined creativity, material experimentation, and a careful formal and perceptive study.

Synthesis Design

Calculate the power

How to choose the Net Air Mix radiator for your home? How to know what is the right power to heat each room? Online thermal requirement allows you to identify the most suitable radiator for your living space
