Oasi

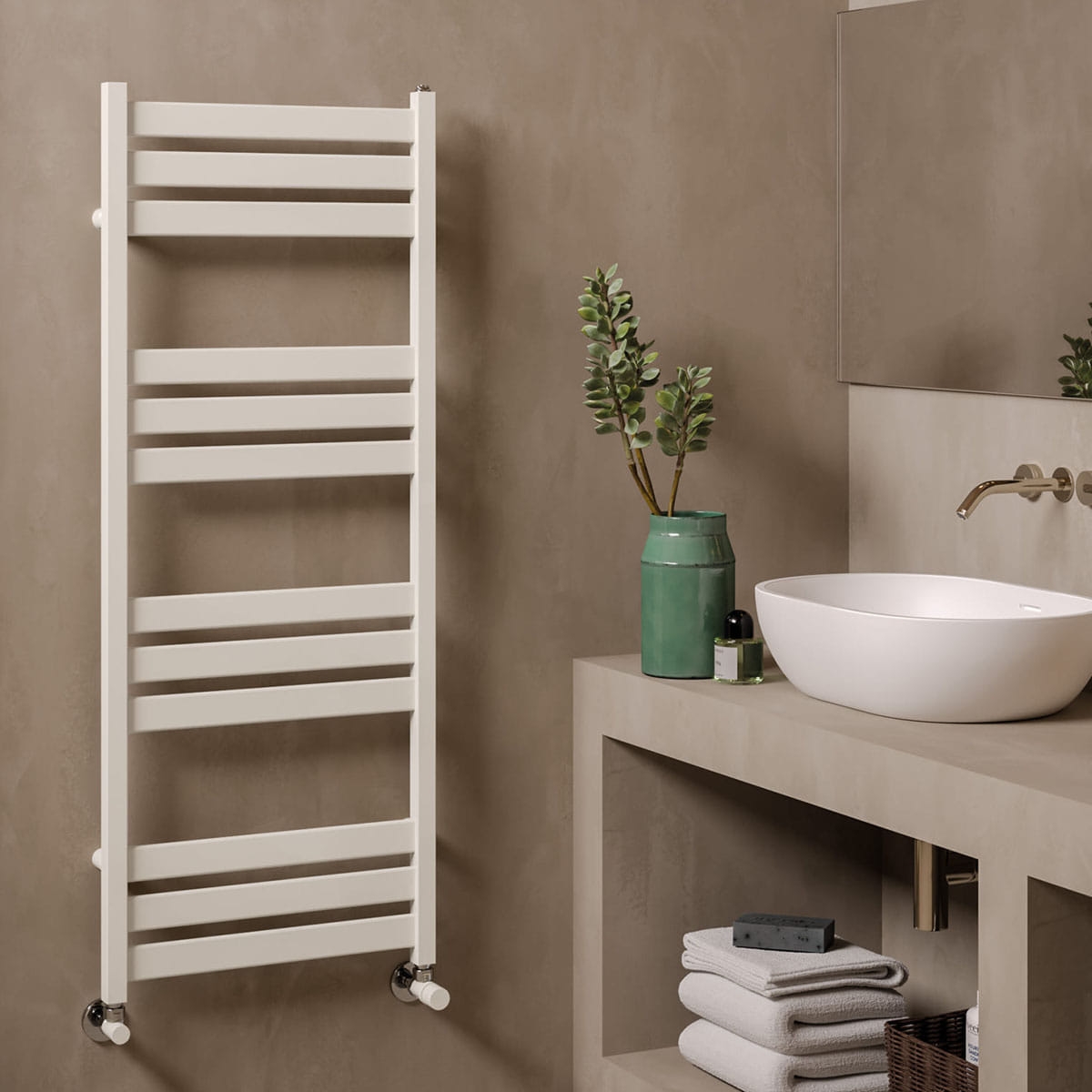

Light, minimal and essential, OASI reinterprets every environment. Its linear perspectives are the expression evolution, linearity between the horizontal oval pipes and square vertical manifolds, capable of influencing and characterize the environment that surrounds it, enhancing its personality. Available in 3 heights and 2 widths. With the insertion of the electric resistance (optional) it can also work when the radiator is not powered by the generator.
The images on this page have the sole purpose of depicting the product. Finishes and models may not have a perfect match with the actual product.
Configure your Oasi
Configure your Oasi
-
Thermal power
Discover accessories
Loading...
Construction features
- steel towel warmer radiator
- horizontal elements featuring 50x10 mm
- side manifolds 30x30 mm
- manifold threading 1/2” Gas right
- maximum working pressure 4 bar
- maximum working temperature 95°C
| Model | Depth (mm) | Height (mm) | Width (mm) | Conn. centre (mm) | Weight (kg) | Capacity (lt) |
|
Exponent | Mixed Function (Watts) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 01 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 940 9 rails 2 espaces | 30,0 | 940 | 500 | 470 | 7,25 | 2,71 | 1.245,4 313,9 365,0 279,6 198,3 122,1 | 1,195 | 400 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 940 9 rails 2 espaces | 30,0 | 940 | 600 | 570 | 8,70 | 3,13 | 1.439,9 362,9 422,0 323,7 230,0 142,0 | 1,189 | 400 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 1290 12 rails 3 espaces | 30,0 | 1290 | 500 | 470 | 9,75 | 3,89 | 1.668,5 420,5 489,0 373,8 264,4 162,3 | 1,204 | 400 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 1290 12 rails 3 espaces | 30,0 | 1290 | 600 | 570 | 11,70 | 4,47 | 1.927,8 485,9 565,0 431,8 305,4 187,4 | 1,205 | 700 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 1640 15 rails 4 espaces | 30,0 | 1640 | 500 | 470 | 12,38 | 4,71 | 2.142,7 540,1 628,0 478,6 337,1 205,7 | 1,218 | 700 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 1640 15 rails 4 espaces | 30,0 | 1640 | 600 | 570 | 14,85 | 5,41 | 2.490,8 627,8 730,0 556,0 391,4 238,7 | 1,220 | 700 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Thanks to the high performance of Irsap OASI radiators, the ideal Δt for low temperature projects is Δt at 30°C.
For Δt different from 50°C use the formula: Q=Qn (Δt / 50)n
Standard equipment
- 4 wall fixing in the same color as the radiator
- 1/2" air vent
