Sax Electric

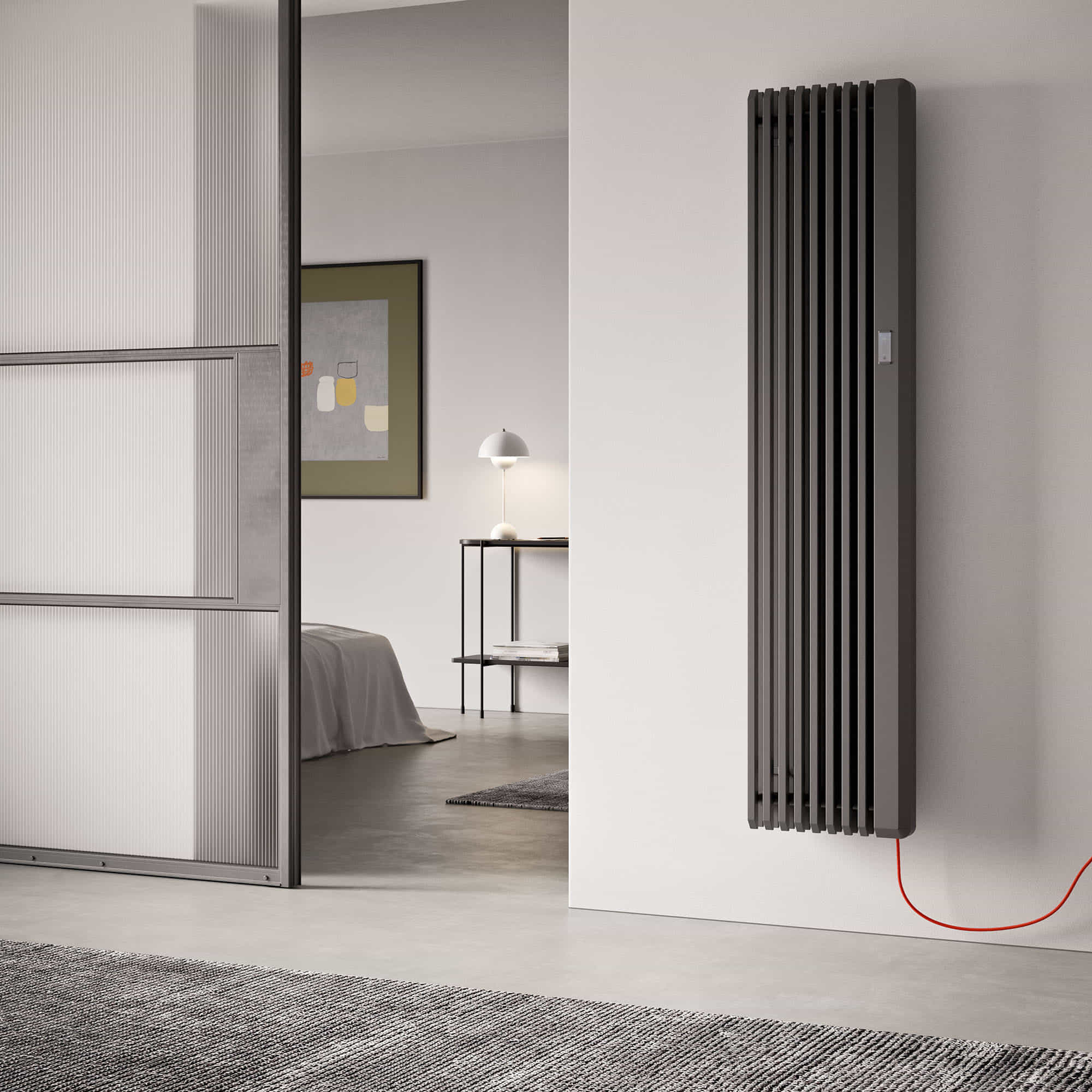

SAX Electric represents the aesthetic evolution of the furnishing radiator, thanks to the squared profile of its elements. The control electronics, perfectly integrated and not visible, guarantees high thermal power (up to 1800 Watts) to satisfy every need. Sax Electric is also available with LED lights that transform it into a real design object.
Loading...
Salvataggio in corso...
Discover accessories
Loading...
Construction features
- manifolds with a 30 mm diameter circular section
- tubes made of sheet steel with a 20x25 mm rectangular section
- complete with thermal liquid
- electric resistance equipped with a WiFi electronic control
- red textile power cable, lenght 1200 mm, SCHUKO plug
- class II, IP24
- horizontal and vertical installation; in horizontal installation the LEDs must be pointing downwards
- VOC function (air quality control)
| Model | Depth (mm) | Height (mm) | Width (mm) | Weight (kg) | Electric Power (Watt) |
|---|---|---|---|---|---|
| Sax electric 500 Watt | 82,0 | 900 | 415 | 21,70 | 500 |
| Sax electric 750 Watt | 82,0 | 900 | 575 | 30,60 | 750 |
| Sax electric with led 500 Watt | 82,0 | 900 | 415 | 21,70 | 500 |
| Sax electric with led 750 Watt | 82,0 | 900 | 575 | 30,60 | 750 |
| Sax electric 1000 Watt | 82,0 | 1800 | 415 | 42,10 | 1000 |
| Sax electric 1500 Watt | 82,0 | 1800 | 575 | 58,10 | 1500 |
| Sax electric 1800 Watt | 82,0 | 1800 | 735 | 74,20 | 1800 |
| Sax electric with led 1000 Watt | 82,0 | 1800 | 415 | 42,10 | 1000 |
| Sax electric with led 1500 Watt | 82,0 | 1800 | 575 | 58,10 | 1500 |
| Sax electric with led 1800 Watt | 82,0 | 1800 | 735 | 74,20 | 1800 |
Standard equipment
- fixing brackets complete with screws and anchors
- multicolored LED lighting system (optional) with adjustable intensity
| Type | Description | Document | Downloads |
|---|---|---|---|
|
Catalogs |
Catalog 2023 | Catalog 2023 | |
|
Catalogs |
Color chart 2023 | Color chart 2023 | |
|
Product certification |
SAX_2_EV | SAX_2_EV | |
|
Installation Manual |
586M0411_ESPORTA_IMB_SAX2 | 586M0411_ESPORTA_IMB_SAX2 | |
|
Installation Manual |
1023M1217_tabella_ECODESIGN_2018_TIPOLOGIA_Z | 1023M1217_tabella_ECODESIGN_2018_TIPOLOGIA_Z | |
|
Installation Manual |
Tabella ECODESIGN SAX PIANO POLYGON | Tabella ECODESIGN SAX PIANO POLYGON | |
|
Installation Manual |
610M0221_SAX_elettrico | 610M0221_SAX_elettrico | |
|
Installation Manual |
1291M0921_RAD_ELETTR_EE_EV_funz | 1291M0921_RAD_ELETTR_EE_EV_funz | |
|
Installation Manual |
1298M0721_Quick_start_guide_Rad_elettrici | 1298M0721_Quick_start_guide_Rad_elettrici |
Calculate the power
How to choose the Sax Electric radiator for your home? How to know what is the right power to heat each room? Online heat demand allows you to identify the most suitable radiator for your living space
