Sequenze

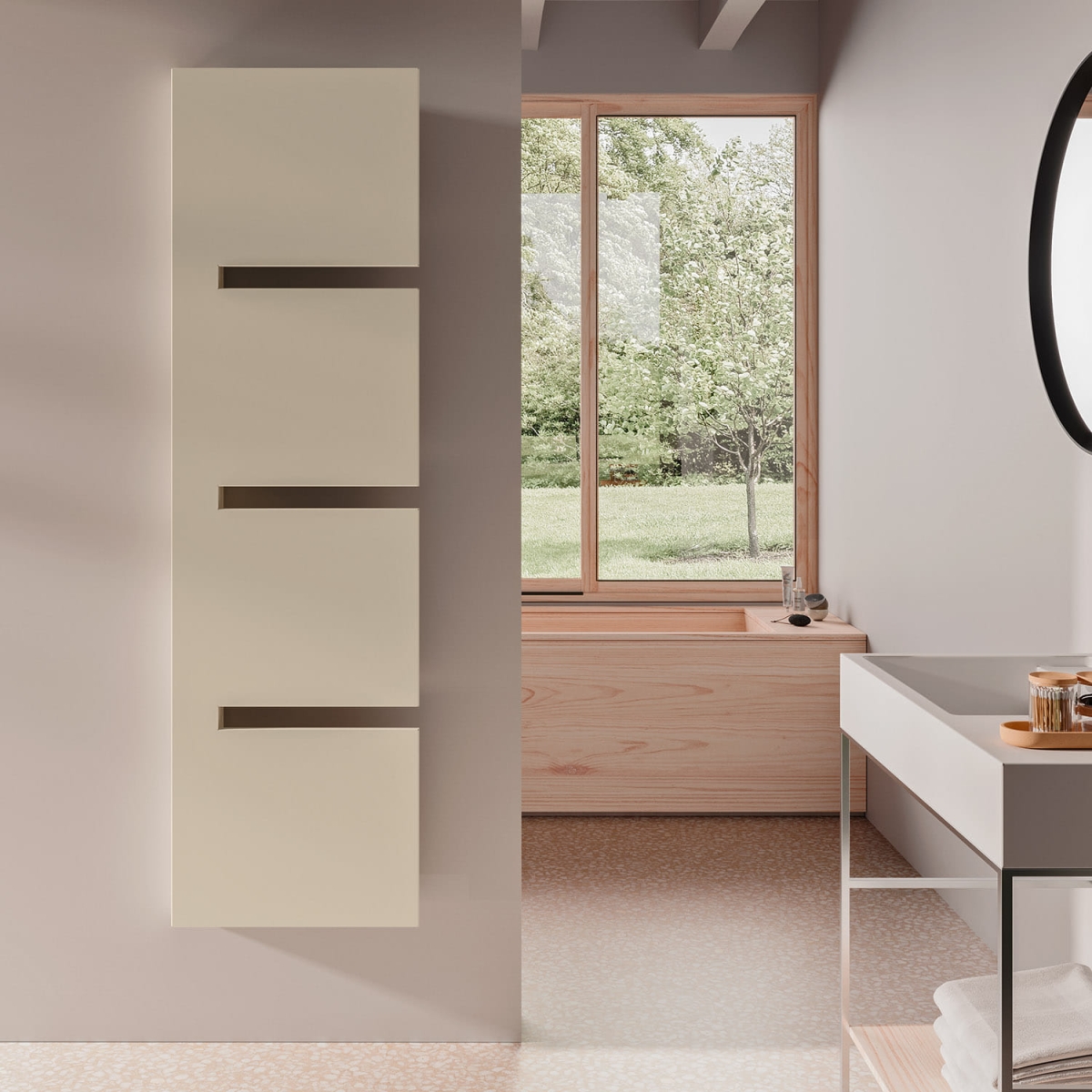

The cuts break the shape and make it functional for use but above all they accentuate the perceived value, making it three-dimensional and sculptural. The light and shadows reveal an intrinsic spirituality of the object. SEQUENZE is supplied with the innovative concealed hydraulic connection system installed directly in the company. Available in two models, SEQUENZE S and SEQUENZE L, with two thermal powers.
The images on this page have the sole purpose of depicting the product. Finishes and models may not have a perfect match with the actual product.
Construction features
- radiating panel
- 1/2” Gas right threading
- maximum working pressure 4 bar
- maximum working temperature 95°C
| Model | Depth (mm) | Height (mm) | Width (mm) | Conn. centre (mm) | Weight (kg) | Capacity (lt) |
|
Exponent |
|---|---|---|---|---|---|---|---|---|
| SEQUENZE S | 90,0 | 845 | 500 | 50 | 16,20 | 0,80 | 1.317,0 332,0 386,0 293,7 206,5 125,7 | 1,225 |
| SEQUENZE L | 90,0 | 1735 | 500 | 50 | 32,20 | 1,70 | 2.518,0 634,7 738,0 560,1 392,5 237,8 | 1,236 |
Thanks to the high performance of Irsap SEQUENZE radiators, the ideal Δt for low temperature projects is Δt at 30°C.
For Δt different from 50°C use the formula Q=Qn (Δt / 50)n
Standard equipment
- innovative water connection system installed on the product complete with fittings for connection to copper pipes (12, 14 and 15 mm diameter) and multilayer pipes (14 x 2 thick and 16 x 2 thick)
- wall fixing system built into the product column
- air vent
| Type | Description | Document | Downloads |
|---|---|---|---|
|
Technical document |
|||
|
Catalogs |
Catalog 2023 | Catalog 2023 | |
|
Catalogs |
Color chart | Color chart | |
|
Installation Manual |
FOISTR0442M | FOISTR0442M | |
|
Manual |
FOISTR1394M | FOISTR1394M |
| Type | Description | Document | Downloads |
|---|---|---|---|
|
3D Model |
SEQUENZE_L | SEQUENZE_L |
|
|
3D Model |
SEQUENZE_S | SEQUENZE_S |
|
The Designer
A couple in both personal and professional life, Silvana Angeletti was born in Rieti in 1969. Daniele Ruzza was born in Rome in 1967. After graduating in industrial design, they began their partnership in February 1994 and opened their own design studio: angeletti ruzza design. They took part in numerous competitions, winning prizes and commendation. They live and work in Rieti and cooperate with numerous prestigious Italian companies. They have been collaborating with IRSAP since June 2006 and their research into proportion and linearity has led to three products that blend artistically into the home environment. SEQUENZE, a radiator that speaks a contemporary language, with a neat and simple form that fits natural into any architectural environment. Shape and function, calm and simplicity are the inspirational muse of the new It Is and M’ama thermo-artworks, made in 2017.
Angeletti & Ruzza
Calculate the power
How to choose the Sequenze radiator for your home? How to know what is the right power to heat each room? Online thermal requirement allows you to identify the most suitable radiator for your living space
