Soul_S Air Electric

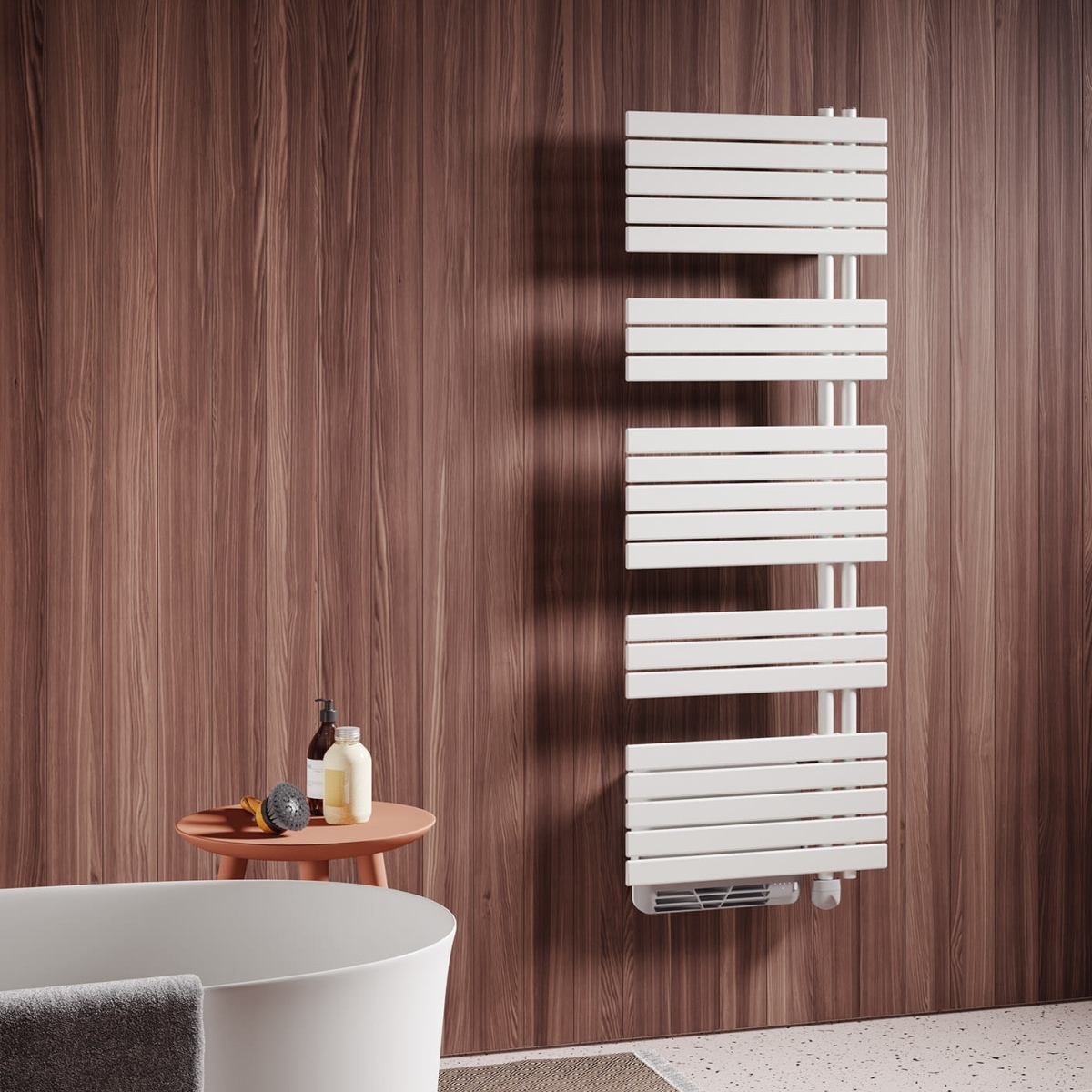

SOUL_S AIR Electric is an electric radiator with booster. The radiator is filled with a coolant and is combined with a 1000 watt electric power booster system. This system provides a uniform temperature in the room where it is installed. Available in 3 heights and a width of 550 mm.
The images on this page have the sole purpose of depicting the product. Finishes and models may not have a perfect match with the actual product.
Configure your Soul_S Air Electric
Construction features
- electric steel towel warmer radiator
- horizontal elements featuring rectangular 50x10 mm section tubes
- side round manifolds with a 30 mm diameter
- the radiator is filled with a cooling liquid and is combined with a booster system of electric power of 1000 watts.
- This blower system provides a temperature uniform with the room in which it is installed.
| Model | Depth (mm) | Height (mm) | Width (mm) | Weight (kg) | Electric Power (Watt) | Electric Power with Booster (Watt) | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DX | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

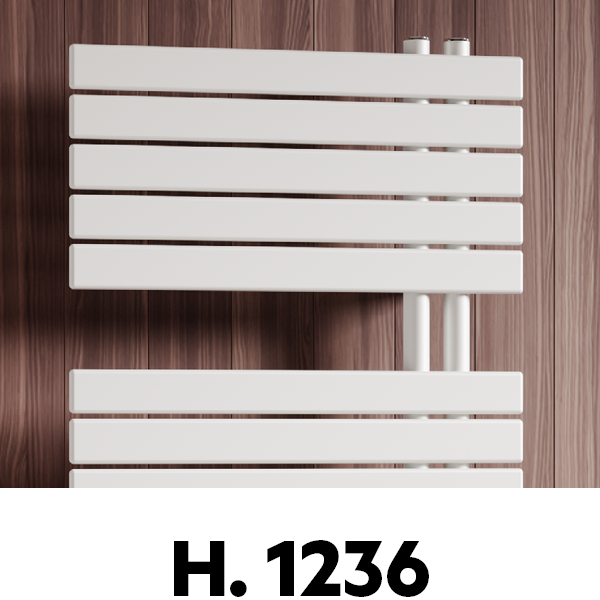

| 1176 16 rails 3 espaces | 110,0 | 1236 | 550 | 20,52 | 500 | 1000 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

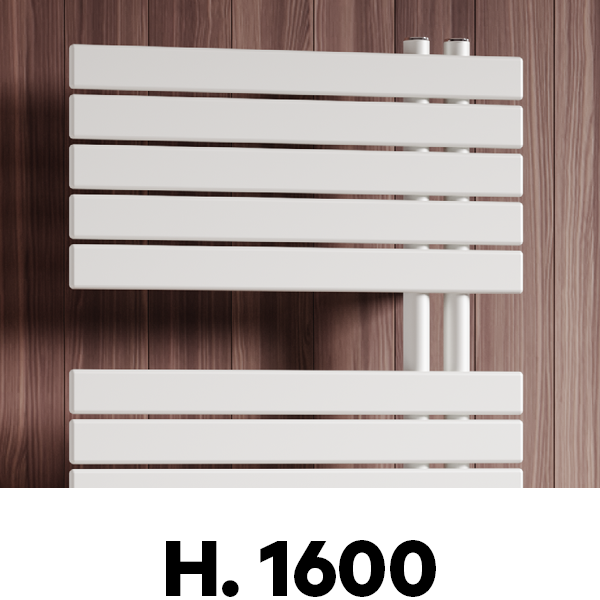

| 1540 21 rails 4 espaces | 110,0 | 1600 | 550 | 25,27 | 750 | 1000 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

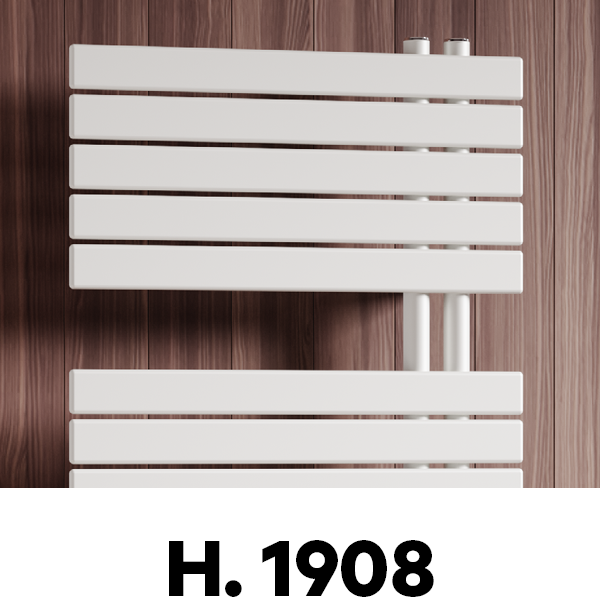

| 1848 28 rails 3 espaces | 110,0 | 1908 | 550 | 31,60 | 1000 | 1000 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
The radiator will be supplied with the resistance always mounted on the inner collector.
Standard equipment
- 4 adjustable wall fixing brackets in the same color of the radiator
- Wireless Remote control
| Type | Description | Document | Downloads |
|---|---|---|---|
|
Technical document |
|||
|
Catalogs |
Catalog 2023 | Catalog 2023 | |
|
Catalogs |
Color chart | Color chart | |
|
Product certification |
DC_UE_240007_Soul_S_Air | DC_UE_240007_Soul_S_Air | |
|
Product certification |
DC_UE_240063_SOUL_S_ELEC_AIR_R | DC_UE_240063_SOUL_S_ELEC_AIR_R | |
|
User manual |
FOISTR0847M | FOISTR0847M | |
|
User manual |
FOISTR0749M | FOISTR0749M | |
|
Installation Manual |
FOISTR1386M | FOISTR1386M | |
|
Manual |
FOISTR1016M | FOISTR1016M | |
|
Manual |
FOISTR1017M | FOISTR1017M |
Calculate the power
How to choose the Soul_S Air Electric radiator for your home? How to know what is the right power to heat each room? Online heat demand allows you to identify the most suitable radiator for your living space
