Step_B

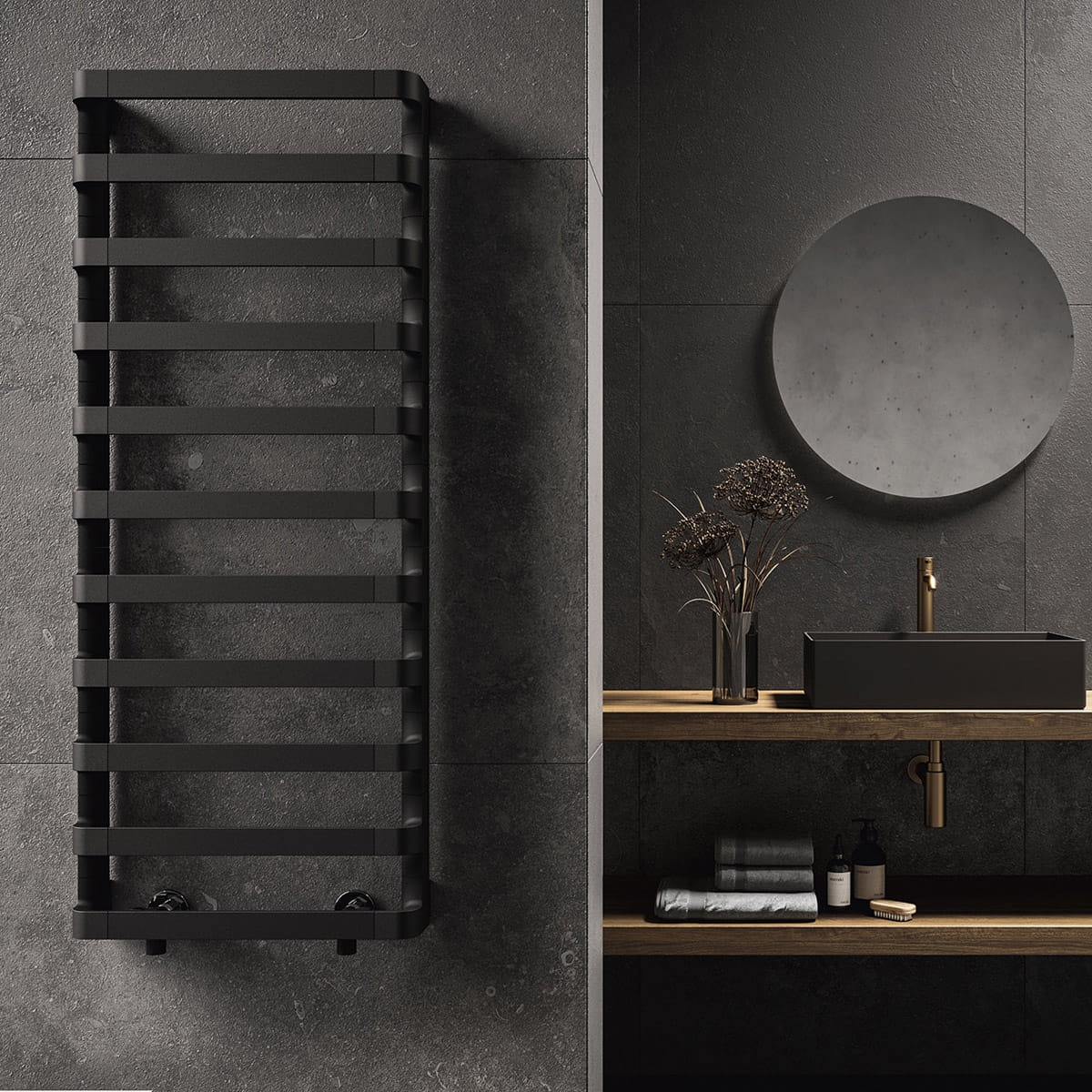

The essential geometry of the horizontal elements and the large spaces for placing towels make STEP_B the most exclusive and elegant design product for the contemporary bathroom. Each component of the radiator is designed in every detail.
The images on this page have the sole purpose of depicting the product. Finishes and models may not have a perfect match with the actual product.
Construction features
- flattened pipes in aluminium, 40 mm height
- maximum working pressure 4 bar
- maximum working temperature 95°C
Model | Depth (mm) | Height (mm) | Width (mm) | Conn. centre (mm) | Weight (kg) | Capacity (lt) |
|
Exponent |
---|---|---|---|---|---|---|---|---|

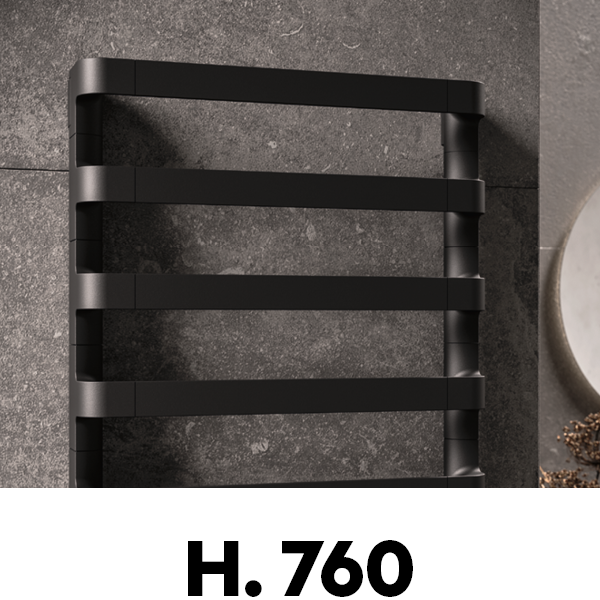

STEP_B_760_ 7 el. | 107,0 | 760 | 500 | 276 | 10,20 | 1,60 | 1.262,0 318,2 370,0 284,5 202,8 125,8 | 1,177 |
STEP_B_760_ 7 el. | 107,0 | 760 | 600 | 376 | 10,80 | 1,90 | 1.436,0 362,1 421,0 325,7 234,0 146,8 | 1,150 |

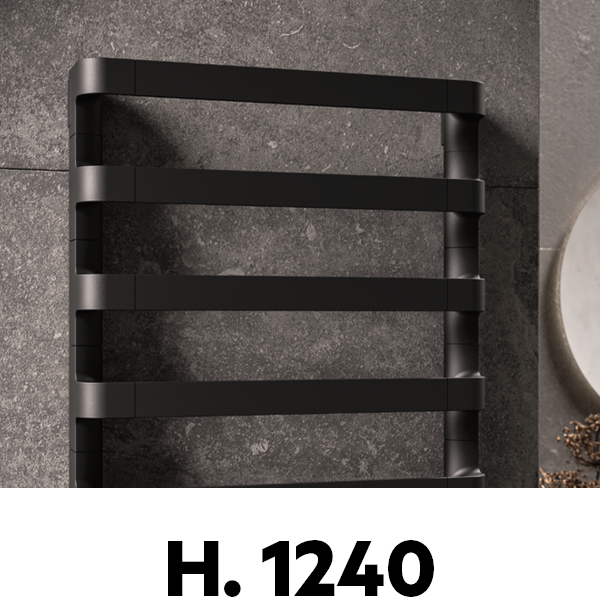

STEP_B_1240_11 el. | 107,0 | 1240 | 500 | 276 | 16,30 | 2,60 | 2.040,0 514,3 598,0 461,7 330,8 206,8 | 1,159 |
STEP_B_1240_11 el. | 107,0 | 1240 | 600 | 376 | 17,30 | 3,10 | 2.228,0 561,6 653,0 504,8 362,2 226,8 | 1,154 |

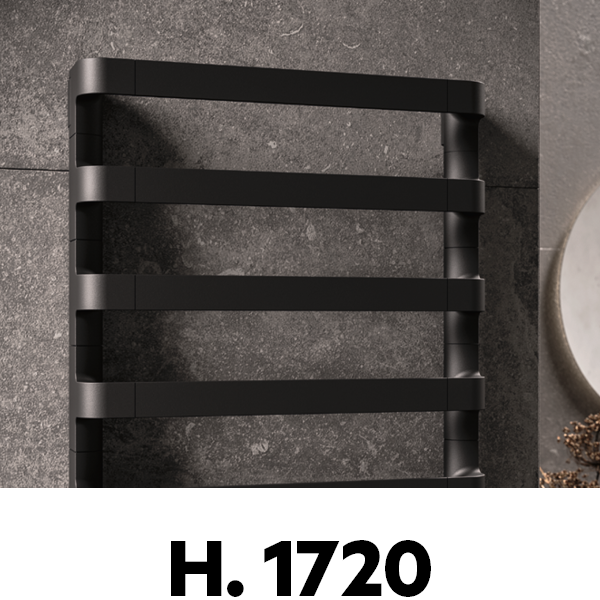

STEP_B_1720_15 el. | 107,0 | 1720 | 500 | 276 | 22,50 | 3,50 | 2.784,0 701,8 816,0 631,5 453,7 284,8 | 1,149 |
STEP_B_1720_15 el. | 107,0 | 1720 | 600 | 376 | 23,90 | 4,20 | 3.190,0 804,1 935,0 721,6 516,7 322,7 | 1,161 |

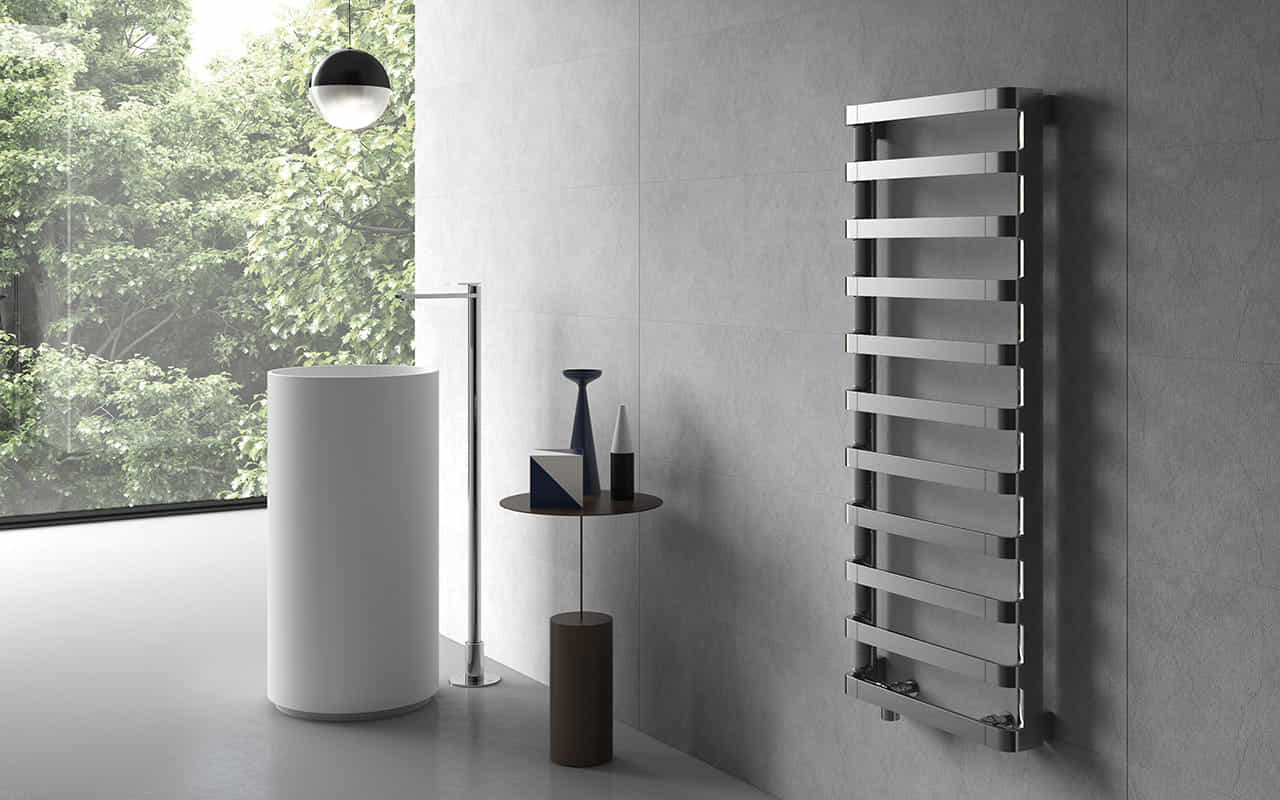

(*) Thanks to the high performance of Irsap STEP_B radiators, the ideal Δt for low temperature projects is Δt at 30°C. The heating yields are calculated on products with epoxy powder coatings. For Chrome (code 50) finishes, the yields decrease respectively by 40%. All the available finishes are shown on the facing page.
For Δt different from 50°C use the formula: Q=Qn (∆t / 50)n
Standard equipment
- wall fixing systems the same finish as the radiator
- 2 hidden vent valves of 1/2” and valve caps
- hydraulic connection kit in the same finish as the radiator, complete with couplings for copper fittings (diameter 12, 14 and 15 mm), and multilayer pipes (14 x 2 thick and 16 x 2 thick)
Type | Description | Document | Downloads |
---|---|---|---|
Technical document |
|||
Catalogs |
Catalog 2023 | Catalog 2023 | |
Catalogs |
Color chart | Color chart | |
Installation Manual |
FOISTR0709M | FOISTR0709M | |
Manual |
FOISTR1394M | FOISTR1394M |
Type | Description | Document | Downloads |
---|---|---|---|
3D Model |
STEP_B_L500_11EL | STEP_B_L500_11EL |
|
3D Model |
STEP_B_L500_15EL | STEP_B_L500_15EL |
|
3D Model |
STEP_B_L500_7EL | STEP_B_L500_7EL |
|
3D Model |
STEP_B_L600_11EL | STEP_B_L600_11EL |
|
3D Model |
STEP_B_L600_15EL | STEP_B_L600_15EL |
|
3D Model |
STEP_B_L600_7EL | STEP_B_L600_7EL |
|
The Designer
When a successful company like Irsap discovers the stylistic synthesis of Antonio Citterio, the result in terms of both aesthetics and performance is impeccable. Our meeting led to the development of a line of authentic design heating elements that speaks the immediately recognizable language of a designer who symbolizes Made in Italy spirit and production. These are products that can be easily inserted in any surroundings thanks to the discretion adopted in their physical configuration. Every single detail has a simple story and a truth to tell: fashion trends come and go without a trace, true design, instead, leaves its mark. Design remains at the disposal of anyone who designs interiors and those who desire to fill these rooms and areas with their own desires and dreams.
Antonio Citterio
Calculate the power
How to choose the Step_B radiator for your home? How to know what is the right power to heat each room? Online thermal requirement allows you to identify the most suitable radiator for your living space
