Step_V

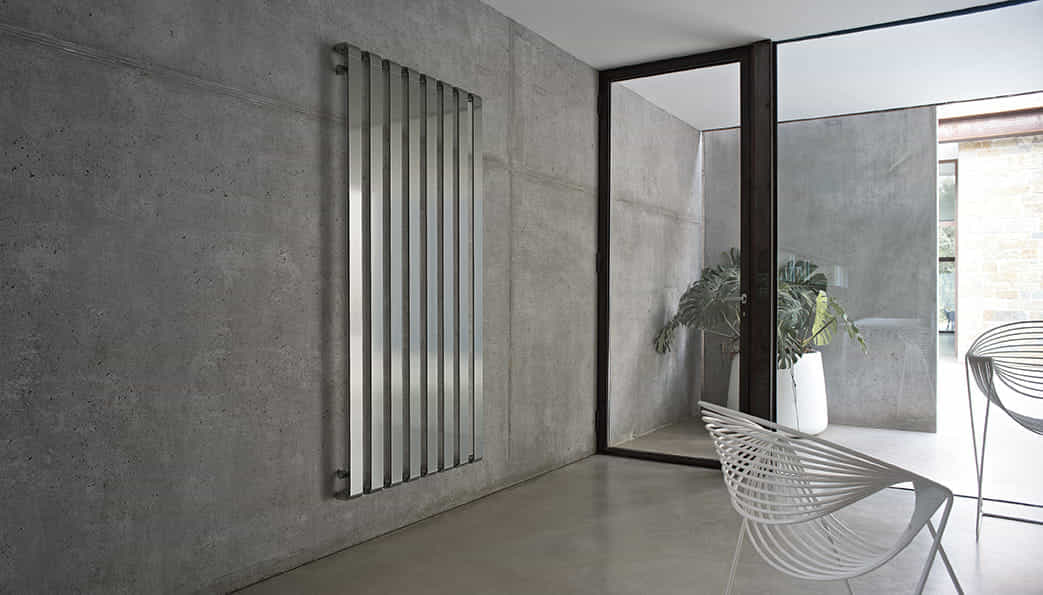

STEP_V is the range of “VERTICAL” products available in numerous sizes and heating powers. Nine models have been designed for the complete adaptability to every type of room and the satisfaction of every need. The extension of the range ensures ideal comfort in every situation.
The images on this page have the sole purpose of depicting the product. Finishes and models may not have a perfect match with the actual product.
Construction features
- flattened pipes in aluminium, 70 mm height
- maximum working pressure 4 bar
- maximum working temperature 95°C
Model | Depth (mm) | Height (mm) | Width (mm) | Conn. centre (mm) | Weight (kg) | Capacity (lt) |
|
Exponent |
---|---|---|---|---|---|---|---|---|
STEP_V_0600_06 el. | 107,0 | 600 | 670 | 376 | 11,58 | 1,66 | 1.416,7 357,0 415,2 315,4 221,2 134,2 | 1,232 |
STEP_V_0600_08 el. | 107,0 | 600 | 910 | 376 | 15,62 | 2,22 | 1.889,0 476,0 553,6 420,5 295,0 179,0 | 1,232 |
STEP_V_0600_10 el. | 107,0 | 600 | 1150 | 376 | 19,65 | 2,79 | 2.361,2 595,0 692,0 525,6 368,7 223,7 | 1,232 |
STEP_V_1800_04 el. | 107,0 | 1800 | 430 | 1576 | 13,86 | 3,17 | 2.376,1 598,8 696,4 528,7 370,7 224,7 | 1,234 |
STEP_V_1800_06 el. | 107,0 | 1800 | 670 | 1576 | 21,05 | 4,77 | 3.564,2 898,2 1.044,6 793,1 556,0 337,1 | 1,234 |
STEP_V_1800_08 el. | 107,0 | 1800 | 910 | 1576 | 28,25 | 6,37 | 4.752,2 1.197,5 1.392,7 1.057,4 741,3 449,4 | 1,234 |
STEP_V_2000_04 el. | 107,0 | 2000 | 430 | 1776 | 14,91 | 3,51 | 2.609,4 657,6 764,7 580,2 406,4 246,1 | 1,238 |
STEP_V_2000_06 el. | 107,0 | 2000 | 670 | 1776 | 22,63 | 5,29 | 3.914,1 986,3 1.147,1 870,3 609,6 369,1 | 1,238 |
STEP_V_2000_08 el. | 107,0 | 2000 | 910 | 1776 | 30,36 | 7,06 | 5.218,8 1.315,1 1.529,5 1.160,4 812,8 492,1 | 1,238 |
(*) Thanks to the high performance of Irsap STEP_V radiators, the ideal Δt for low temperature projects is Δt at 30°C. The heating yields are calculated on products with epoxy powder coatings. For Chrome (code 50) finishes, the yields decrease respectively by 40%. All the available finishes are shown on the facing page.
For Δt different from 50°C use the formula: Q=Qn (∆t / 50)n
Standard equipment
- wall fixing systems the same finish as the radiator
- 2 hidden vent valves of 1/2” and valve caps
- pre-mounted hydraulic connection kit in the same finish as the radiator, complete with couplings for copper fittings (diameter 12, 14 and 15 mm), and multilayer pipes (14 x 2 thick and 16 x 2 thick)
