Stilé

STILÉ is an essential and strong impact radiator. The preciousness and brightness of stainless steel determine a harmonious and particular play of light and shadow. STILÉ has a linear and elegant shape that integrates exclusively into any type of environment with its refined beauty.

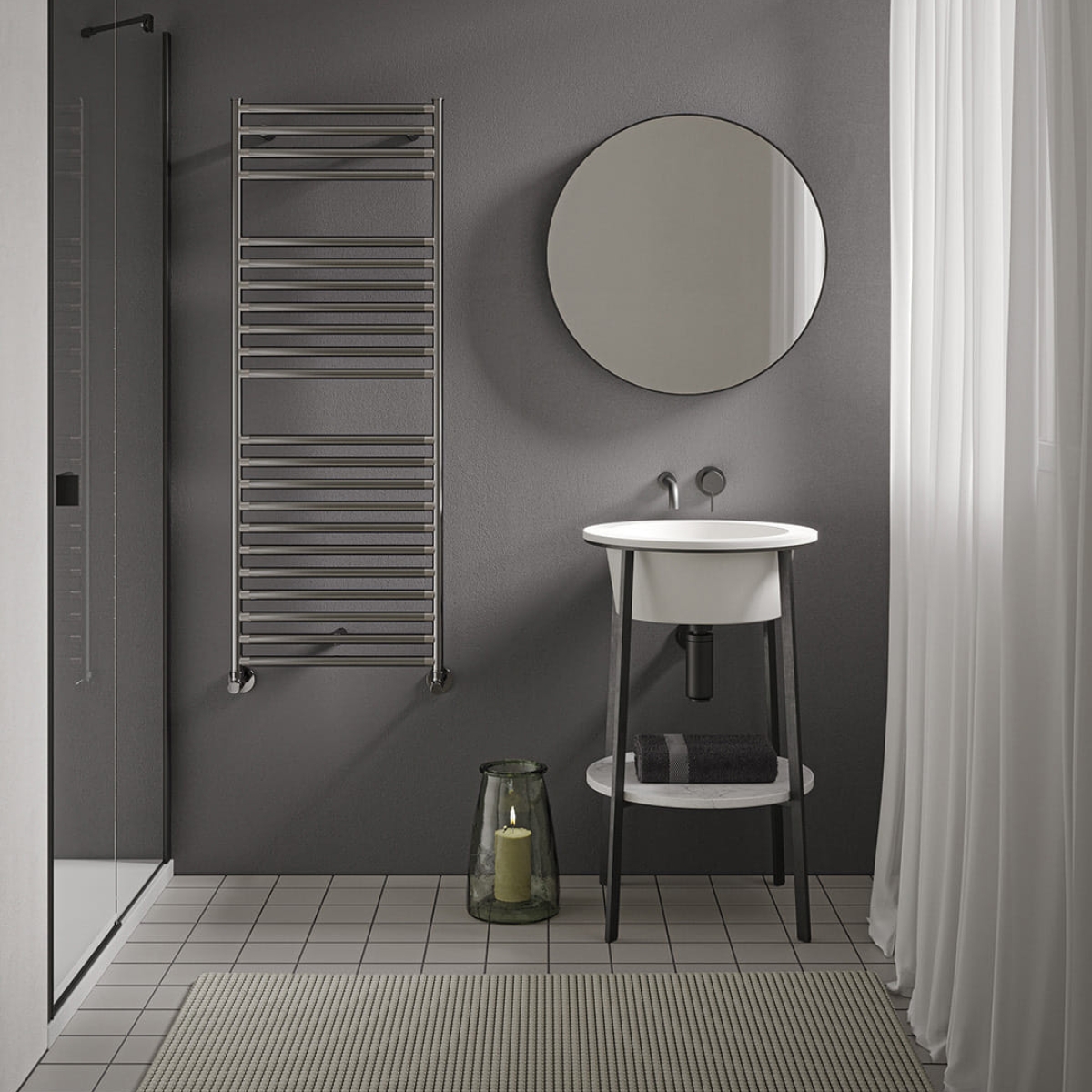

Stilé, Hight 1292 mm, Lenght 581 mm, Satin Stilé, Hight 1292 mm, Lenght 581 mm, Satin, (detail) Stilé, Hight 1792 mm, Lenght 481 mm, Satin Stilé, Satin, (detail)
Loading...
Salvataggio in corso...

Configure your Stilé

Configure your Stilé

842 15 rails 1 espace
1292 22 rails 2 espaces
1792 30 rails 3 espaces
Choose most used
Cancel selection
Connection left/right with angle valve
Select valve finish

-

Thermal power

Discover accessories

Construction features

  • towel warmer radiator made of polished stainless steel
  • horizontal elements featuring with 25 mm diameter
  • side manifolds with a 25 mm diameter
  • 1/2” Gas right threading
  • maximum working pressure 4 bar
  • maximum working temperature 95°C
  • STILÉ radiator, thanks to its constructive features, it can be connected to either the domestic hot water system.
Stilé

Model Depth (mm) Height (mm) Width (mm) Conn. centre (mm) Weight (kg) Capacity (lt) Exponent
842 15 rails 1 espace 25,0 842 481 456 8,70 2,90 809,6 204,0 237,0 178,5 123,9 74,0 1,270
842 15 rails 1 espace 25,0 842 581 556 9,60 3,50 953,1 240,0 279,0 211,0 147,2 88,6 1,252
1292 22 rails 2 espaces 25,0 1292 481 456 13,00 4,30 1.233,2 310,0 361,0 274,1 192,2 116,5 1,234
1292 22 rails 2 espaces 25,0 1292 581 556 14,30 5,20 1.448,4 365,0 424,0 321,3 224,7 135,7 1,243
1792 30 rails 3 espaces 25,0 1792 481 456 17,80 5,90 1.731,9 436,0 507,0 381,4 264,2 157,5 1,276
1792 30 rails 3 espaces 25,0 1792 581 556 19,60 7,10 2.039,4 513,0 597,0 449,3 311,4 185,8 1,274

Thanks to the high performance of Irsap STILÉ radiators, the ideal Δt for low temperature projects is Δt at 30°C.

For Δt different from 50°C use the formula: Q=Qn (Δt / 50)n

Standard equipment
  • angle pattern valve and lockshield valve assembly complete with copper fitting (diameters: 12, 14, 15 mm)
  • kit of pipe covers (suitable for pipes up to 16 mm thick)
  • 3 chela wall brackets
  • 1/2" air vent
