Ellipsis_H

A classic that never goes out of fashion, the ELLIPSIS towel warmer is particularly suitable for refined environments. ELLIPSIS_H Horizontal is available in 9 heights, from 4 to 30 elements and thermal powers from 140 to 3073 Watt.

The images on this page have the sole purpose of depicting the product. Finishes and models may not have a perfect match with the actual product.

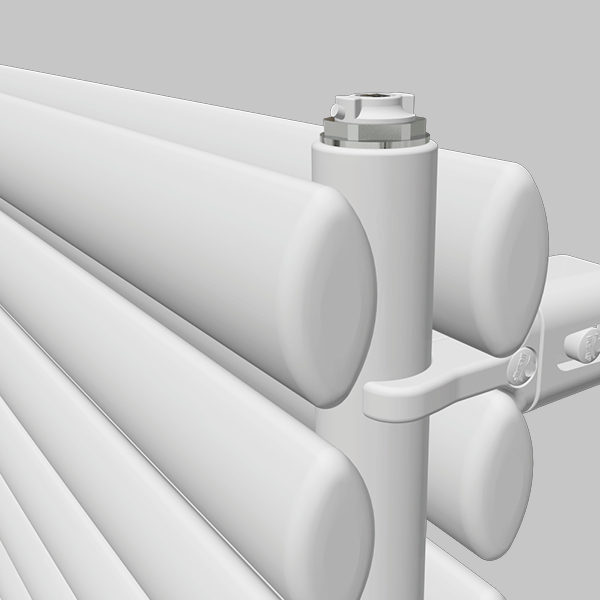

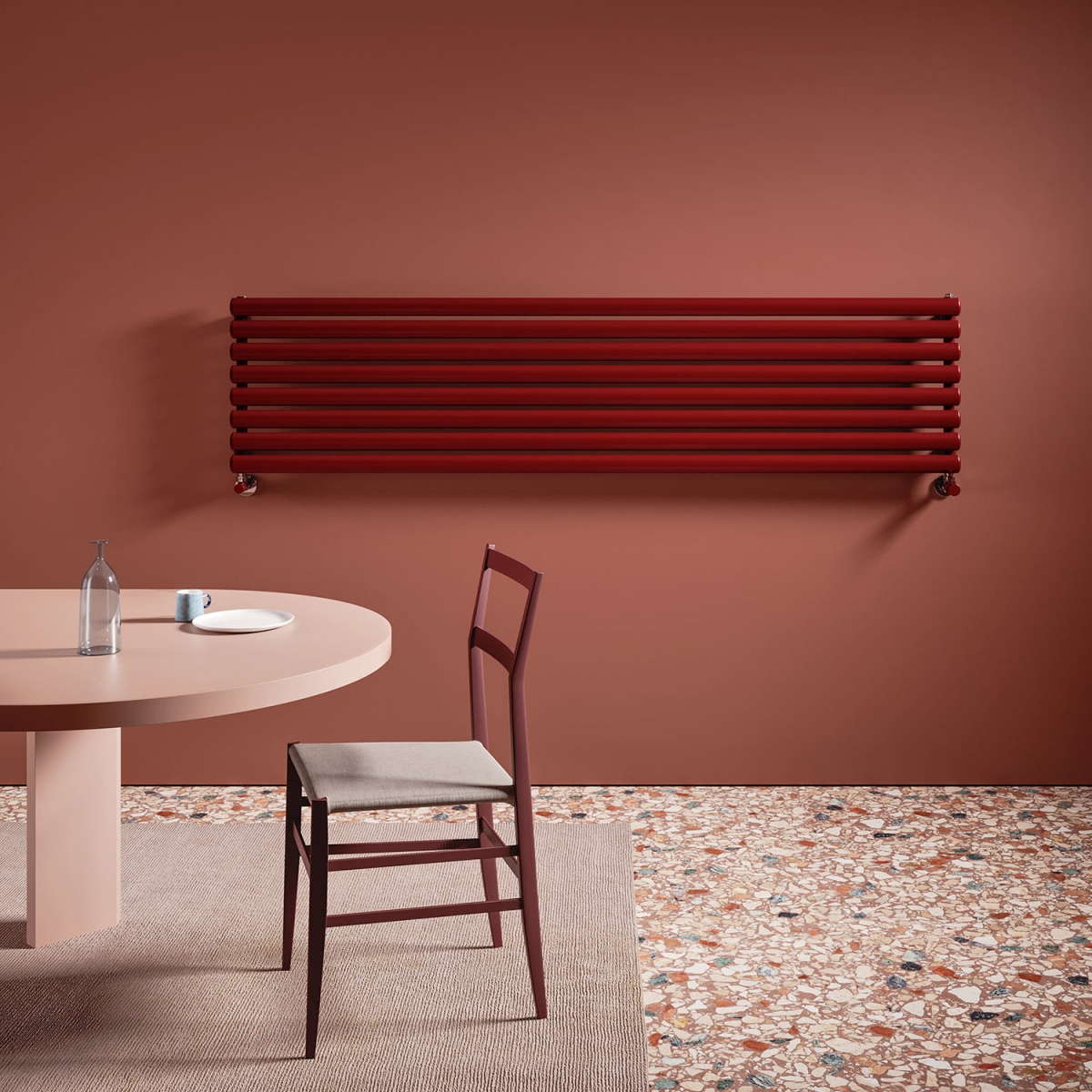

Ellipsis H, Horizontal, 8 elements, Hight 480 mm, Lenght 1520 mm, Claret - RAL 3003 Ellipsis H, Horizontal, 8 elements, Hight 480 mm, Lenght 1520 mm, Claret - RAL 3003, (detail) Ellipsis H, Horizontal, 8 elements, Hight 480 mm, Lenght 1820 mm, Standard White Ellipsis H, Standard White, (detail)
Loading...
Salvataggio in corso...

Configure your ELLIPSIS_H

Configure your ELLIPSIS_H

Ellipsis_H
Ellipsis_H 2
Choose most used
Cancel selection
Connection top/bottom with angle valve
Connection left/right with angle valve
50mm connection with angle valve
Select valve finish

-

Thermal power

Discover accessories

APPUFIORE APPUQUADRO APPUTONDO ASTEUTONDO20 ASTEUQUAD20
VALKROSQUCU VALKRODIRCU VALKRO50SQUCU VALKRO50DIRCU VALKROSALVCU VALKROSQMIST KITMONESC TESTELIQ3
VALKITCOPTU VALKITCOPT
ATTCHE430
AMENSPAVPA

Construction features

  • manifolds with a 30 mm diameter circular section
  • tubes made of sheet steel with a 50x25 mm elliptical section
  • manifold threading 1/2” Gas right
  • maximum working pressure 4 bar
  • maximum working temperature 95°C
Ellipsis_H

Model Depth (mm) Length (mm) Conn. centre (mm) Weight (kg) Capacity (lt)
520 53,0 520 470 0,75 0,50
650 53,0 650 600 0,88 0,61
700 53,0 700 650 0,93 0,65
920 53,0 920 870 1,15 0,84
1020 53,0 1020 970 1,25 0,93
1220 53,0 1220 1170 1,45 1,09
1520 53,0 1520 1470 1,75 1,35
1820 53,0 1820 1770 2,05 1,60
2020 53,0 2020 1970 2,25 1,77

(*) Thanks to the high performance of Irsap ELLIPSIS_H Horizontal radiators, the ideal Δt for low temperature projects is Δt at 30°C.

For Δt different from 50°C use the formula: Q=Qn (Δt / 50)n

Standard equipment
  • wall fixing systems with screws and anchors
  • 1/2” blind plug
  • piper cover kit
  • 1/2” air vent
Thermal output per linear metre
Number of Elements 4 6 8 10 12 14 16 18 20 22 24 26 28 30
Btu/h at Δt=50°C 920,4 1.380,6 1.837,5 2.296,1 2.761,2 3.221,5 3.681,7 4.141,9 4.602,1 5.062,3 5.522,5 5.982,7 6.442,9 6.903,1
Yield per linear meter Watt at Δt=50°C 269,6 404,4 538,2 672,5 808,8 943,6 1.078,4 1.213,2 1.348,0 1.482,8 1.617,6 1.752,4 1.887,2 2.022,0
Yield per linear meter Watt at Δt=40°C 202,1 304,1 403,1 506,6 611,8 716,5 821,9 927,9 1.034,7 1.142,2 1.250,4 1.359,2 1.468,8 1.578,9
Yield per linear meter Watt at Δt=30°C 139,4 210,5 277,7 351,5 426,9 502,4 579,0 656,8 735,8 815,9 897,2 979,6 1.063,1 1.147,8
Yield per linear meter Watt at Δt=20°C 82,5 125,4 164,2 210,1 257,0 304,6 353,4 403,6 455,0 507,8 561,9 617,4 674,2 732,3
Exponent change 1,292 1,278 1,295 1,270 1,251 1,234 1,217 1,201 1,185 1,169 1,154 1,139 1,123 1,108

H
= Height (mm)
E
= N° Elem.
H Height (mm) E N° Elem.   520 650 700 920 1020 1220 1520 1820 2020
240 4 Watt =   W =  140 175 189 248 275 329 410 491 545
360 6 Watt =   W =  210 263 283 372 412 493 615 736 817
480 8 Watt =   W =  280 350 377 495 549 657 818 980 1087
600 10 Watt =   W =  350 437 471 619 686 821 1022 1224 1359
720 12 Watt =   W =  421 526 566 744 825 987 1229 1472 1634
840 14 Watt =   W =  491 613 661 868 962 1151 1434 1717 1906
960 16 Watt =   W =  561 701 755 992 1100 1316 1639 1963 2178
1080 18 Watt =   W =  631 789 849 1116 1237 1480 1844 2208 2451
1200 20 Watt =   W =  701 876 944 1240 1375 1645 2049 2453 2723
1320 22 Watt =   W =  771 964 1038 1364 1512 1809 2254 2699 2995
1440 24 Watt =   W =  841 1051 1132 1488 1650 1973 2459 2944 -
1560 26 Watt =   W =  911 1139 1227 1612 1787 2138 2664 - -
1680 28 Watt =   W =  981 1227 1321 1736 1925 2302 2869 - -
1800 30 Watt =   W =  1051 1314 1415 1860 2062 2467 3073 - -
