Ellipsis_H 2

The ELLIPSIS_H 2 Horizontal towel warmer is a modern reinterpretation of decorative radiators. Functional and aesthetically appealing, it is characterized by elliptical tube elements. ELLIPSIS_H 2 Horizontal is available in 9 heights, from 4 to 30 elements and thermal powers from 218 to 3189 Watt.

The images on this page have the sole purpose of depicting the product. Finishes and models may not have a perfect match with the actual product.

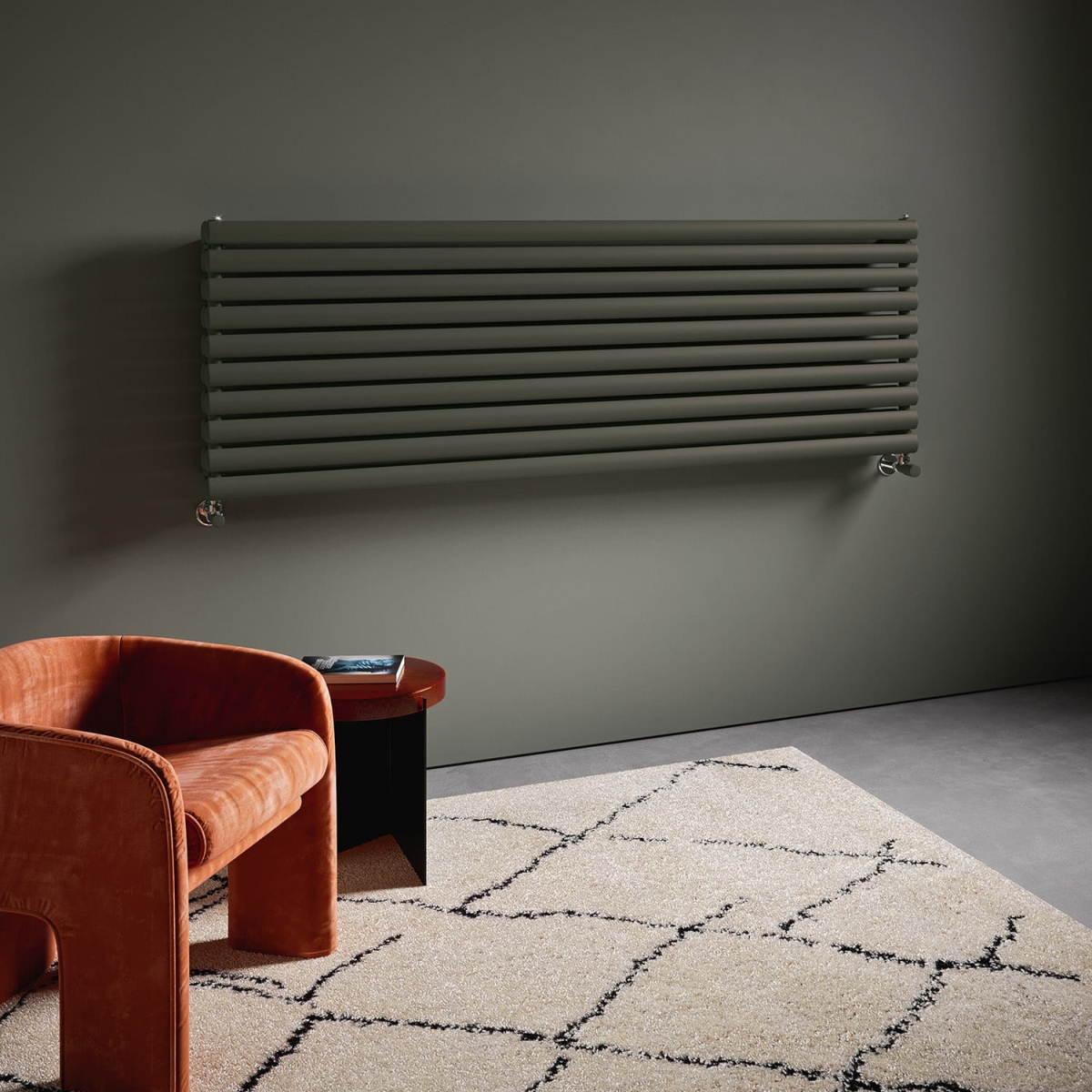

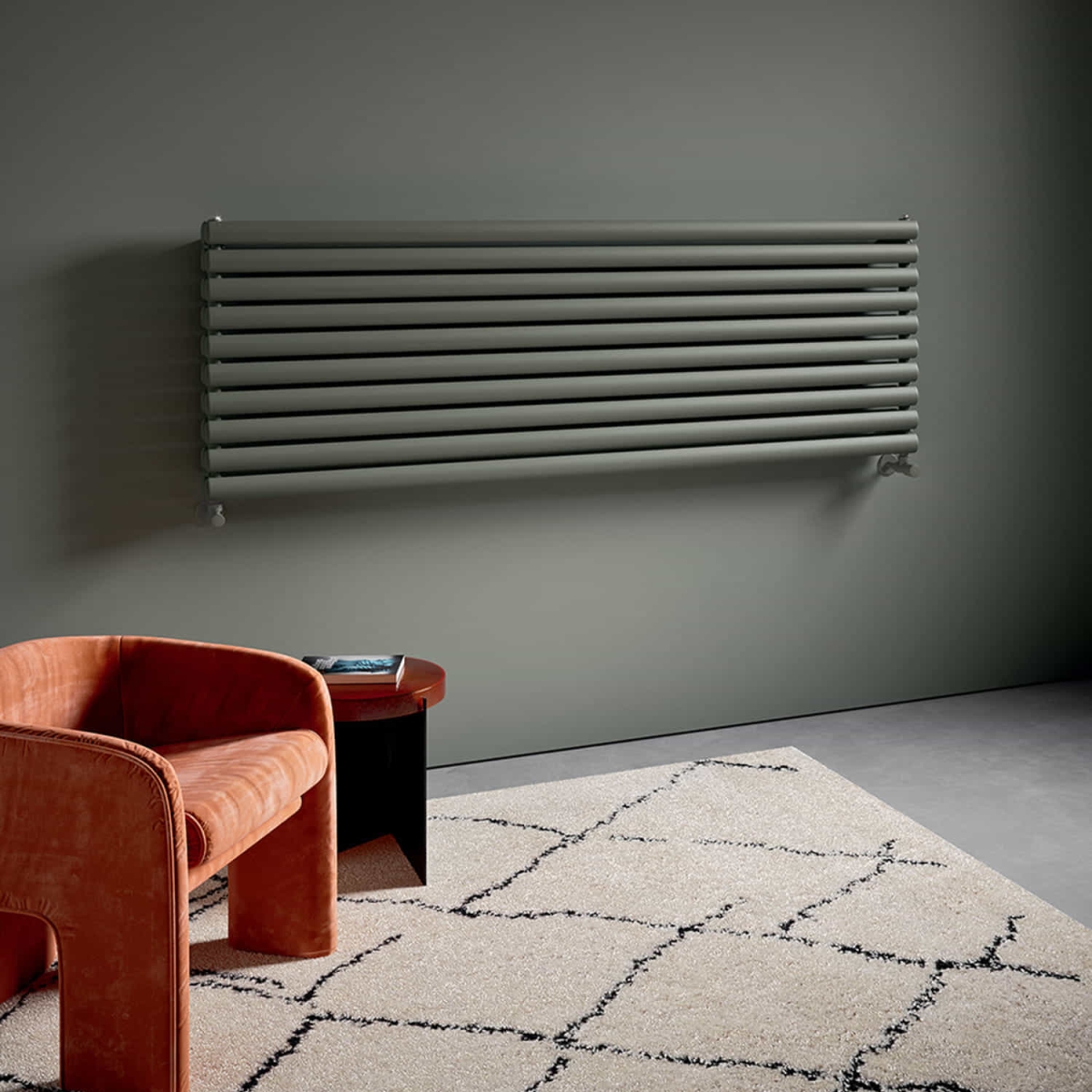

Ellipsis 2, Horizontal, 10 elements, Hight 600 mm, Lenght 1520 mm, Agave Ellipsis 2, Horizontal, 10 elements, Hight 600 mm, Lenght 1520 mm, Agave, (detail) Ellipsis H 2, Horizontal, Hight 480 mm, Lenght 1820 mm, Agave Ellipsis H 2, Horizontal, Agave, (detail) Ellipsis 2, Horizontal, 10 elements, Hight 600 mm, Lenght 1520 mm, Brown Rust Matt - RAL 8004
Loading...
Salvataggio in corso...

Configure your ELLIPSIS_H

Configure your ELLIPSIS_H

Ellipsis_H
Ellipsis_H 2
Choose most used
Cancel selection
Connection top/bottom with angle valve
Connection left/right with angle valve
50mm connection with angle valve
Select valve finish

-

Thermal power

Discover accessories

APPUFIORE APPUQUADRO APPUTONDO ASTEUTONDO20 ASTEUQUAD20
VALKROSQUCU VALKRODIRCU VALKRO50SQUCU VALKRO50DIRCU VALKROSALVCU VALKROSQMIST KITMONESC TESTELIQ3
VALKITCOPTU VALKITCOPT
AMENSPAVPA
KIT2MORSA28 ATTMORS28

Construction features

  • manifolds with a 30 mm diameter circular section
  • tubes made of sheet steel with a 50x25 mm elliptical section
  • manifold threading 1/2” Gas right
  • maximum working pressure 4 bar
  • maximum working temperature 95°C
Ellipsis_H 2

Model Depth (mm) Length (mm) Conn. centre (mm) Weight (kg) Capacity (lt)
520 76,0 520 470 1,34 0,94
650 76,0 650 600 1,60 1,16
700 76,0 700 650 1,70 1,25
920 76,0 920 870 2,15 1,62
1020 76,0 1020 970 2,35 1,79
1220 76,0 1220 1170 2,75 2,12
1520 76,0 1520 1470 3,35 2,63
1820 76,0 1820 1770 3,95 3,14
2020 76,0 2020 1970 4,35 3,48

(*) Thanks to the high performance of Irsap ELLIPSIS_H 2 Horizontal radiators, the ideal Δt for low temperature projects is Δt at 30°C.

For Δt different from 50°C use the formula: Q=Qn (Δt / 50)n

Standard equipment
  • wall fixing systems with screws and anchors
  • 1/2” blind plug
  • piper cover kit
  • 1/2” air vent
Thermal output per linear metre
Number of Elements 4 6 8 10 12 14 16 18 20 22 24 26 28 30
Btu/h at Δt=50°C 1.432,5 2.148,8 2.861,7 3.578,0 4.297,6 5.013,9 5.730,2 6.446,4 7.162,7 7.879,0 8.595,2 9.311,5 10.027,8 10.744,1
Yield per linear meter Watt at Δt=50°C 419,6 629,4 838,2 1.048,0 1.258,8 1.468,6 1.678,4 1.888,2 2.098,0 2.307,8 2.517,6 2.727,5 2.937,3 3.147,1
Yield per linear meter Watt at Δt=40°C 314,5 473,2 632,5 793,8 957,0 1.120,5 1.285,2 1.451,0 1.617,9 1.785,9 1.954,9 2.124,9 2.296,0 2.468,0
Yield per linear meter Watt at Δt=30°C 216,9 327,7 440,0 554,8 672,0 790,6 911,0 1.033,3 1.157,3 1.283,2 1.410,8 1.540,2 1.671,3 1.804,2
Yield per linear meter Watt at Δt=20°C 128,5 195,2 263,8 334,9 408,3 483,6 560,9 640,3 721,7 805,2 890,8 978,5 1.068,3 1.160,1
Exponent change 1,292 1,278 1,262 1,245 1,229 1,212 1,196 1,180 1,165 1,149 1,134 1,119 1,104 1,089

H
= Height (mm)
E
= N° Elem.
H Height (mm) E N° Elem.   520 650 700 920 1020 1220 1520 1820 2020
240 4 Watt =   W =  218 273 294 386 428 512 638 764 848
360 6 Watt =   W =  327 409 441 579 642 768 957 1146 1271
480 8 Watt =   W =  436 545 587 771 855 1023 1274 1526 1693
600 10 Watt =   W =  545 681 734 964 1069 1279 1593 1907 2117
720 12 Watt =   W =  655 818 881 1158 1284 1536 1913 2291 2543
840 14 Watt =   W =  764 955 1028 1351 1498 1792 2232 2673 2967
960 16 Watt =   W =  873 1091 1175 1544 1712 2048 2551 3055 -
1080 18 Watt =   W =  982 1227 1322 1737 1926 2304 2870 - -
1200 20 Watt =   W =  1091 1364 1469 1930 2140 2560 3189 - -
1320 22 Watt =   W =  1200 1500 1615 2123 2354 2816 - - -
1440 24 Watt =   W =  1309 1636 1762 2316 2568 3072 - - -
1560 26 Watt =   W =  1418 1773 1909 2509 2782 - - - -
1680 28 Watt =   W =  1527 1909 2056 2702 2996 - - - -
1800 30 Watt =   W =  1636 2046 2203 2895 - - - - -

Type Description Document Downloads

Technical document

Catalogs

Catalog 2023 Catalog 2023

Connections

Decorative radiators hydraulic connections Allacciamenti arredo EN

Catalogs

Color chart Color chart

Installation Manual

FOISTR0394M FOISTR0394M

Installation Manual

FOISTR0431M FOISTR0431M

Installation Manual

FOISTR1098M FOISTR1098M

Type Description Document Downloads

3D Model

ELLIPSIS_H_2_1800x8 ELLIPSIS_H_2_1800x8
