Ellipsis_V

ELLIPSIS radiators integrate in a discreet and elegant way with the space that surrounds them, always offering maximum environmental comfort. ELLIPSIS_V Vertical is available in 9 heights, from 4 to 30 elements and thermal powers from 149 to 3158 Watt.

The images on this page have the sole purpose of depicting the product. Finishes and models may not have a perfect match with the actual product.

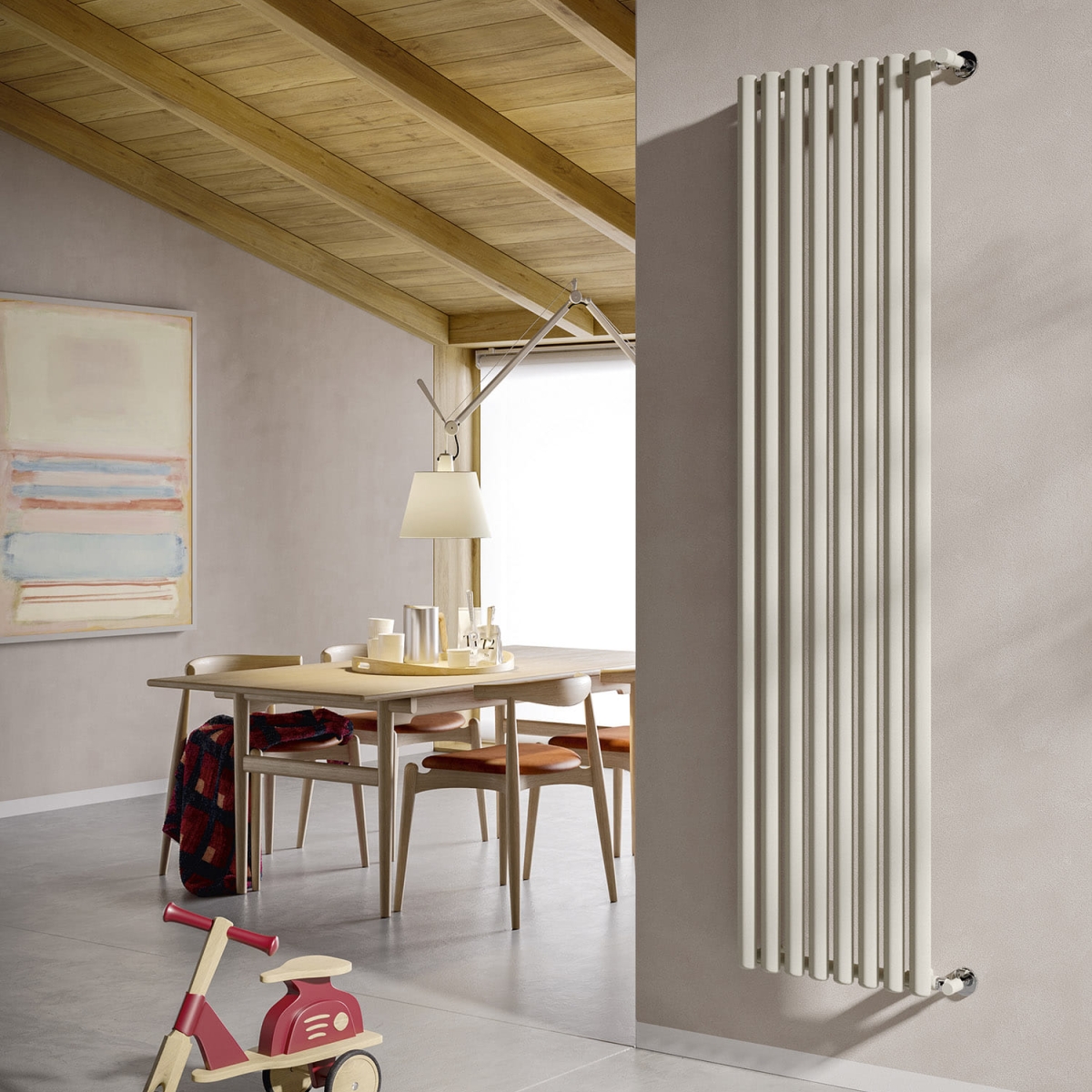

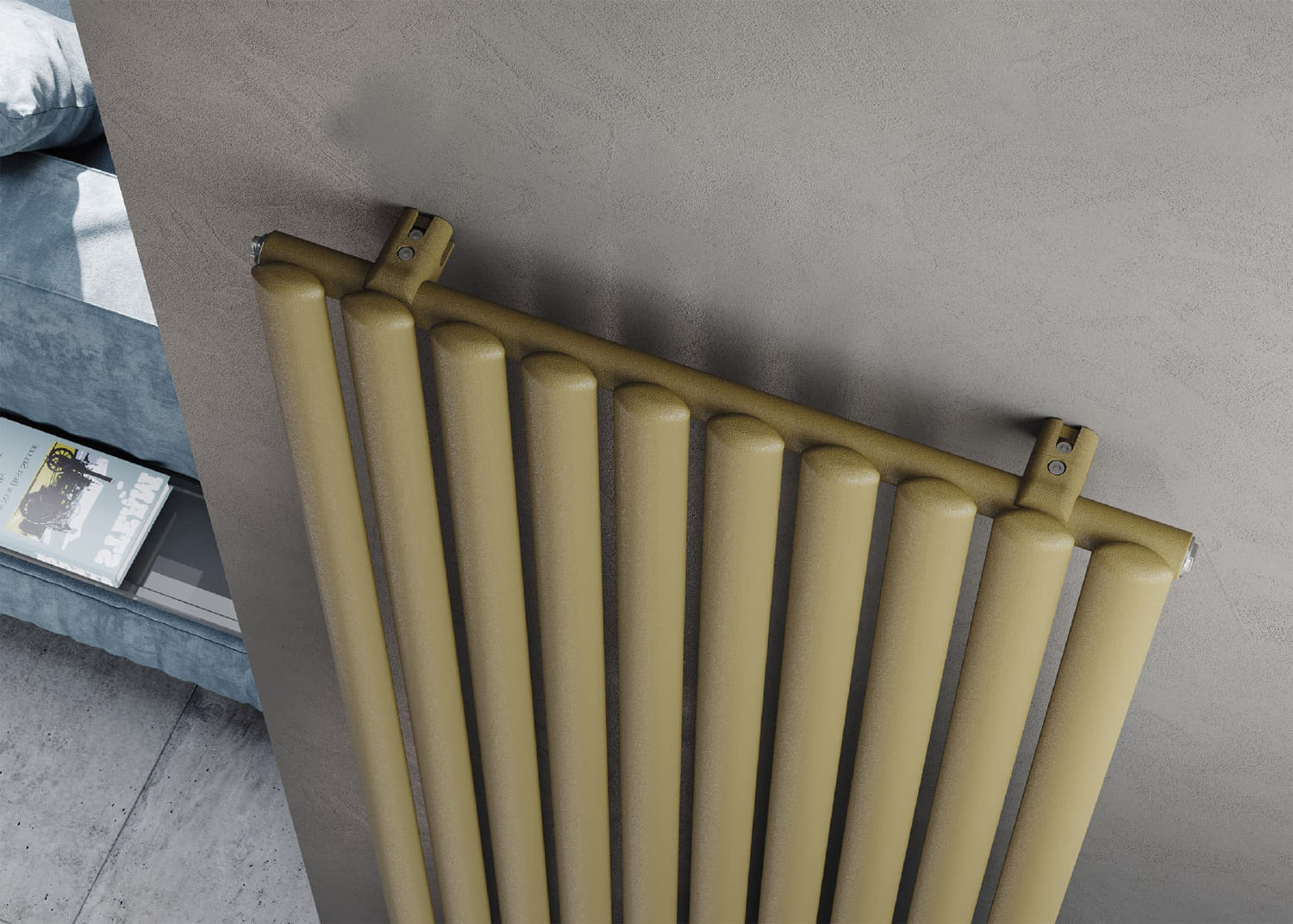

Ellipsis, Vertical, 8 elements, Hight 2020 mm, Lenght 480 mm, Matt White Ellipsis, Vertical, 8 elements, Hight 2020 mm, Lenght 480 mm, Matt White, (detail) Ellipsis V, Vertical, 10 elements, Hight 1820 mm, Lenght 600 mm, Sunstone Ellipsis V, Sunstone, (detail)
Loading...
Salvataggio in corso...

Configure your ELLIPSIS_V

Loader Loading...
Finishes and models represented are not to be considered binding and may not have a perfect correspondence with the delivered product.

Configure your ELLIPSIS_V

Ellipsis_V
Ellipsis_V 2
Choose most used
Cancel selection
Connection top/bottom with angle valve
Connection left/right with angle valve
50mm connection with angle valve
Select valve finish
Select wall
Select floor
Dark travertine
Light travertine
Tiles
Mahogany
Oak
Wooden Planks

-

Thermal power

Discover accessories

APPUFIORE APPUQUADRO APPUTONDO
VALKROSQUCU VALKRODIRCU VALKRO50SQUCU VALKRO50DIRCU VALKROSALVCU VALKROSQMIST KITMONESC TESTELIQ3
VALKITCOPTU VALKITCOPT
ATTCHE430
AMENSPAVPA

Construction features

  • manifolds with a 30 mm diameter circular section
  • tubes made of sheet steel with a 50x25 mm elliptical section
  • manifold threading 1/2” Gas right
  • maximum working pressure 4 bar
  • maximum working temperature 95°C
Ellipsis_V

Model Depth (mm) Height (mm) Conn. centre (mm) Weight (kg) Capacity (lt) Exponent
520 53,0 520 470 0,75 0,50 127,1 32,0 37,3 28,0 19,4 11,5 1,280
650 53,0 650 600 0,88 0,61 158,7 40,0 46,5 34,8 24,0 14,2 1,295
700 53,0 700 650 0,93 0,65 171,5 43,2 50,3 37,6 25,9 15,3 1,295
920 53,0 920 870 1,15 0,84 222,6 56,1 65,3 48,7 33,3 19,6 1,314
1020 53,0 1020 970 1,25 0,93 245,7 61,9 72,0 53,7 36,8 21,6 1,314
1220 53,0 1220 1170 1,45 1,09 290,9 73,3 85,3 63,6 43,7 25,7 1,310
1520 53,0 1520 1470 1,75 1,35 359,1 90,5 105,3 78,6 54,0 31,8 1,306
1820 53,0 1820 1770 2,05 1,60 428,2 107,9 125,5 93,9 64,5 38,1 1,302
2020 53,0 2020 1970 2,25 1,77 474,3 119,5 139,0 104,0 71,6 42,3 1,300

(*)Thanks to the high performance of Irsap ELLIPSIS_V Vertical radiators, the ideal Δt for low temperature projects is Δt at 30°C.

For Δt different from 50°C use the formula: Q=Qn (Δt / 50)n

Standard equipment
  • wall fixing systems with screws and anchors
  • 1/2” blind plug
  • piper cover kit
  • 1/2” air vent

L
= Length (mm)
E
= N° Elem.
L Length (mm) E N° Elem.   520 650 700 920 1020 1220 1520 1820 2020
240 4 Watt =   W =  149 186 201 261 288 341 421 502 556
360 6 Watt =   W =  224 279 302 392 432 512 632 753 834
480 8 Watt =   W =  298 372 402 522 576 682 842 1004 1112
600 10 Watt =   W =  373 465 503 653 720 853 1053 1255 1390
720 12 Watt =   W =  447 558 603 783 864 1023 1263 1506 1668
840 14 Watt =   W =  522 651 704 914 1008 1194 1474 1757 1946
960 16 Watt =   W =  596 744 804 1044 1152 1364 1684 2008 2224
1080 18 Watt =   W =  671 837 905 1175 1296 1535 1895 2259 2502
1200 20 Watt =   W =  745 930 1005 1305 1440 1705 2105 2510 2780
1320 22 Watt =   W =  820 1023 1106 1436 1584 1876 2316 2761 3058
1440 24 Watt =   W =  894 1116 1206 1566 1728 2046 2526 3012 -
1560 26 Watt =   W =  969 1209 1307 1697 1872 2217 2737 - -
1680 28 Watt =   W =  1043 1302 1407 1827 2016 2387 2947 - -
1800 30 Watt =   W =  1118 1395 1508 1958 2160 2558 3158 - -
