Ellipsis_V 2

With its versatility, ELLIPSIS_V 2 Vertical transforms the space becoming the absolute protagonist of any style of furniture. ELLIPSIS_V 2 Vertical is available in 9 heights, from 4 to 30 elements and thermal powers from 230 to 3205 Watt.

The images on this page have the sole purpose of depicting the product. Finishes and models may not have a perfect match with the actual product.

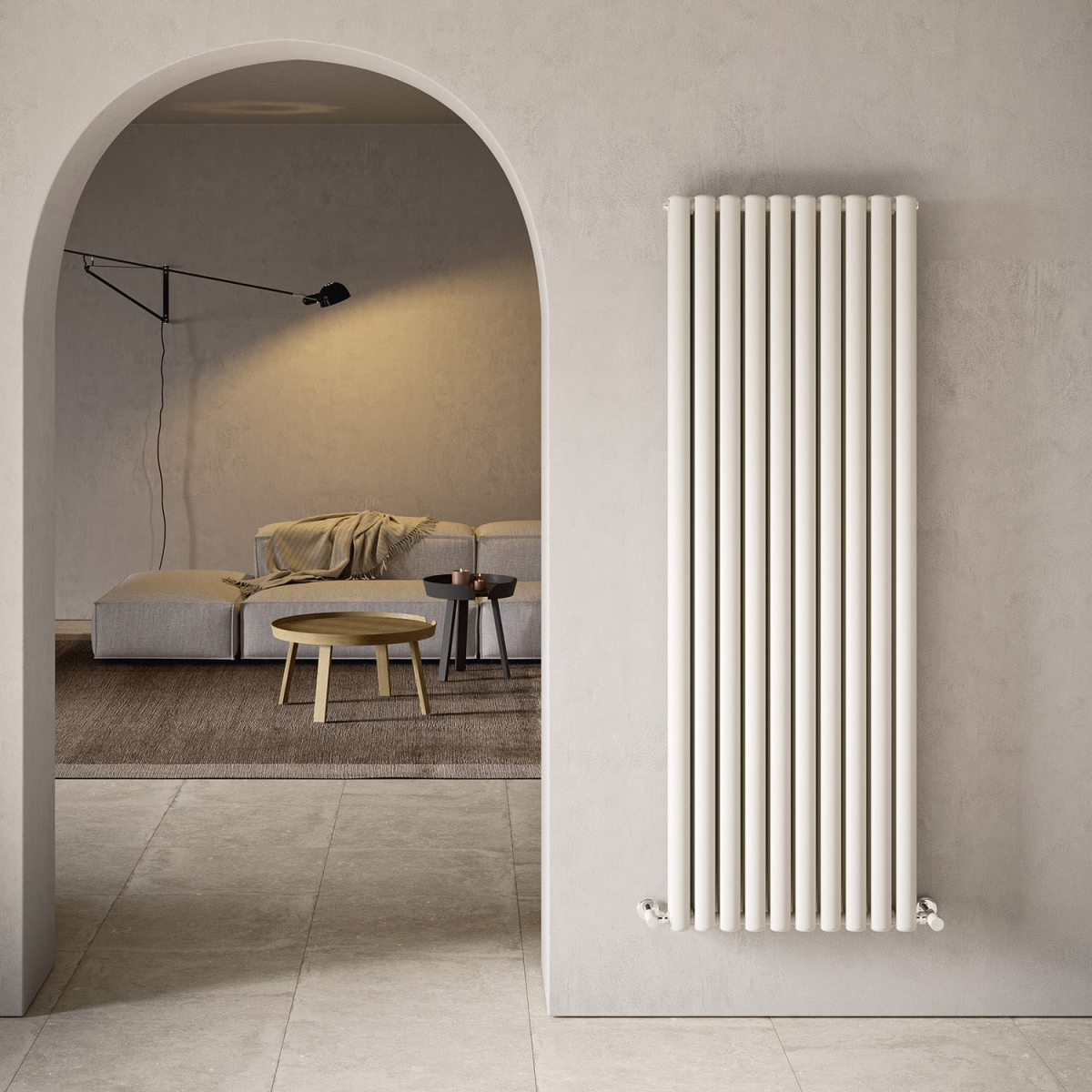

Ellipsis 2, Vertical, 10 elements, Hight 1820 mm, Lenght 600 mm, Matt White Ellipsis 2, Vertical, 10 elements, Hight 1820 mm, Lenght 600 mm, Matt White, (detail) Ellipsis V 2, Vertical, 10 elements, Hight 2020 mm, Lenght 600 mm, Sunstone Ellipsis V 2, Sunstone, (detail)
Loading...
Salvataggio in corso...

Configure your ELLIPSIS_V

Loader Loading...
Finishes and models represented are not to be considered binding and may not have a perfect correspondence with the delivered product.

Configure your ELLIPSIS_V

Ellipsis_V
Ellipsis_V 2
Choose most used
Cancel selection
Connection top/bottom with angle valve
Connection left/right with angle valve
50mm connection with angle valve
Select valve finish
Select wall
Select floor
Dark travertine
Light travertine
Tiles
Mahogany
Oak
Wooden Planks

-

Thermal power

Discover accessories

APPUFIORE APPUQUADRO APPUTONDO
VALKROSQUCU VALKRODIRCU VALKRO50SQUCU VALKRO50DIRCU VALKROSALVCU VALKROSQMIST KITMONESC TESTELIQ3
VALKITCOPTU VALKITCOPT
AMENSPAVPA
KIT2MORSA28 ATTMORS28

Construction features

  • manifolds with a 30 mm diameter circular section
  • tubes made of sheet steel with a 50x25 mm elliptical section
  • manifold threading 1/2” Gas right
  • maximum working pressure 4 bar
  • maximum working temperature 95°C
Ellipsis_V 2

Model Depth (mm) Height (mm) Conn. centre (mm) Weight (kg) Capacity (lt) Exponent
520 76,0 520 470 1,34 0,94 196,1 49,4 57,5 43,2 29,9 17,8 1,280
650 76,0 650 600 1,60 1,16 245,1 61,8 71,9 53,8 37,1 21,9 1,295
700 76,0 700 650 1,70 1,25 264,0 66,5 77,4 58,0 39,9 23,6 1,295
920 76,0 920 870 2,15 1,62 342,5 86,3 100,4 74,9 51,3 30,1 1,314
1020 76,0 1020 970 2,35 1,79 376,2 94,8 110,3 82,2 56,3 33,1 1,314
1220 76,0 1220 1170 2,75 2,12 443,9 111,9 130,1 97,1 66,6 39,2 1,310
1520 76,0 1520 1470 3,35 2,63 546,8 137,8 160,3 119,7 82,2 48,4 1,306
1820 76,0 1820 1770 3,95 3,14 648,6 163,5 190,1 142,2 97,7 57,6 1,302
2020 76,0 2020 1970 4,35 3,48 714,4 180,1 209,4 156,7 107,8 63,7 1,300

(*)Thanks to the high performance of Irsap ELLIPSIS_V 2 Vertical radiators, the ideal Δt for low temperature projects is Δt at 30°C.

For Δt different from 50°C use the formula: Q=Qn (Δt / 50)n

Standard equipment
  • wall fixing systems with screws and anchors
  • 1/2” blind plug
  • piper cover kit
  • 1/2” air vent

L
= Length (mm)
E
= N° Elem.
L Length (mm) E N° Elem.   520 650 700 920 1020 1220 1520 1820 2020
240 4 Watt =   W =  230 287 309 402 441 520 641 760 837
360 6 Watt =   W =  345 431 464 602 662 781 962 1141 1256
480 8 Watt =   W =  460 575 619 803 882 1041 1282 1521 1675
600 10 Watt =   W =  575 719 774 1004 1103 1301 1603 1901 2094
720 12 Watt =   W =  690 862 928 1205 1323 1561 1923 2281 2512
840 14 Watt =   W =  805 1006 1083 1405 1544 1821 2244 2661 2931
960 16 Watt =   W =  920 1150 1238 1606 1764 2082 2564 3041 -
1080 18 Watt =   W =  1035 1293 1393 1807 1985 2342 2885 - -
1200 20 Watt =   W =  1150 1437 1547 2008 2205 2602 3205 - -
1320 22 Watt =   W =  1265 1581 1702 2208 2426 2862 - - -
1440 24 Watt =   W =  1380 1724 1857 2409 2646 3122 - - -
1560 26 Watt =   W =  1494 1868 2012 2610 2867 - - - -
1680 28 Watt =   W =  1609 2012 2166 2811 3087 - - - -
1800 30 Watt =   W =  1724 2156 2321 3011 - - - - -
