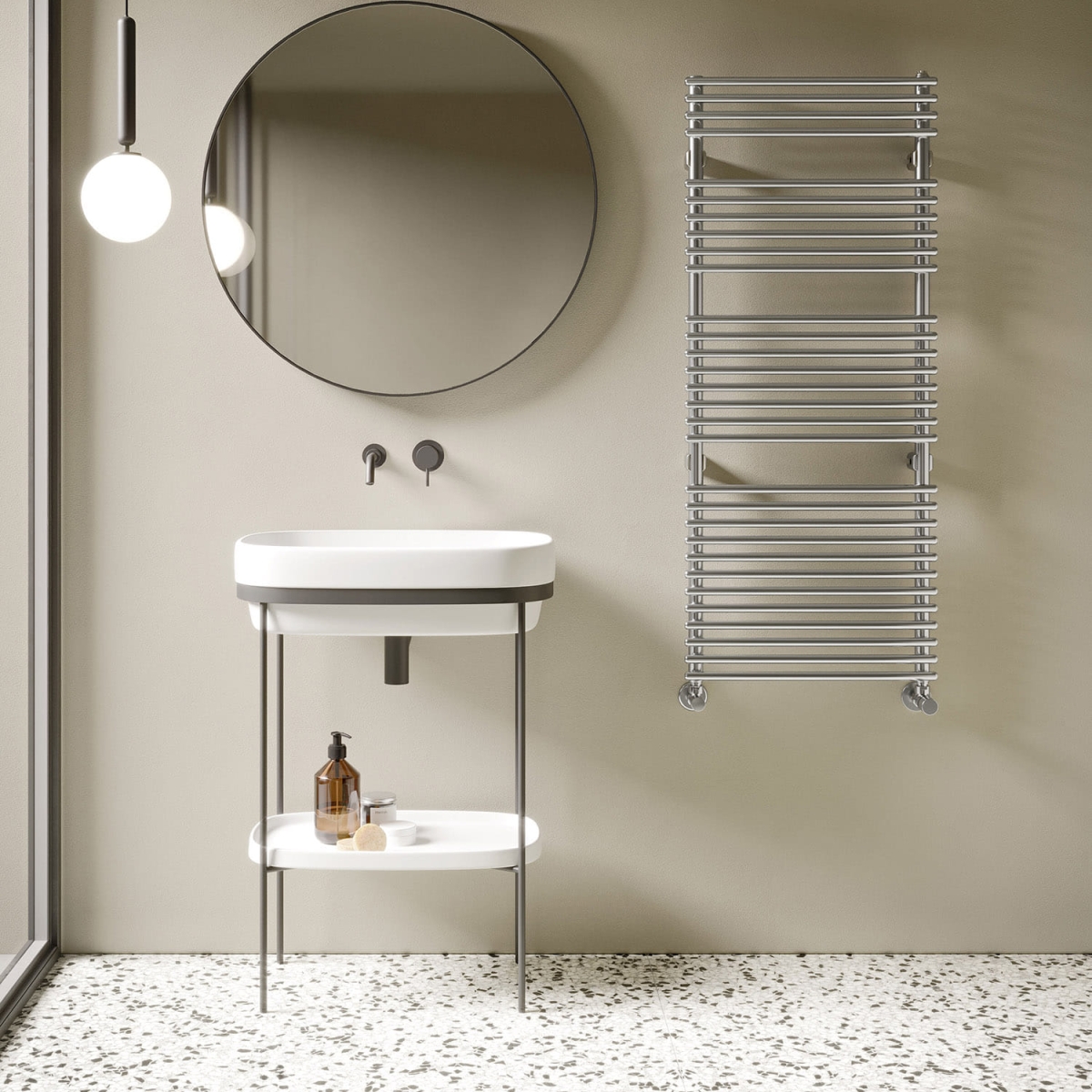

Flauto chrome-plated
Thanks to the sobriety of the design and its performance, FLAUTO CHROME-PLATED is ideal for any environment or living space. It is available in 4 heights and 5 widths from 456 to 756 mm. With the insertion of the electric resistance (optional) it can work even in periods when the system is off.
The images on this page have the sole purpose of depicting the product. Finishes and models may not have a perfect match with the actual product.
Configure your Flauto chrome-plated
Configure your Flauto chrome-plated
-
Thermal power
Discover accessories
Loading...
Construction features
- steel towel warmer radiator
- horizontal elements featuring round tubes 18 mm diameter
- side manifolds with a 30 mm round section
- manifold threading 1/2” Gas right
- maximum working pressure 8 bar
- maximum working temperature 95°C
| Model | Depth (mm) | Height (mm) | Width (mm) | Conn. centre (mm) | Weight (kg) | Capacity (lt) |
|
Exponent | Mixed Function (Watts) |
|---|---|---|---|---|---|---|---|---|---|
| 810 20 rails 2 espaces | 46,0 | 810 | 456 | 406 | 5,61 | 2,75 | 926,0 233,4 271,4 208,6 148,6 92,1 | 1,180 | 300 |
| 810 20 rails 2 espaces | 46,0 | 810 | 506 | 456 | 6,07 | 2,95 | 1.022,9 257,8 299,8 230,5 164,2 101,8 | 1,178 | 300 |
| 810 20 rails 2 espaces | 46,0 | 810 | 556 | 506 | 6,53 | 3,14 | 1.119,5 282,2 328,1 252,3 179,8 111,6 | 1,177 | 300 |
| 810 20 rails 2 espaces | 46,0 | 810 | 606 | 556 | 6,98 | 3,34 | 1.216,4 306,6 356,5 274,2 195,5 121,4 | 1,176 | 300 |
| 810 20 rails 2 espaces | 46,0 | 810 | 756 | 706 | 8,36 | 3,93 | 1.506,4 379,7 441,5 339,9 242,6 150,8 | 1,172 | 400 |
| 1218 30 rails 3 espaces | 46,0 | 1218 | 456 | 406 | 8,39 | 4,13 | 1.359,3 342,6 398,4 303,4 213,6 130,2 | 1,220 | 400 |
| 1218 30 rails 3 espaces | 46,0 | 1218 | 506 | 456 | 9,08 | 4,43 | 1.480,1 373,1 433,8 330,5 232,8 142,0 | 1,218 | 400 |
| 1218 30 rails 3 espaces | 46,0 | 1218 | 556 | 506 | 9,77 | 4,72 | 1.600,6 403,4 469,1 357,6 252,0 153,9 | 1,217 | 400 |
| 1218 30 rails 3 espaces | 46,0 | 1218 | 606 | 556 | 10,46 | 5,01 | 1.721,4 433,9 504,5 384,7 271,3 165,8 | 1,215 | 400 |
| 1218 30 rails 3 espaces | 46,0 | 1218 | 756 | 706 | 12,52 | 5,90 | 2.083,0 525,0 610,5 466,2 329,3 201,7 | 1,209 | 400 |

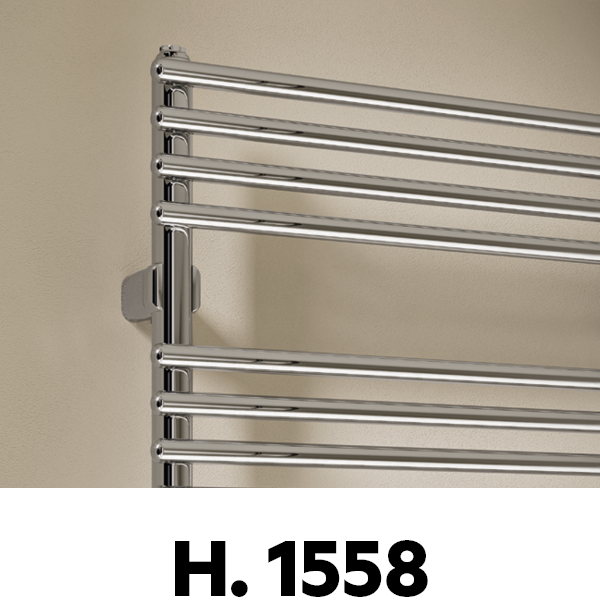

| 1558 38 rails 4 espaces | 46,0 | 1558 | 456 | 406 | 10,64 | 5,25 | 1.761,3 443,9 516,2 391,2 273,6 165,3 | 1,243 | 400 |
| 1558 38 rails 4 espaces | 46,0 | 1558 | 506 | 456 | 11,51 | 5,63 | 1.926,8 485,6 564,7 428,9 300,9 182,5 | 1,232 | 400 |
| 1558 38 rails 4 espaces | 46,0 | 1558 | 556 | 506 | 12,38 | 6,00 | 2.092,2 527,4 613,2 466,8 328,5 200,1 | 1,222 | 400 |
| 1558 38 rails 4 espaces | 46,0 | 1558 | 606 | 556 | 13,25 | 6,37 | 2.258,1 569,2 661,8 505,0 356,4 218,1 | 1,212 | 700 |
| 1558 38 rails 4 espaces | 46,0 | 1558 | 756 | 706 | 15,87 | 7,49 | 2.754,5 694,3 807,3 620,4 441,7 273,7 | 1,180 | 700 |

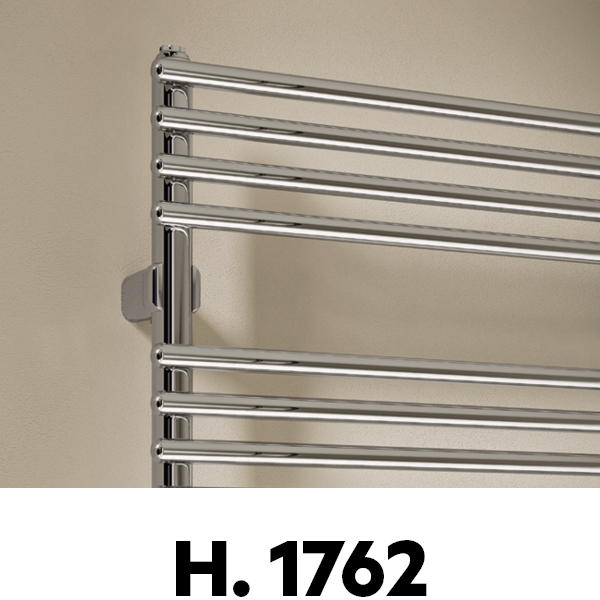

| 1762 44 rails 4 espaces | 46,0 | 1762 | 456 | 406 | 12,24 | 6,03 | 1.979,3 498,9 580,1 439,6 307,4 185,7 | 1,243 | 400 |
| 1762 44 rails 4 espaces | 46,0 | 1762 | 506 | 456 | 13,25 | 6,47 | 2.162,2 545,0 633,7 480,9 336,9 204,1 | 1,237 | 700 |
| 1762 44 rails 4 espaces | 46,0 | 1762 | 556 | 506 | 14,26 | 6,90 | 2.345,1 591,1 687,3 522,3 366,7 222,7 | 1,230 | 700 |
| 1762 44 rails 4 espaces | 46,0 | 1762 | 606 | 556 | 15,27 | 7,33 | 2.528,0 637,2 740,9 563,9 396,7 241,6 | 1,223 | 700 |
| 1762 44 rails 4 espaces | 46,0 | 1762 | 756 | 706 | 18,29 | 8,62 | 3.076,6 775,5 901,7 689,4 487,8 299,5 | 1,203 | 1000 |
Thanks to the high performance of Irsap FLAUTO CHROME-PLATED radiators, the ideal Δt for low temperature projects is Δt at 30°C.
For Δt different from 50°C use the formula: Q=Qn (Δt / 50)n
Standard equipment
- pair of CHELA wall brackets
- wall spacer
- 1/2" chrome-plated air vent
