Novo Cult

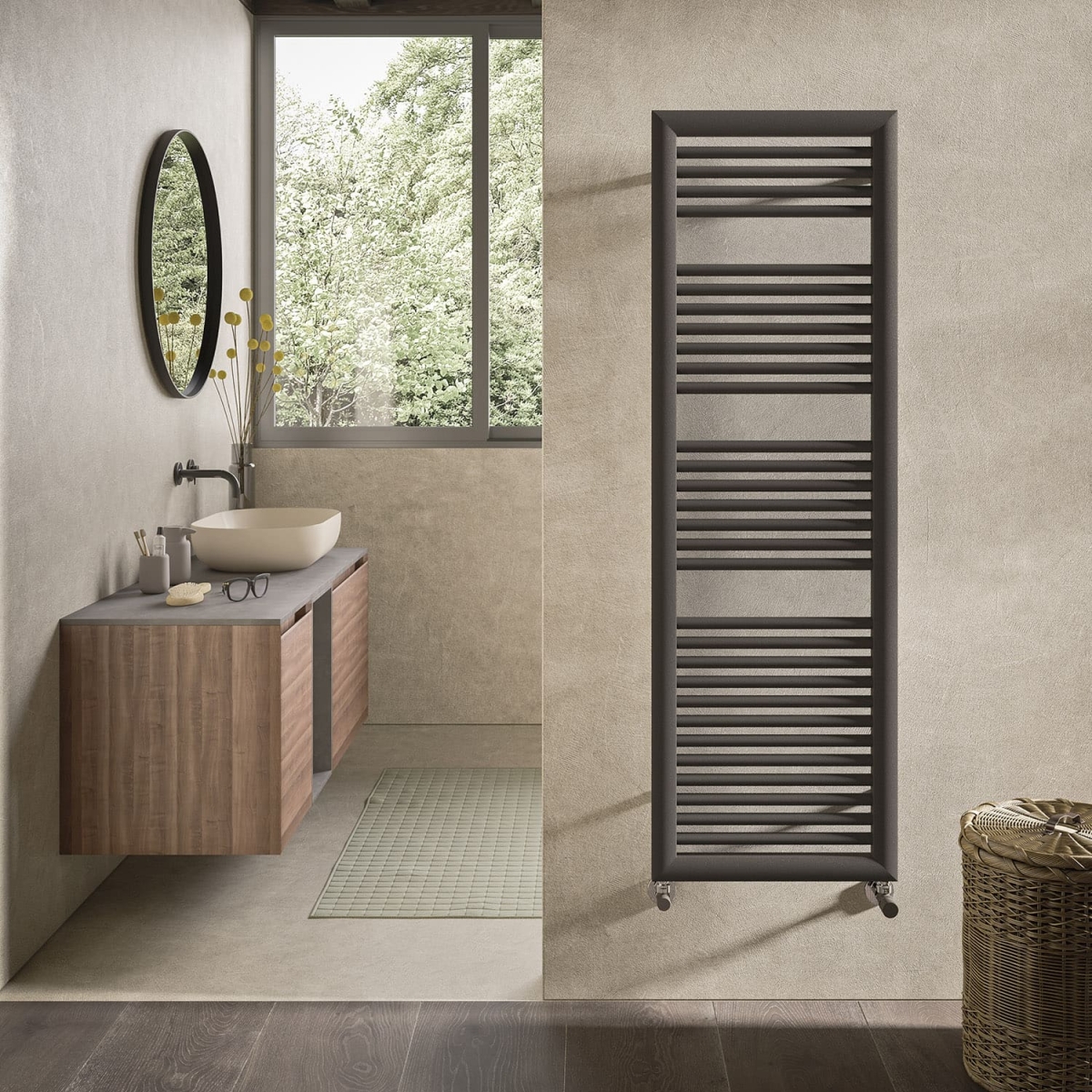

NOVO CULT represents the contemporary appeal of traditional style. A refined Termoarredo which, thanks to its important hand-finished rounded cornice, embodies all the technical and formal features of the classic bathroom radiator.

Configure Technical document

The images on this page have the sole purpose of depicting the product. Finishes and models may not have a perfect match with the actual product.

Configure your Novo Cult

807 15 rails 1 espace

1207 23 rails 2 espaces

1567 30 rails 3 espaces

1807 36 rails 3 espaces

3 plugs 1/2" and 1 blind plug, standards connections

50 mm bottom connection

Choose most used

Connection left/right with angle valve

50mm connection with angle valve

Select valve finish

Standard white

Chrome

MATCHING YOUR RADIATOR

-

Thermal power

Showroom Find Showroom

Discover accessories

Construction features

steel towel warmer radiator
horizontal elements featuring round tubes 25 mm diameter
side manifolds with semi-oval section 50x36,5 mm
manifold threading and central connections (50 mm) 1/2” Gas right
maximum working pressure 6 bar
maximum working temperature 95°C

10 year Guarantee

Low temperature

Hydraulic radiator

Model	Depth (mm)	Height (mm)	Width (mm)	Conn. centre (mm)	Weight (kg)	Capacity (lt)		Exponent	Mixed Function (Watts)
01
807 15 rails 1 espace	36,5	807	450	406	7,79	5,61	1.334,1 336,3 391,0 297,4 209,0 127,1	1,226	400
807 15 rails 1 espace	36,5	807	500	456	8,40	6,08	1.467,2 369,8 430,0 326,8 229,5 139,4	1,229	400
807 15 rails 1 espace	36,5	807	600	556	9,64	7,00	1.729,9 436,0 507,0 384,8 269,7 163,4	1,236	400
1207 23 rails 2 espaces	36,5	1207	450	406	11,01	7,97	1.900,5 479,0 557,0 420,3 292,4 175,3	1,262	400
1207 23 rails 2 espaces	36,5	1207	500	456	11,84	8,60	2.081,3 524,6 610,0 460,5 320,4 192,2	1,260	400
1207 23 rails 2 espaces	36,5	1207	600	556	13,50	9,87	2.449,8 617,5 718,0 542,2 377,6 226,7	1,258	700
1567 30 rails 3 espaces	36,5	1567	450	406	13,87	10,06	2.466,9 621,8 723,0 545,2 378,9 226,8	1,265	700
1567 30 rails 3 espaces	36,5	1567	500	456	14,89	10,84	2.709,1 682,8 794,0 598,8 416,3 249,3	1,264	700
1567 30 rails 3 espaces	36,5	1567	600	556	16,92	12,40	3.193,6 805,0 936,0 706,2 491,1 294,4	1,263	1000
1807 36 rails 3 espaces	36,5	1807	450	406	16,02	11,65	2.872,9 724,1 842,0 635,9 442,9 265,9	1,258	700
1807 36 rails 3 espaces	36,5	1807	500	456	17,20	12,56	3.166,3 798,1 928,0 701,3 488,7 293,8	1,255	1000
1807 36 rails 3 espaces	36,5	1807	600	556	19,56	14,37	3.749,8 945,1 1.099,0 831,4 580,2 349,5	1,250	1000
05
807 15 rails 1 espace	36,5	807	450	50	7,79	5,61	1.334,1 336,3 391,0 297,4 209,0 127,1	1,226	400
807 15 rails 1 espace	36,5	807	500	50	8,40	6,08	1.467,2 369,8 430,0 326,8 229,5 139,4	1,229	400
807 15 rails 1 espace	36,5	807	600	50	9,64	7,00	1.729,9 436,0 507,0 384,8 269,7 163,4	1,236	400
1207 23 rails 2 espaces	36,5	1207	450	50	11,01	7,97	1.900,5 479,0 557,0 420,3 292,4 175,3	1,262	400
1207 23 rails 2 espaces	36,5	1207	500	50	11,84	8,60	2.081,3 524,6 610,0 460,5 320,4 192,2	1,260	400
1207 23 rails 2 espaces	36,5	1207	600	50	13,50	9,87	2.449,8 617,5 718,0 542,2 377,6 226,7	1,258	700
1567 30 rails 3 espaces	36,5	1567	450	50	13,87	10,06	2.466,9 621,8 723,0 545,2 378,9 226,8	1,265	700
1567 30 rails 3 espaces	36,5	1567	500	50	14,89	10,84	2.709,1 682,8 794,0 598,8 416,3 249,3	1,264	700
1567 30 rails 3 espaces	36,5	1567	600	50	16,92	12,40	3.193,6 805,0 936,0 706,2 491,1 294,4	1,263	1000
1807 36 rails 3 espaces	36,5	1807	450	50	16,02	11,65	2.872,9 724,1 842,0 635,9 442,9 265,9	1,258	700
1807 36 rails 3 espaces	36,5	1807	500	50	17,20	12,56	3.166,3 798,1 928,0 701,3 488,7 293,8	1,255	1000
1807 36 rails 3 espaces	36,5	1807	600	50	19,56	14,37	3.749,8 945,1 1.099,0 831,4 580,2 349,5	1,250	1000

Thanks to the high performance of Irsap NOVO CULT radiators, the ideal Δt for low temperature projects is Δt at 30°C.

For Δt different from 50°C use the formula: Q=Qn (Δt / 50)n

Irsap guarantees the hydraulic seal and paint of NOVO CULT radiators for 10 years, starting with sales in 2009.

Standard equipment

4 wall fixing in the same color as the radiator
air vent

Type	Description	Document	Downloads
Technical document			Downloads PDF
Catalogs	Catalog 2023	Catalog 2023	Downloads PDF
Connections	Bathroom radiators hydraulic connections	Allacciamenti bagno EN	Downloads PDF
Catalogs	Color chart	Color chart	Downloads PDF
User manual	FOISTR1009M	FOISTR1009M	Downloads PDF
User manual	FOISTR1033M	FOISTR1033M	Downloads PDF
User manual	FOISTR308M	FOISTR308M	Downloads PDF
Installation Manual	FOISTR0248M	FOISTR0248M	Downloads PDF
Installation Manual	FOISTR0555M	FOISTR0555M	Downloads PDF

Type	Description	Document	Downloads
3D Model	NOVO_CULT	NOVO_CULT

Calculate the power

How to choose the Novo Cult radiator for your home? How to know what is the right power to heat each room? Online thermal requirement allows you to identify the most suitable radiator for your living space
