Rigo

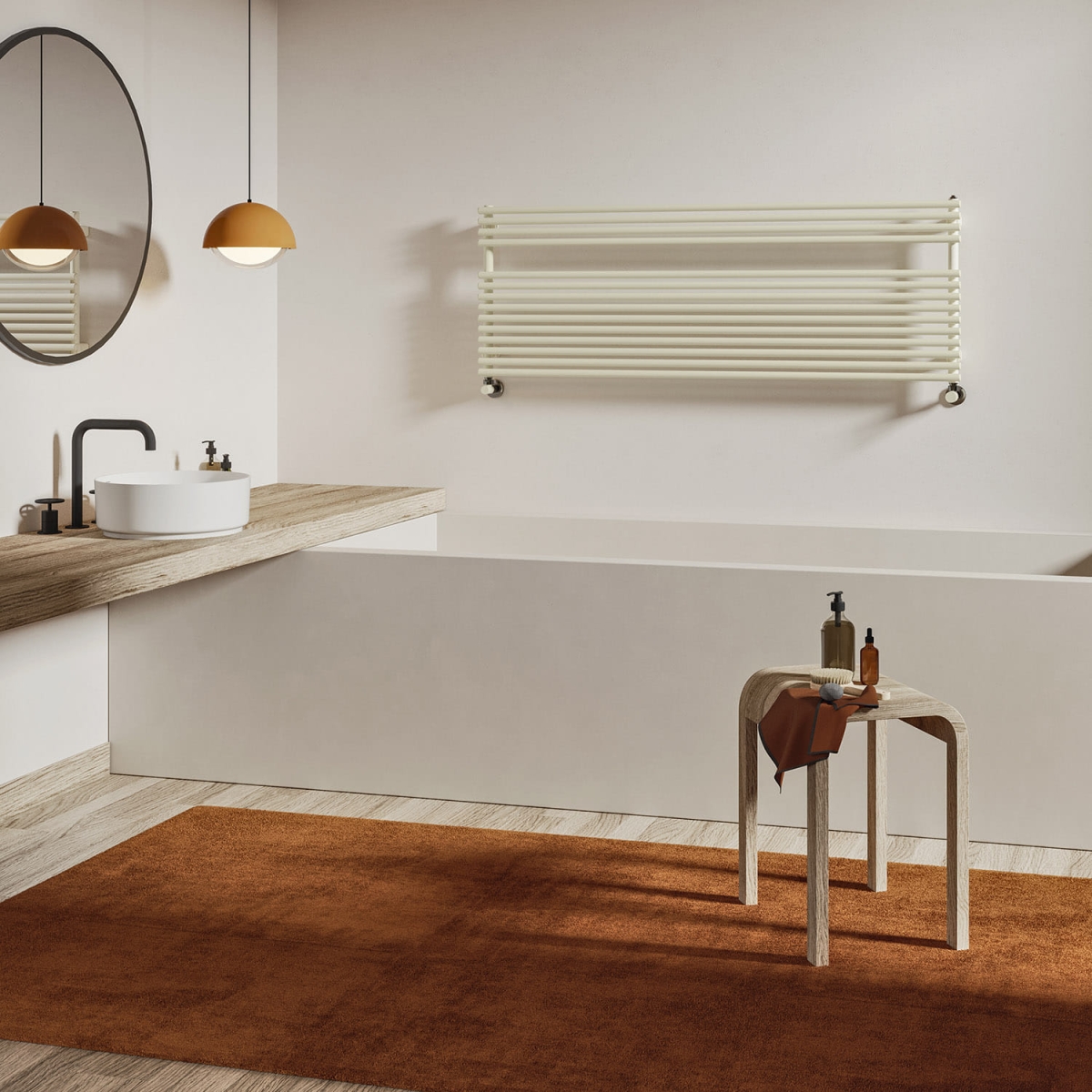

RIGO is a steel radiator with simple lines that avoid cliché. Proportion, elegance, and style all characterize RIGO and make insertion particularly appropriate in the bathroom or kitchen. The dimensions and shapes provide response to extremely precise requirements in terms of space with extra attention dedicated to proportion.
The images on this page have the sole purpose of depicting the product. Finishes and models may not have a perfect match with the actual product.
Configure your Rigo
Configure your Rigo
-
Thermal power
Discover accessories
Loading...
Construction features
- steel towel warmer
- 23 mm diameter horizontal round bar heating elements, projection welded on 30 mm manifold
- threading at the ends of the manifold, first lower pipe, right Gas 1/2”
- maximum working pressure 8 bar
- maximum working temperature 95°C
| Model | Depth (mm) | Height (mm) | Width (mm) | Conn. centre (mm) | Weight (kg) | Capacity (lt) |
|
Exponent | Mixed Function (Watts) |
|---|---|---|---|---|---|---|---|---|---|
| 373 9 rails 1 espace | 50,0 | 373 | 520 | 470 | 4,40 | 1,80 | 777,9 196,1 228,0 176,5 126,9 79,7 | 1,147 | - |
| 373 9 rails 1 espace | 50,0 | 373 | 1220 | 1170 | 8,60 | 3,90 | 1.835,7 462,7 538,0 412,4 292,8 180,7 | 1,191 | - |
| 373 9 rails 1 espace | 50,0 | 373 | 1520 | 1470 | 10,40 | 4,80 | 2.289,5 577,1 671,0 512,2 361,7 221,4 | 1,210 | - |
| 543 14 rails 1 espace | 50,0 | 543 | 520 | 470 | 6,40 | 2,70 | 1.095,3 276,1 321,0 248,6 178,8 112,3 | 1,146 | - |
| 543 14 rails 1 espace | 50,0 | 543 | 1220 | 1170 | 13,75 | 6,06 | 2.736,4 689,7 802,0 615,0 436,7 269,5 | 1,190 | 300 |
| 543 14 rails 1 espace | 50,0 | 543 | 1520 | 1470 | 16,90 | 7,50 | 3.439,3 866,9 1.008,0 769,7 543,6 332,9 | 1,209 | 400 |
| 985 25 rails 2 espaces | 50,0 | 985 | 520 | 470 | 11,20 | 5,00 | 2.030,1 511,7 595,0 458,6 327,8 204,2 | 1,167 | 700 |
| 985 25 rails 2 espaces | 50,0 | 985 | 1220 | 1170 | 23,80 | 9,76 | 4.838,2 1.219,5 1.418,0 1.087,3 772,1 476,6 | 1,190 | 1000 |
| 985 25 rails 2 espaces | 50,0 | 985 | 1520 | 1470 | 29,20 | 11,80 | 6.042,7 1.523,1 1.771,0 1.355,0 959,4 589,8 | 1,200 | 1000 |
Thanks to the high performance of Irsap RIGO radiators, the ideal Δt for low temperature projects is Δt at 30°C.
For Δt different from 50°C use the formula Q=Qn (Δt / 50)n
Standard equipment
- 4 CHELA connections for manifold 30 mm diameter
- 1/2" air vent
| Type | Description | Document | Downloads |
|---|---|---|---|
|
Technical document |
|||
|
Catalogs |
Catalog 2023 | Catalog 2023 | |
|
Connections |
Bathroom radiators hydraulic connections | Allacciamenti bagno EN | |
|
Catalogs |
Color chart | Color chart | |
|
User manual |
FOISTR1009M | FOISTR1009M | |
|
User manual |
FOISTR0308M | FOISTR0308M | |
|
User manual |
FOISTR1033M | FOISTR1033M | |
|
Installation Manual |
FOISTR0632M | FOISTR0632M |
| Type | Description | Document | Downloads |
|---|---|---|---|
|
3D Model |
RIGO | RIGO |
|
Calculate the power
How to choose the Rigo radiator for your home? How to know what is the right power to heat each room? Online thermal requirement allows you to identify the most suitable radiator for your living space
