Soul_S Electric

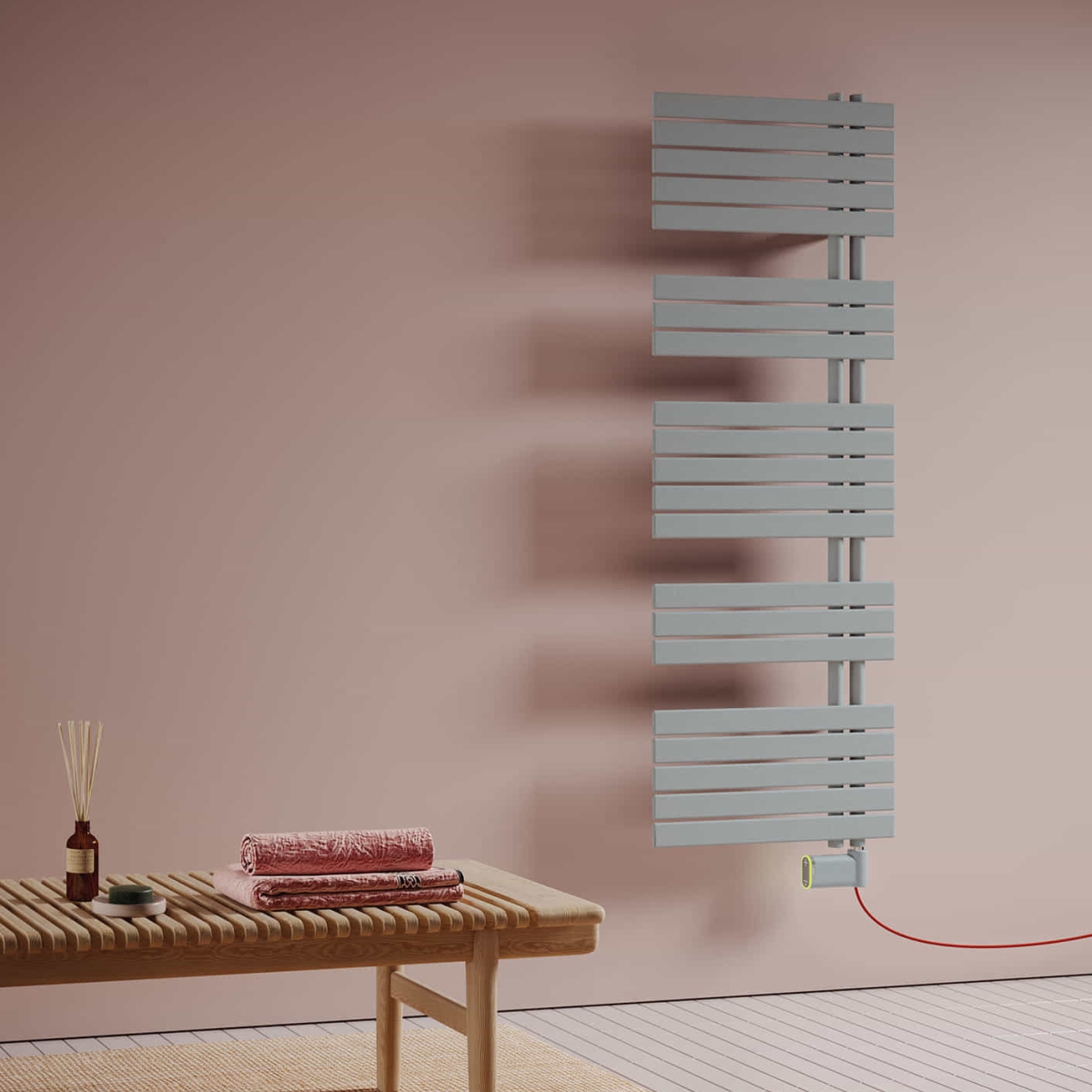

SOUL_S Electric is an electric steel bathroom towel radiator. Available in 3 heights and in the width of 550 mm.
The images on this page have the sole purpose of depicting the product. Finishes and models may not have a perfect match with the actual product.
Calculate the power
How to choose the Soul_S Electric radiator for your home? How to know what is the right power to heat each room? Online heat demand allows you to identify the most suitable radiator for your living space
MOD_CALCULATOR_PRODUCT_STEPS_ELECTRIC_POWER_TITLE
Configure your Soul_S Electric
Configure your Soul_S Electric
-
Electric power
Construction features
- electric steel towel warmer radiator
- horizontal elements featuring rectangular 50x10 mm section tubes
- side round manifolds with a 30 mm diameter
- complete with thermal liquid
- power cable, lenght 1200 mm, SCHUKO plug
| Model | Depth (mm) | Height (mm) | Width (mm) | Weight (kg) | Electric Power (Watt) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DX | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

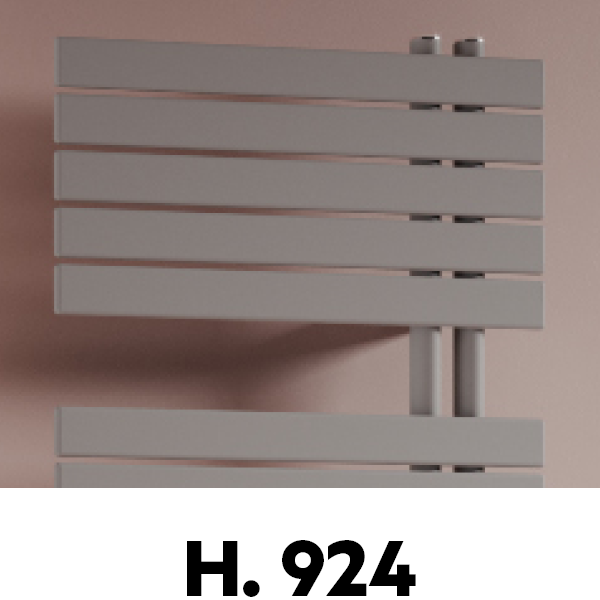

| 924 13 rails 2 espaces | 38,0 | 924 | 550 | 13,05 | 400 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

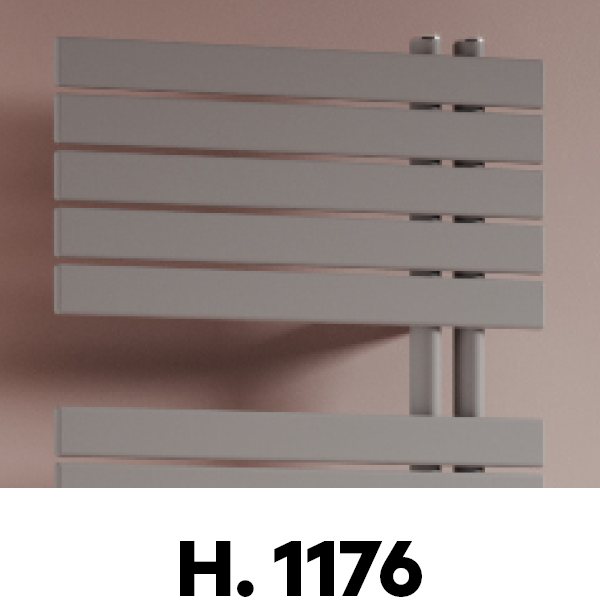

| 1176 16 rails 3 espaces | 38,0 | 1176 | 550 | 15,99 | 500 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

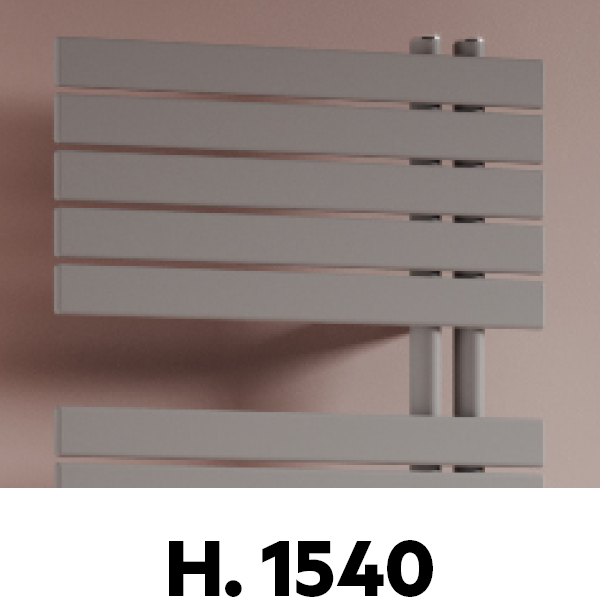

| 1540 21 rails 4 espaces | 38,0 | 1540 | 550 | 20,70 | 750 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

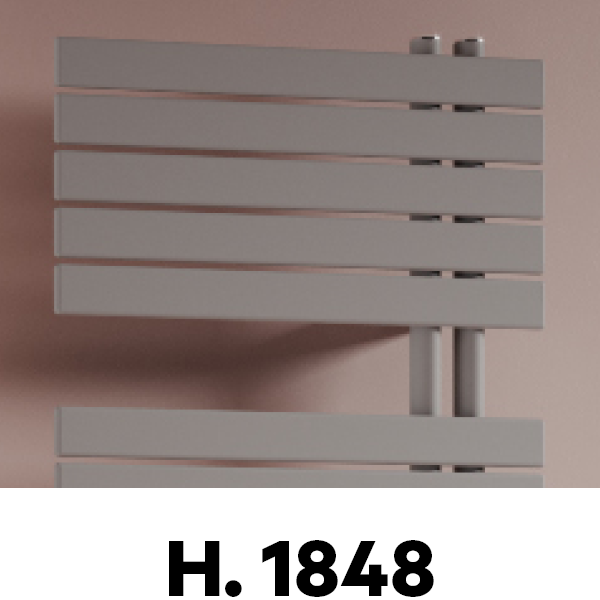

| 1848 28 rails 3 espaces | 38,0 | 1848 | 550 | 27,03 | 1000 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
The radiator will be supplied with the resistance always mounted on the inner collector.
Standard equipment
- 4 adjustable wall fixing brackets in the same color of the radiator
