Tesi 5

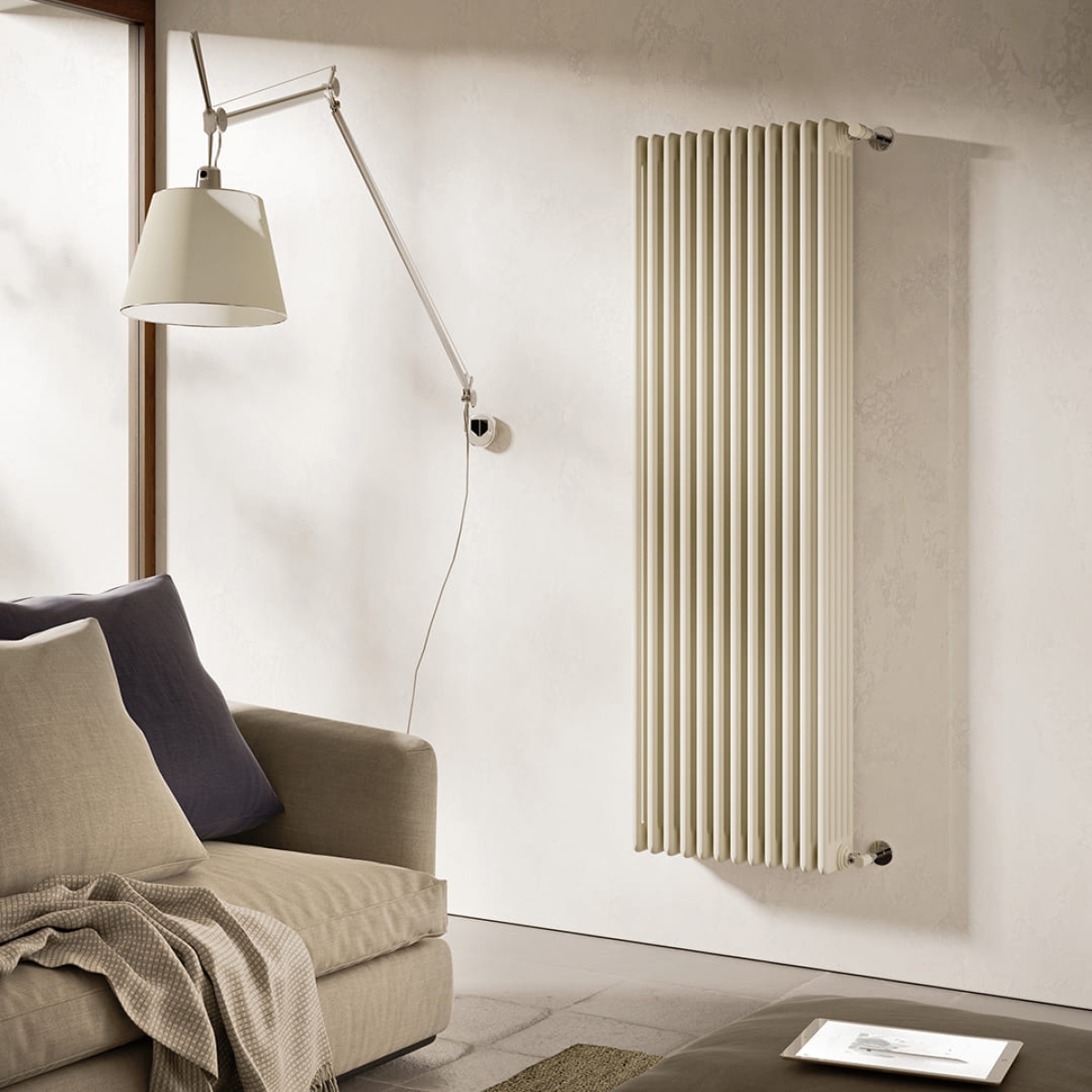

The TESI radiators represent the most functional, modular and elegant system for heating all environments. Thanks to the five columns and high performance, TESI 5 is suitable for environments that require high caloric power. TESI 5 has a depth of 177 mm and heights from 200 to 2500 mm.
The images on this page have the sole purpose of depicting the product. Finishes and models may not have a perfect match with the actual product.
Configure your TESI
Configure your TESI
-
Thermal power
Discover accessories
Construction features
- tubes made of 25 mm diameter sheet steel
- manifolds made of pressed sheet steel
- elements 45 mm long (element pitch)
- threading 1”1/4 G right and left on top and bottom manifold
- maximum working pressure 10 bar
- maximum working temperature 95°C
Model | Depth (mm) | Height (mm) | Conn. centre (mm) | Weight (kg) | Capacity (lt) |
|
Exponent |
---|---|---|---|---|---|---|---|
200 | 177,0 | 200 | 127 | 0,81 | 0,73 | 93,0 27,2 31,7 23,4 15,9 9,2 | 1,350 |
300 | 177,0 | 300 | 235 | 1,13 | 0,95 | 150,8 44,2 51,4 38,7 26,8 16,0 | 1,276 |
350 | 177,0 | 350 | 285 | 1,28 | 1,05 | 173,2 50,8 59,0 44,3 30,6 18,2 | 1,283 |
365 | 177,0 | 365 | 300 | 1,32 | 1,08 | 179,8 52,7 61,3 46,0 31,8 18,9 | 1,286 |
400 | 177,0 | 400 | 335 | 1,43 | 1,16 | 195,2 57,2 66,5 49,9 34,4 20,4 | 1,291 |
450 | 177,0 | 450 | 385 | 1,58 | 1,26 | 217,1 63,6 74,0 55,4 38,1 22,5 | 1,299 |
500 | 177,0 | 500 | 435 | 1,72 | 1,36 | 238,7 70,0 81,3 60,8 41,7 24,6 | 1,307 |
535 | 177,0 | 535 | 470 | 1,83 | 1,44 | 253,7 74,4 86,5 64,5 44,2 26,0 | 1,312 |
550 | 177,0 | 550 | 485 | 1,87 | 1,47 | 260,1 76,2 88,7 66,1 45,3 26,6 | 1,315 |
565 | 177,0 | 565 | 500 | 1,92 | 1,50 | 266,5 78,1 90,8 67,7 46,4 27,2 | 1,317 |
600 | 177,0 | 600 | 535 | 2,02 | 1,57 | 281,4 82,5 95,9 71,4 48,8 28,5 | 1,322 |
650 | 177,0 | 650 | 585 | 2,17 | 1,68 | 302,5 88,7 103,1 76,6 52,3 30,5 | 1,330 |
665 | 177,0 | 665 | 600 | 2,21 | 1,71 | 308,8 90,5 105,2 78,2 53,3 31,0 | 1,333 |
685 | 177,0 | 685 | 620 | 2,27 | 1,75 | 317,2 93,0 108,1 80,2 54,6 31,8 | 1,336 |
750 | 177,0 | 750 | 685 | 2,46 | 1,88 | 344,3 100,9 117,4 86,9 59,0 34,2 | 1,346 |
765 | 177,0 | 765 | 700 | 2,51 | 1,92 | 350,6 102,8 119,5 88,4 60,0 34,7 | 1,348 |
815 | 177,0 | 815 | 750 | 2,66 | 2,02 | 371,3 108,8 126,5 93,5 63,3 36,5 | 1,356 |
865 | 177,0 | 865 | 800 | 2,80 | 2,12 | 391,9 114,9 133,6 98,5 66,6 38,3 | 1,364 |
885 | 177,0 | 885 | 820 | 2,86 | 2,16 | 400,2 117,3 136,4 100,5 67,8 39,0 | 1,367 |
900 | 177,0 | 900 | 835 | 2,91 | 2,20 | 406,3 119,1 138,5 102,0 68,8 39,5 | 1,369 |
1000 | 177,0 | 1000 | 935 | 3,20 | 2,40 | 447,2 131,1 152,4 112,4 75,9 43,7 | 1,364 |
1200 | 177,0 | 1200 | 1135 | 4,08 | 2,78 | 528,2 154,8 180,0 133,1 90,2 52,1 | 1,353 |
1500 | 177,0 | 1500 | 1435 | 5,05 | 3,40 | 648,0 189,9 220,9 163,9 111,6 64,9 | 1,337 |
1800 | 177,0 | 1800 | 1735 | 6,02 | 4,01 | 766,6 224,7 261,3 194,3 132,6 77,4 | 1,327 |
2000 | 177,0 | 2000 | 1935 | 6,67 | 4,42 | 845,1 247,7 288,0 214,4 146,5 85,7 | 1,323 |
2200 | 177,0 | 2200 | 2135 | 7,32 | 4,82 | 923,3 270,6 314,7 234,4 160,4 93,9 | 1,320 |
2500 | 177,0 | 2500 | 2435 | 8,29 | 5,44 | 1.040,2 304,9 354,5 264,4 181,2 106,4 | 1,314 |
(*) Thanks to the high performance of Irsap TESI 5 radiators, the ideal Δt for low temperature projects is Δt at 30°C.
For Δt different from 50°C use the formula: Q=Qn (Δt / 50)n
Standard equipment
- 4 universal brakets for TESI (except for very small batteries)
- 4 connections with reductions 1 “1/4 to 1/2” for TESI white and colored, mounted on the radiator
- 1 1/2” air vent
- 1 cover for 1/2” blind plug
L Length (mm) | E N° Elem. | 200 | 300 | 350 | 365 | 400 | 450 | 500 | 535 | 550 | 565 | 600 | 650 | 665 | 685 | 750 | 765 | 815 | 865 | 885 | 900 | 1000 | 1200 | 1500 | 1800 | 2000 | 2200 | 2500 | |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
90 | 2 | Watt = W = | 63 | 103 | 118 | 123 | 133 | 148 | 163 | 173 | 177 | 182 | 192 | 206 | 210 | 216 | 235 | 239 | 253 | 267 | 273 | 277 | 305 | 360 | 442 | 523 | 576 | 629 | 709 |
135 | 3 | Watt = W = | 95 | 154 | 177 | 184 | 200 | 222 | 244 | 259 | 266 | 272 | 288 | 309 | 316 | 324 | 352 | 358 | 380 | 401 | 409 | 415 | 457 | 540 | 663 | 784 | 864 | 944 | 1063 |
180 | 4 | Watt = W = | 127 | 206 | 236 | 245 | 266 | 296 | 325 | 346 | 355 | 363 | 384 | 412 | 421 | 432 | 469 | 478 | 506 | 534 | 546 | 554 | 610 | 720 | 883 | 1045 | 1152 | 1259 | 1418 |
225 | 5 | Watt = W = | 158 | 257 | 295 | 306 | 333 | 370 | 407 | 432 | 443 | 454 | 479 | 515 | 526 | 541 | 587 | 597 | 633 | 668 | 682 | 692 | 762 | 900 | 1104 | 1306 | 1440 | 1573 | 1772 |
270 | 6 | Watt = W = | 190 | 308 | 354 | 368 | 399 | 444 | 488 | 519 | 532 | 545 | 575 | 619 | 631 | 649 | 704 | 717 | 759 | 801 | 818 | 831 | 914 | 1080 | 1325 | 1568 | 1728 | 1888 | 2127 |
315 | 7 | Watt = W = | 222 | 360 | 413 | 429 | 466 | 518 | 569 | 605 | 621 | 636 | 671 | 722 | 737 | 757 | 821 | 836 | 886 | 935 | 955 | 969 | 1067 | 1260 | 1546 | 1829 | 2016 | 2203 | 2481 |
360 | 8 | Watt = W = | 253 | 411 | 472 | 490 | 532 | 592 | 651 | 692 | 709 | 727 | 767 | 825 | 842 | 865 | 939 | 956 | 1012 | 1069 | 1091 | 1108 | 1219 | 1440 | 1767 | 2090 | 2304 | 2517 | 2836 |
405 | 9 | Watt = W = | 285 | 463 | 531 | 552 | 599 | 666 | 732 | 778 | 798 | 817 | 863 | 928 | 947 | 973 | 1056 | 1075 | 1139 | 1202 | 1227 | 1246 | 1372 | 1620 | 1988 | 2351 | 2592 | 2832 | 3190 |
450 | 10 | Watt = W = | 317 | 514 | 590 | 613 | 665 | 740 | 813 | 865 | 887 | 908 | 959 | 1031 | 1052 | 1081 | 1174 | 1195 | 1265 | 1336 | 1364 | 1385 | 1524 | 1800 | 2209 | 2613 | 2880 | 3147 | 3545 |
495 | 11 | Watt = W = | 348 | 565 | 649 | 674 | 732 | 814 | 895 | 951 | 975 | 999 | 1055 | 1134 | 1158 | 1189 | 1291 | 1314 | 1392 | 1469 | 1500 | 1523 | 1677 | 1980 | 2429 | 2874 | 3168 | 3461 | 3899 |
540 | 12 | Watt = W = | 380 | 617 | 708 | 735 | 798 | 888 | 976 | 1038 | 1064 | 1090 | 1151 | 1237 | 1263 | 1297 | 1408 | 1434 | 1518 | 1603 | 1637 | 1662 | 1829 | 2160 | 2650 | 3135 | 3456 | 3776 | 4254 |
585 | 13 | Watt = W = | 412 | 668 | 767 | 797 | 865 | 962 | 1057 | 1124 | 1152 | 1181 | 1247 | 1340 | 1368 | 1405 | 1526 | 1553 | 1645 | 1736 | 1773 | 1800 | 1981 | 2340 | 2871 | 3396 | 3744 | - | - |
630 | 14 | Watt = W = | 444 | 720 | 826 | 858 | 932 | 1036 | 1139 | 1210 | 1241 | 1272 | 1342 | 1443 | 1473 | 1513 | 1643 | 1673 | 1772 | 1870 | 1909 | 1939 | 2134 | 2520 | 3092 | 3658 | 4032 | - | - |
675 | 15 | Watt = W = | 475 | 771 | 885 | 919 | 998 | 1110 | 1220 | 1297 | 1330 | 1362 | 1438 | 1546 | 1579 | 1622 | 1760 | 1792 | 1898 | 2004 | 2046 | 2077 | 2286 | 2700 | 3313 | 3919 | 4320 | - | - |
720 | 16 | Watt = W = | 507 | 822 | 944 | 980 | 1065 | 1184 | 1301 | 1383 | 1418 | 1453 | 1534 | 1649 | 1684 | 1730 | 1878 | 1912 | 2025 | 2137 | 2182 | 2216 | 2439 | 2880 | - | - | - | - | - |
765 | 17 | Watt = W = | 539 | 874 | 1003 | 1042 | 1131 | 1258 | 1383 | 1470 | 1507 | 1544 | 1630 | 1753 | 1789 | 1838 | 1995 | 2031 | 2151 | 2271 | 2318 | 2354 | 2591 | 3060 | - | - | - | - | - |
810 | 18 | Watt = W = | 570 | 925 | 1062 | 1103 | 1198 | 1332 | 1464 | 1556 | 1596 | 1635 | 1726 | 1856 | 1894 | 1946 | 2112 | 2151 | 2278 | 2404 | 2455 | 2493 | 2743 | 3240 | - | - | - | - | - |
855 | 19 | Watt = W = | 602 | 977 | 1121 | 1164 | 1264 | 1406 | 1545 | 1643 | 1684 | 1726 | 1822 | 1959 | 2000 | 2054 | 2230 | 2270 | 2404 | 2538 | 2591 | 2631 | 2896 | - | - | - | - | - | - |
900 | 20 | Watt = W = | 634 | 1028 | 1180 | 1226 | 1331 | 1480 | 1627 | 1729 | 1773 | 1817 | 1918 | 2062 | 2105 | 2162 | 2347 | 2390 | 2531 | 2671 | 2728 | 2770 | 3048 | - | - | - | - | - | - |
945 | 21 | Watt = W = | 665 | 1079 | 1239 | 1287 | 1397 | 1554 | 1708 | 1816 | 1862 | 1907 | 2014 | 2165 | 2210 | 2270 | 2464 | 2509 | 2657 | 2805 | 2864 | 2908 | 3201 | - | - | - | - | - | - |
990 | 22 | Watt = W = | 697 | 1131 | 1298 | 1348 | 1464 | 1628 | 1789 | 1902 | 1950 | 1998 | 2110 | 2268 | 2315 | 2378 | 2582 | 2629 | 2784 | 2939 | 3000 | 3047 | 3353 | - | - | - | - | - | - |
1035 | 23 | Watt = W = | 729 | 1182 | 1357 | 1409 | 1530 | 1702 | 1871 | 1989 | 2039 | 2089 | 2205 | 2371 | 2421 | 2486 | 2699 | 2748 | 2910 | 3072 | 3137 | 3185 | 3505 | - | - | - | - | - | - |
1080 | 24 | Watt = W = | 760 | 1234 | 1416 | 1471 | 1597 | 1776 | 1952 | 2075 | 2128 | 2180 | 2301 | 2474 | 2526 | 2594 | 2816 | 2868 | 3037 | 3206 | 3273 | 3324 | 3658 | - | - | - | - | - | - |
1125 | 25 | Watt = W = | 792 | 1285 | 1476 | 1532 | 1664 | 1850 | 2034 | 2162 | 2216 | 2271 | 2397 | 2577 | 2631 | 2703 | 2934 | 2987 | 3164 | 3339 | 3410 | 3462 | 3810 | - | - | - | - | - | - |
1170 | 26 | Watt = W = | 824 | 1336 | 1535 | 1593 | 1730 | 1923 | 2115 | 2248 | 2305 | 2362 | 2493 | 2680 | 2736 | 2811 | 3051 | 3106 | 3290 | 3473 | 3546 | 3600 | 3963 | - | - | - | - | - | - |
1215 | 27 | Watt = W = | 855 | 1388 | 1594 | 1655 | 1797 | 1997 | 2196 | 2334 | 2394 | 2452 | 2589 | 2783 | 2841 | 2919 | 3168 | 3226 | 3417 | 3606 | 3682 | 3739 | 4115 | - | - | - | - | - | - |
1260 | 28 | Watt = W = | 887 | 1439 | 1653 | 1716 | 1863 | 2071 | 2278 | 2421 | 2482 | 2543 | 2685 | 2887 | 2947 | 3027 | 3286 | 3345 | 3543 | 3740 | 3819 | 3877 | 4267 | - | - | - | - | - | - |
1305 | 29 | Watt = W = | 919 | 1491 | 1712 | 1777 | 1930 | 2145 | 2359 | 2507 | 2571 | 2634 | 2781 | 2990 | 3052 | 3135 | 3403 | 3465 | 3670 | 3874 | 3955 | 4016 | 4420 | - | - | - | - | - | - |
1350 | 30 | Watt = W = | 950 | 1542 | 1771 | 1838 | 1996 | 2219 | 2440 | 2594 | 2660 | 2725 | 2877 | 3093 | 3157 | 3243 | 3521 | 3584 | 3796 | 4007 | 4091 | 4154 | 4572 | - | - | - | - | - | - |
1395 | 31 | Watt = W = | 982 | 1593 | 1830 | 1900 | 2063 | 2293 | 2522 | 2680 | 2748 | 2816 | 2973 | 3196 | 3262 | 3351 | - | - | - | - | - | - | - | - | - | - | - | - | - |
1440 | 32 | Watt = W = | 1014 | 1645 | 1889 | 1961 | 2129 | 2367 | 2603 | 2767 | 2837 | 2907 | 3068 | 3299 | 3368 | 3459 | - | - | - | - | - | - | - | - | - | - | - | - | - |
1485 | 33 | Watt = W = | 1045 | 1696 | 1948 | 2022 | 2196 | 2441 | 2684 | 2853 | 2925 | 2997 | 3164 | 3402 | 3473 | 3567 | - | - | - | - | - | - | - | - | - | - | - | - | - |
1530 | 34 | Watt = W = | 1077 | 1748 | 2007 | 2084 | 2262 | 2515 | 2766 | 2940 | 3014 | 3088 | 3260 | 3505 | 3578 | 3675 | - | - | - | - | - | - | - | - | - | - | - | - | - |
1575 | 35 | Watt = W = | 1109 | 1799 | 2066 | 2145 | 2329 | 2589 | 2847 | 3026 | 3103 | 3179 | 3356 | 3608 | 3683 | 3784 | - | - | - | - | - | - | - | - | - | - | - | - | - |
1620 | 36 | Watt = W = | 1140 | 1850 | 2125 | 2206 | 2395 | 2663 | 2928 | 3113 | 3191 | 3270 | 3452 | 3711 | 3789 | 3892 | - | - | - | - | - | - | - | - | - | - | - | - | - |
1665 | 37 | Watt = W = | 1172 | 1902 | 2184 | 2267 | 2462 | 2737 | 3010 | 3199 | 3280 | 3361 | 3548 | 3814 | 3894 | 4000 | - | - | - | - | - | - | - | - | - | - | - | - | - |
1710 | 38 | Watt = W = | 1204 | 1953 | 2243 | 2329 | 2529 | 2811 | 3091 | 3285 | 3369 | 3452 | 3644 | 3917 | 3999 | 4108 | - | - | - | - | - | - | - | - | - | - | - | - | - |
1755 | 39 | Watt = W = | 1236 | 2005 | 2302 | 2390 | 2595 | 2885 | 3172 | 3372 | 3457 | 3542 | 3740 | 4021 | 4104 | 4216 | - | - | - | - | - | - | - | - | - | - | - | - | - |
1800 | 40 | Watt = W = | 1267 | 2056 | 2361 | 2451 | 2662 | 2959 | 3254 | 3458 | 3546 | 3633 | 3836 | 4124 | 4210 | 4324 | - | - | - | - | - | - | - | - | - | - | - | - | - |
