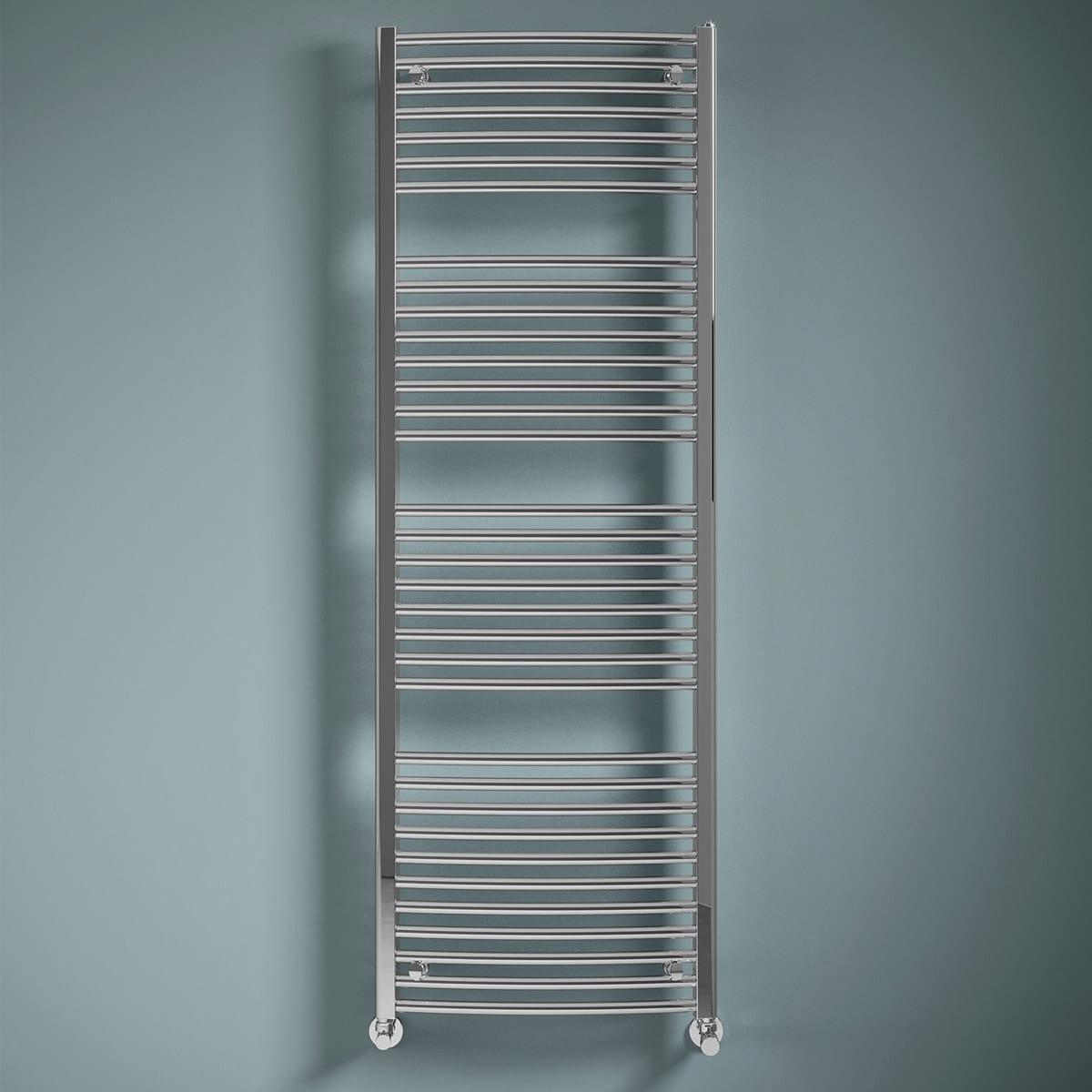

Venus Chrome-plated
The chromed version of VENUS has a strong personality and follows the peculiarities of the modern style. Available in 4 heights and 4 widths, also in the version with 50 mm connections. With the insertion of the electric resistance (optional) it can work even in periods when the system is off.

Configure your Venus Chrome-plated
Configure your Venus Chrome-plated
-
Thermal power
Discover accessories


















Construction features
- steel towel warmer radiator
- horizontal elements featuring round tubes with a 23 mm diameter
- side manifolds with a 40x30 mm semioval section
- manifold threading and central connections (50 mm) 1/2” Gas right
- maximum working pressure 8 bar
- maximum working temperature 95°C

Model | Depth (mm) | Height (mm) | Width (mm) | Conn. centre (mm) | Weight (kg) | Capacity (lt) |
|
Exponent | Mixed Function (Watts) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
01 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
818 15 rails 2 espaces | 43,0 | 818 | 448 | 418 | 4,68 | 3,51 | 746,5 188,2 218,8 164,8 114,4 68,4 | 1,269 | - | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
818 15 rails 2 espaces | 48,0 | 818 | 497 | 467 | 5,04 | 3,77 | 814,8 205,4 238,8 180,0 125,1 74,9 | 1,266 | - | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
818 15 rails 2 espaces | 57,0 | 818 | 595 | 565 | 5,76 | 4,29 | 950,9 239,7 278,7 210,5 146,6 88,0 | 1,258 | 300 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
818 15 rails 2 espaces | 76,0 | 818 | 740 | 710 | 8,86 | 4,80 | 1.155,0 291,1 338,5 256,3 179,0 108,0 | 1,247 | 300 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
1118 22 rails 2 espaces | 43,0 | 1118 | 448 | 418 | 6,63 | 4,99 | 1.076,7 271,4 315,6 238,3 165,9 99,6 | 1,259 | 300 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
1118 22 rails 2 espaces | 48,0 | 1118 | 497 | 467 | 7,16 | 5,38 | 1.181,6 297,8 346,3 261,6 182,3 109,5 | 1,257 | 400 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
1118 22 rails 2 espaces | 57,0 | 1118 | 595 | 565 | 8,22 | 6,13 | 1.391,6 350,7 407,8 308,4 215,1 129,4 | 1,253 | 400 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
1118 22 rails 2 espaces | 76,0 | 1118 | 740 | 710 | 12,77 | 6,88 | 1.706,4 430,1 500,1 378,7 264,6 159,6 | 1,246 | 400 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
1462 28 rails 3 espaces | 43,0 | 1462 | 448 | 418 | 8,50 | 6,43 | 1.372,6 346,0 402,3 304,7 213,0 128,6 | 1,245 | 400 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
1462 28 rails 3 espaces | 48,0 | 1462 | 497 | 467 | 9,18 | 6,92 | 1.508,4 380,2 442,1 334,8 233,9 141,1 | 1,247 | 400 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
1462 28 rails 3 espaces | 57,0 | 1462 | 595 | 565 | 10,52 | 7,88 | 1.780,0 448,7 521,7 394,8 275,6 166,0 | 1,249 | 400 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
1462 28 rails 3 espaces | 76,0 | 1462 | 740 | 710 | 16,31 | 8,83 | 2.187,4 551,4 641,1 484,6 337,9 203,2 | 1,254 | 700 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
1720 34 rails 3 espaces | 43,0 | 1720 | 448 | 418 | 10,18 | 7,70 | 1.669,8 420,9 489,4 370,2 258,3 155,6 | 1,251 | 400 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
1720 34 rails 3 espaces | 48,0 | 1720 | 497 | 467 | 11,00 | 8,29 | 1.837,0 463,0 538,4 407,3 284,3 171,2 | 1,250 | 400 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
1720 34 rails 3 espaces | 57,0 | 1720 | 595 | 565 | 12,62 | 9,47 | 2.171,3 547,3 636,4 481,6 336,3 202,7 | 1,249 | 700 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
1720 34 rails 3 espaces | 76,0 | 1720 | 740 | 710 | 19,66 | 10,62 | 2.672,7 673,7 783,3 593,1 414,4 250,0 | 1,246 | 700 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
05 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
818 15 rails 2 espaces | 43,0 | 818 | 448 | 50 | 4,68 | 3,51 | 746,5 188,2 218,8 164,8 114,4 68,4 | 1,269 | - | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
818 15 rails 2 espaces | 48,0 | 818 | 497 | 50 | 5,04 | 3,77 | 814,8 205,4 238,8 180,0 125,1 74,9 | 1,266 | - | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
818 15 rails 2 espaces | 57,0 | 818 | 595 | 50 | 5,76 | 4,29 | 950,9 239,7 278,7 210,5 146,6 88,0 | 1,258 | 300 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
818 15 rails 2 espaces | 76,0 | 818 | 740 | 50 | 8,86 | 4,80 | 1.155,0 291,1 338,5 256,3 179,0 108,0 | 1,247 | 300 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
1118 22 rails 2 espaces | 43,0 | 1118 | 448 | 50 | 6,63 | 4,99 | 1.076,7 271,4 315,6 238,3 165,9 99,6 | 1,259 | 300 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
1118 22 rails 2 espaces | 48,0 | 1118 | 497 | 50 | 7,16 | 5,38 | 1.181,6 297,8 346,3 261,6 182,3 109,5 | 1,257 | 400 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
1118 22 rails 2 espaces | 57,0 | 1118 | 595 | 50 | 8,22 | 6,13 | 1.391,6 350,7 407,8 308,4 215,1 129,4 | 1,253 | 400 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
1118 22 rails 2 espaces | 76,0 | 1118 | 740 | 50 | 12,77 | 6,88 | 1.706,4 430,1 500,1 378,7 264,6 159,6 | 1,246 | 400 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
1462 28 rails 3 espaces | 43,0 | 1462 | 448 | 50 | 8,50 | 6,43 | 1.372,6 346,0 402,3 304,7 213,0 128,6 | 1,245 | 400 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
1462 28 rails 3 espaces | 48,0 | 1462 | 497 | 50 | 9,18 | 6,92 | 1.508,4 380,2 442,1 334,8 233,9 141,1 | 1,247 | 400 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
1462 28 rails 3 espaces | 57,0 | 1462 | 595 | 50 | 10,52 | 7,88 | 1.780,0 448,7 521,7 394,8 275,6 166,0 | 1,249 | 400 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
1462 28 rails 3 espaces | 76,0 | 1462 | 740 | 50 | 16,31 | 8,83 | 2.187,4 551,4 641,1 484,6 337,9 203,2 | 1,254 | 700 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
1720 34 rails 3 espaces | 43,0 | 1720 | 448 | 50 | 10,18 | 7,70 | 1.669,8 420,9 489,4 370,2 258,3 155,6 | 1,251 | 400 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
1720 34 rails 3 espaces | 48,0 | 1720 | 497 | 50 | 11,00 | 8,29 | 1.837,0 463,0 538,4 407,3 284,3 171,2 | 1,250 | 400 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
1720 34 rails 3 espaces | 57,0 | 1720 | 595 | 50 | 12,62 | 9,47 | 2.171,3 547,3 636,4 481,6 336,3 202,7 | 1,249 | 700 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
1720 34 rails 3 espaces | 76,0 | 1720 | 740 | 50 | 19,66 | 10,62 | 2.672,7 673,7 783,3 593,1 414,4 250,0 | 1,246 | 700 |
Thanks to the high performance of Irsap VENUS CHROME-PLATED radiators, the ideal Δt for low temperature projects is Δt at 30°C.
For Δt different from 50°C use the formula: Q=Qn (Δt / 50)n
Standard equipment
- 4 chrome-plated infratube for wall fixing
- 1/2" chrome-plated air vent
